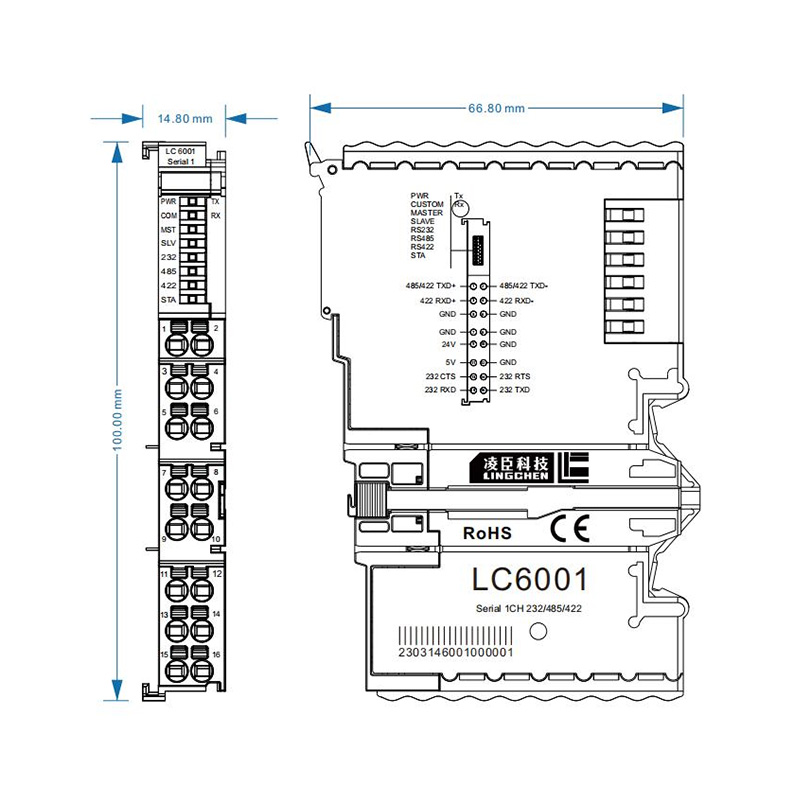

1 Channel Communication Remote I/O module input output module
Parameters
| LC6001 Communication module Electrical parameters | |||
| interface | RS232/RS485/RS422 | Check bit | None/Even/Odd |
| Number of channels | Channel 1 | Stop bit | 1bit/2bit |
| protocol | Modbus RTU/ASCII master and slave modes; Free protocol protocol mode |
Maximum data frame length | 40 byte |
| Baud Rate | 2400bps - 512000bps | External sensor power supply 1 | 5V/500mA |
| Data bit | 7bit/8bit | External sensor power supply 2 | 24V/500mA |
