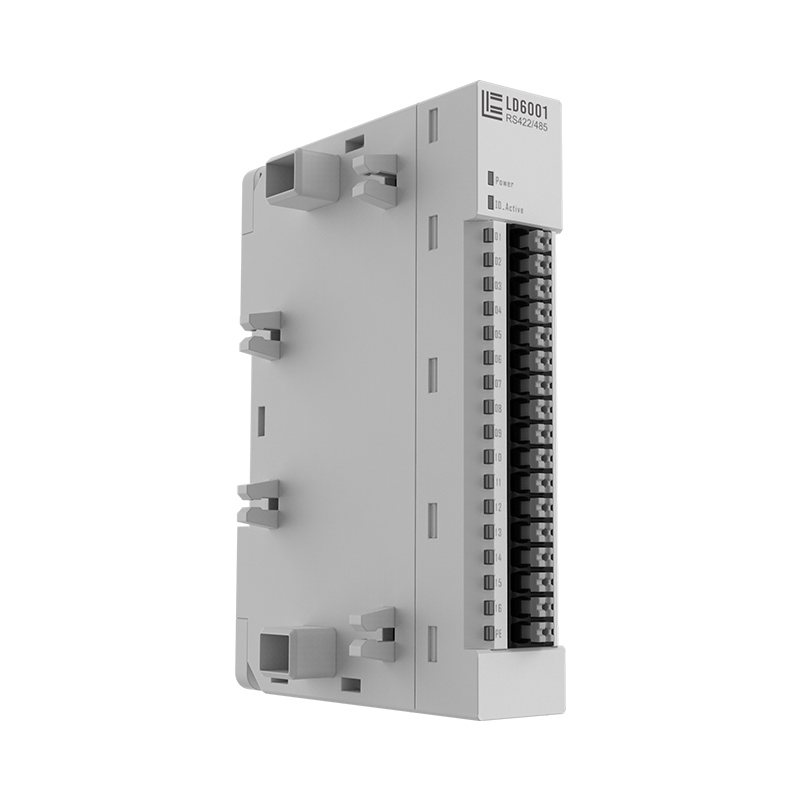

1 Channel Free Agreement Counter Communication IO Module
Specification parameters
| LD6001 1-Channel RS232/485/422 Communication Module Specification | |
| Interface | RS232/RS485/RS422 |
| Number of Channels | 1 channel |
| Protocol | Modbus RTU/ASCII master, slave mode; Free protocol mode |
| Baud Rate | 2400bps - 512000bps |
| Data Bits | 7-bit/8-bit |
| Parity Bit | None/Even/Odd |
| Stop Bits | 1-bit/2-bit |
| Maximum Data Frame Length | 40 bytes |
| External Sensor Power Supply 1 | 5V/500mA |
| External Sensor Power Supply 2 | 24V/500mA |
| Dimensions (H x W x D) | 100mm × 12mm × 69mm |
