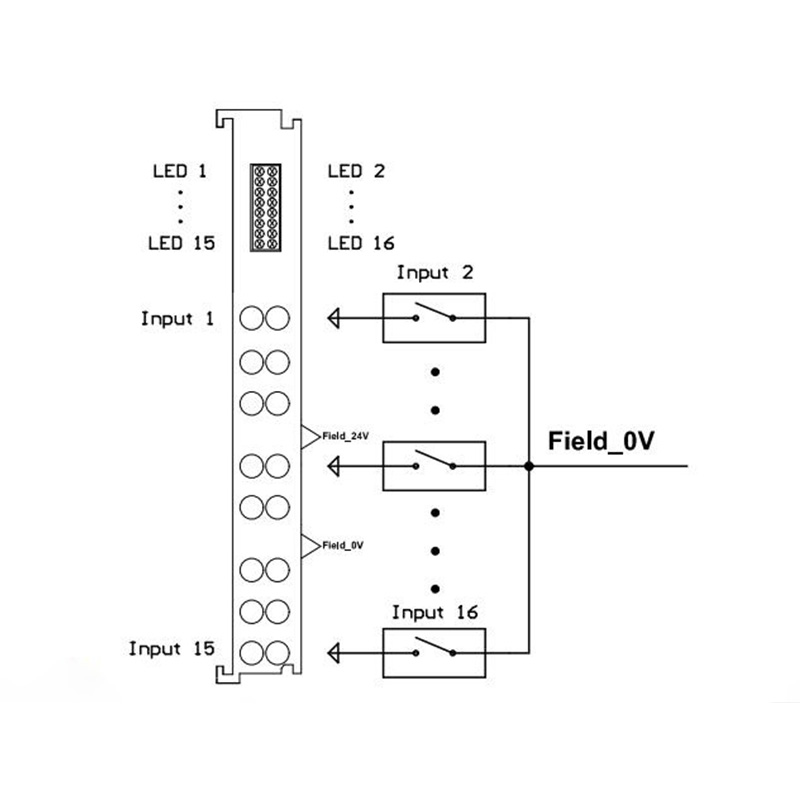

16 channel NPN Digital input io module
Parameters
| LC1486 (NPN type) digital input module Electrical parameters | |||
| Number of input channels | 16 | Input response frequency | 500Hz（Max） |
| Input signal type | NPN | Input filtering | Default 3ms, 0-20ms configurable |
| Input rated voltage | Rated 24V DC (21V~28V DC) | Whether isolated or not | Optocoupler isolation，3750Vrms |
| Signal conduction voltage | ＞15V DC (voltage difference between input terminal and common terminal) | Indicating light | Green LED per channel |
| Signal turn-off voltage | < 5V DC（Voltage difference between input terminal and common terminal） | System side current consumption | 20mA |
| Input impedance | 6.8kΩ | Module failure alarm | support |

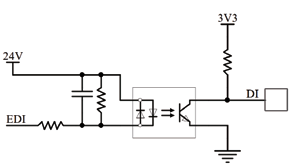

| Typical value of input current | 3.5mA（Typical value at 24 V） | Schematic diagram of input circuit |  |
| Hardware response time ON/FF | 100us/100us(Max) | ||
