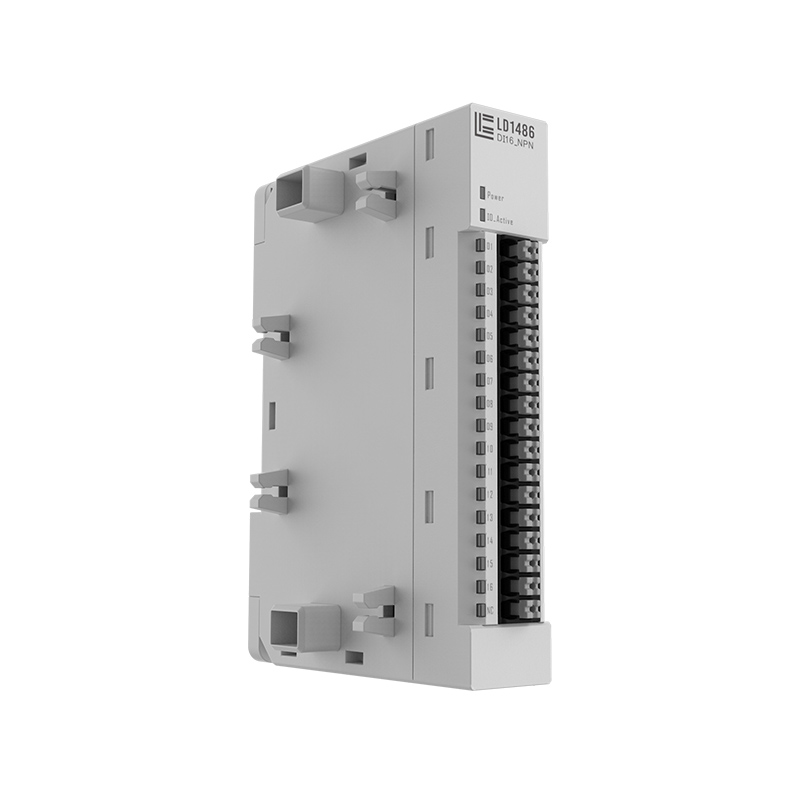

16-Channel NPN Type Digital Input I/o Module
Specification parameters
| LD1486 (NPN Type) Digital Input Module Specifications | |||
| Electrical Parameters | |||
| Number of Input Channels | 16 | Input Response Frequency | 500Hz (Max) |
| Input Signal Type | NPN | Input Filtering | Default 3ms, configurable from 0-20ms |
| Input Rated Voltage | Rated 24V DC (21V~28V DC) | Isolation Status | Optocoupler isolation, 3750Vrms |
| Signal Turn-On Voltage | > 15V DC (Input-to-common voltage difference) | Indicator Lights | 1 green LED per channel |
| Signal Turn-Off Voltage | < 5V DC (Input-to-common voltage difference) | System-Side Current Consumption | 20mA |
| Input Impedance | 6.8kΩ | Module Fault Alarm | Supported |

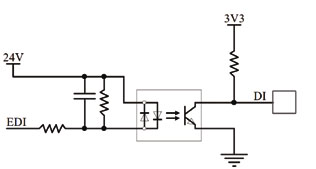

| Typical Input Current | 3.5mA (Typical at 24V) | Input Circuit Diagram |
|
| Hardware Response Time ON/OFF | 100μs/100μs (Max) | ||
