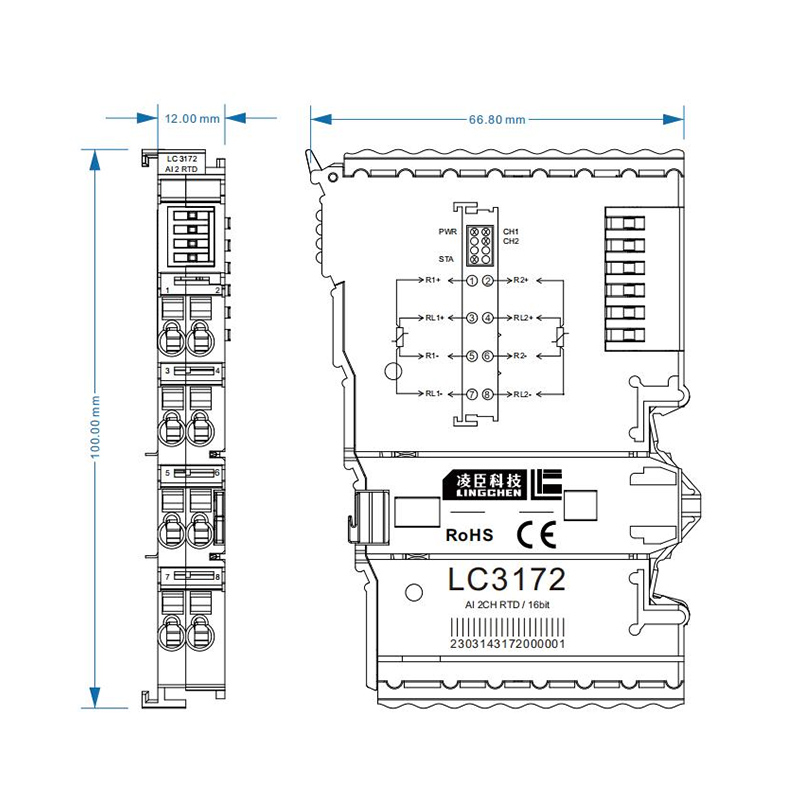

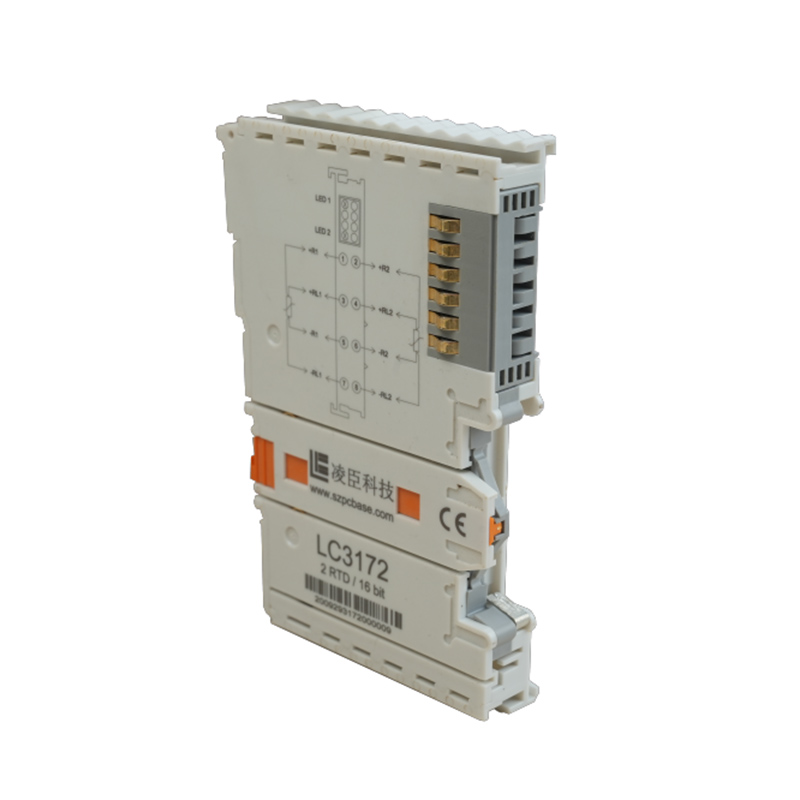

2 Channel RTD sensor input io module
Parameters
| LC3172 RTD sensor input module Electrical parameters | |||
| Number of channels | 2 | Type of sensor | PT100、PT200、PT500、PT1000、Cu10、 Cu50、Cu100、NTC-10K 25...150℃ |
| Connection type | 2-wire/3-wire | ||
| Temperature resolution (temperature measurement) |
0.1 ℃/digit | Broken wire detection | Support |
| Resistance value conversion formula（Measured resistance value) | actual R=D/27648 * rated R Where: actual R is the current resistance value; rated R is the rated range of resistance. " |
System side current consumption | 70mA |
| Reverse circuit protection | Support | ||
| Module failure alarm | Support | ||
| The sampling frequency is configurable | with a default of 5Hz | ||
