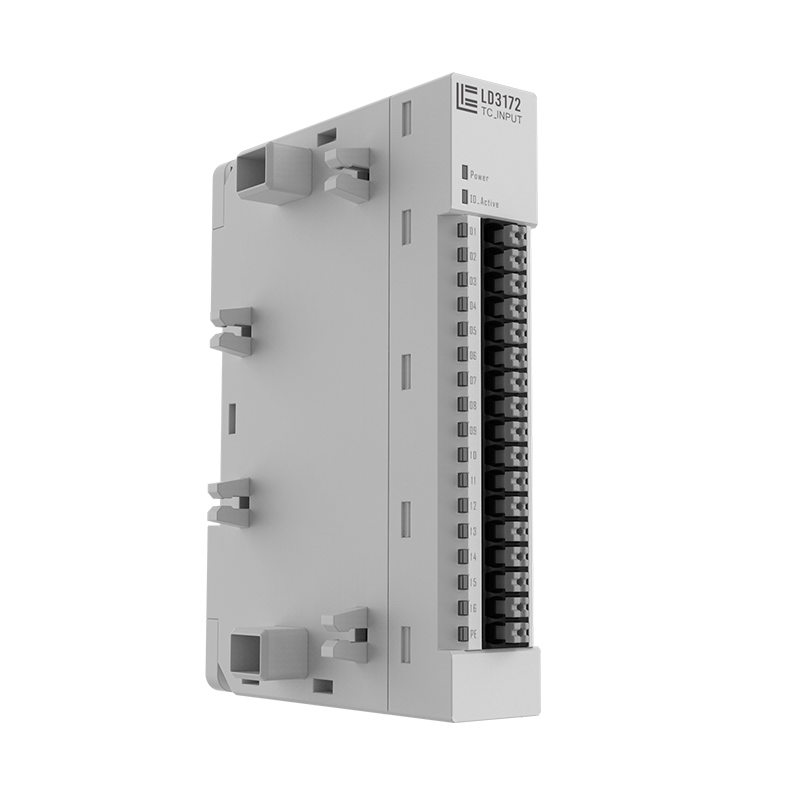

2-Channel Thermoresistor Input And Output IO Module
Specification parameters
| LD3172 Thermoresistive Sensor Input Module Specification | |||
| Electrical Parameters | |||
| Number of Channels | 2 | Sensor Type | PT100、PT200、PT500、PT1000、 Cu10、Cu50、Cu100、 NTC-10K 25...150℃ |
| Connection Type | 2-wire/3-wire | Wire Break Detection | Support |
| Temperature Resolution (Temperature Measurement) |
Temperature value: 0.1°C/digit | System-Side Current Consumption | 70mA |
| Resistance Value Conversion Formula (Resistance Measurement) |
Actual R = D/27648 × Rated R Tip:Actual R is the current resistance value; Rated R is the rated resistance value. |
Reverse Circuit Protection | Support |
| Sampling Frequency | Configurable, default 5Hz | Module Fault Alarm | Support |
