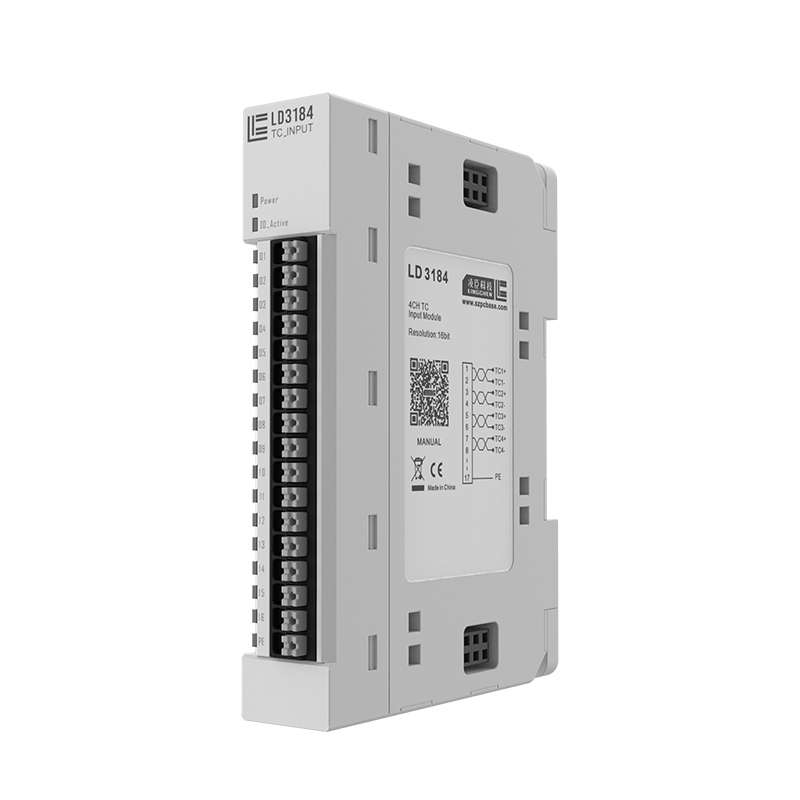

4-Channel 16 Bit Thermocouple I/O Module
Specification parameters
| LD3184 Thermocouple Sensor Input Module Specification | |||
| Electrical Parameters | |||
| Number of Channels | 4 | Sampling Frequency | Configurable, default 0.25 Hz |
| Connection Type | 2-wire system | Sensor Type/Signal Range | K、E、T、J、B、S、R、N |
| Temperature Resolution (Temperature Measurement) |
Temperature resolution: 0.1°C per digit | Wire Break Detection | Support |
| Voltage Conversion Formula (Measuring mV Voltage Values) |
Actual Voltage = D/32767 × Rated Voltage Actual Voltage is the current voltage value; Rated Voltage is the sensor's rated measurement range value. |
System-Side Current Consumption | 70mA |
| Reverse Circuit Protection | Support | ||
| Module Fault Alarm | Support | ||
