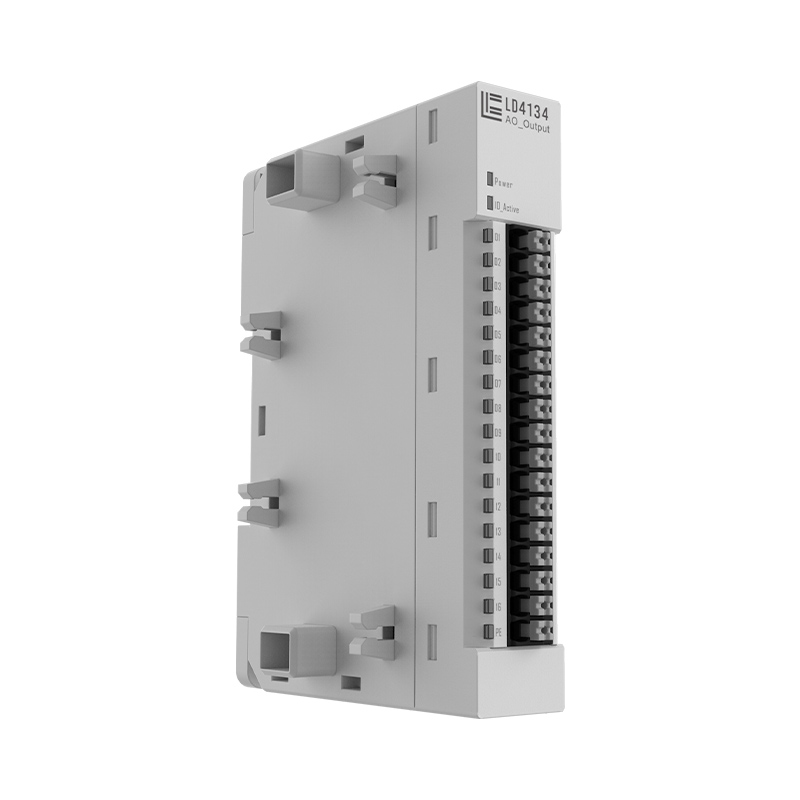

4-Channel 16 bit Voltage Output IO Module
Specification parameters
| LD4134 Voltage Output Module Specifications | |||
| Electrical Parameters | |||
| Number of Channels | 4 | Resolution/Accuracy | 16bit/0.1% |
| Signal Range | ±10V | Load Type | Resistive load/Capacitive load |
| Signal Type | Differential/Single-ended | System-Side Current Consumption | 200mA |
| Connection Type | 2-wire | Reverse Circuit Protection | Supported |
| Load capacity | >5KΩ | Module Fault Alarm | Supported |
