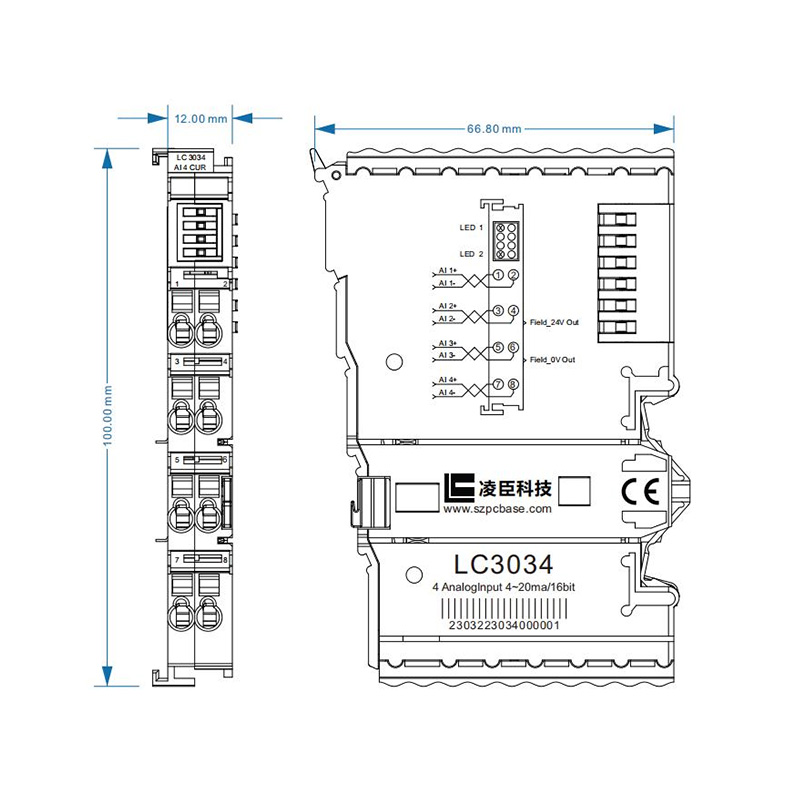

4 Channel current input module input and output
Parameters
| LC3034 Current input module Electrical parameters | |||
| Number of channels | 4 | Resolution/Accuracy | 16bit/0.2% |
| Signal range | 4-20mA | sampling frequency | 300Hz |
| Signal type | Differential/single-ended | System side current consumption | 220mA |
| line type | 2-WIRE SYSTEM | Reverse circuit protection | support |
| Input impedance | 100Ω | Module failure alarm | support |
