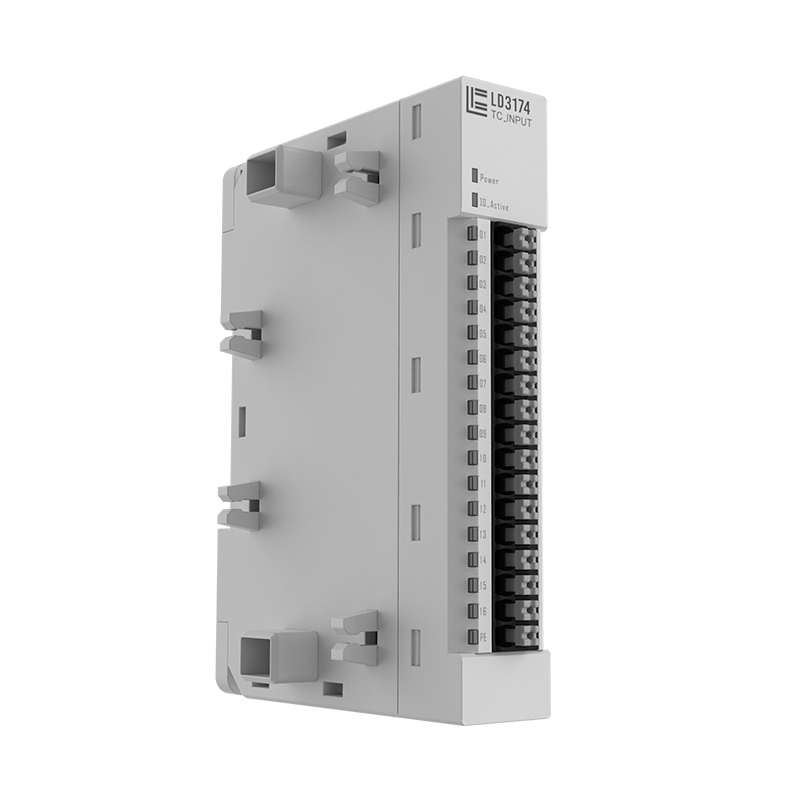

4-Channel Thermoresistor Modbus Ethercat Remote IO Module
Specification parameters
| LD3174 Thermoresistive Sensor Input Module Specification | |||
| Electrical Parameters | |||
| Number of Channels | 4 | Sensor Type | PT100、PT200、PT500、PT1000、 Cu10、Cu50、Cu100、 NTC-10K 25...150℃ |
| Connection Type | 2-wire/3-wire | Wire Break Detection | Support |
| Temperature Resolution (Temperature Measurement) |
Temperature value: 0.1°C/digit | System-Side Current Consumption | 70mA |
| Resistance Value Conversion Formula (Resistance Measurement) |
Actual R = D/27648 × Rated R Tip:Actual R is the current resistance value; Rated R is the rated resistance value. |
Reverse Circuit Protection | Support |
| Sampling Frequency | Configurable, default 5Hz | Module Fault Alarm | Support |
Who is Lingchen? Can I trust a new supplier?
Suzhou Lingchen acquisition computer Co. LTD was established in 2006 and is located in suzhou city jiangsu provinceChina,enjoying convenient transportation and beautiful environment. Our company covers an area of 25000 square meters and has 420 employees. Our main products include industrial computer, PLC,Motion control card,remote lO,linear motor.Besides, we are making great efforts to develop new products to meet different requirements. In order to provide customers with satisfactory products and services, we have established a modern quality management system according to international standards.Our company has oscilloscope,high and low temperature test chamber.Motion control test bench equipment to strictly control the product quality.
