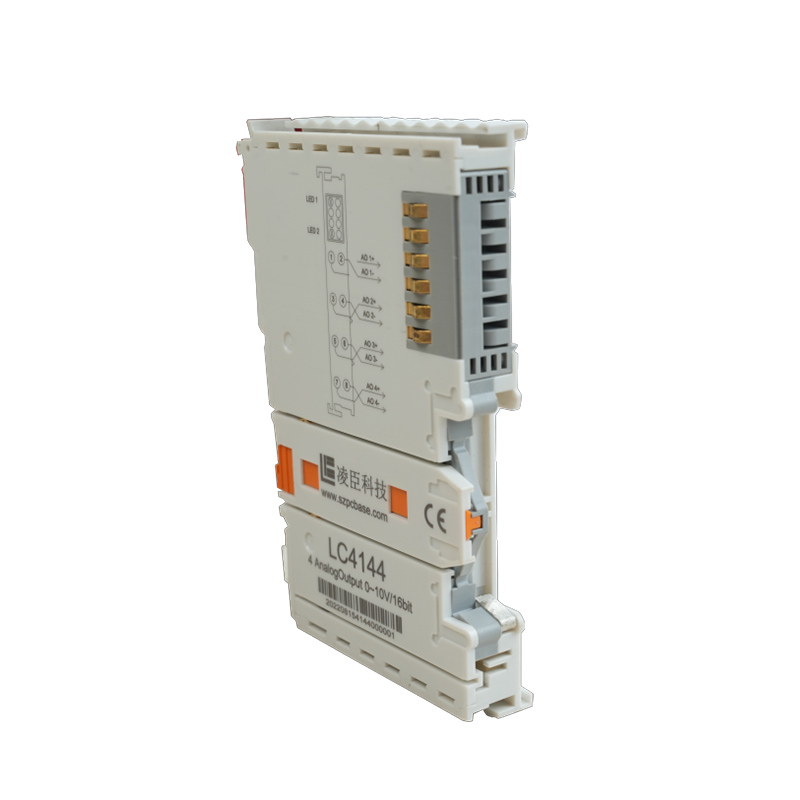

4 Channel Voltage output ethercat io module
Parameters
| LC4144 Voltage output module Electrical parameters | |||
| Number of channels | 4 | Resolution/Accuracy | 16bit/0.1% |
| Signal range | 0-10V | Load Type | Resistive load/Capacitive load |
| Signal type | Differential/single-ended | System side current consumption | 200mA |
| line type | 2-WIRE SYSTEM | Reverse circuit protection | support |
| Load capacity | >5KΩ | Module failure alarm | support |
