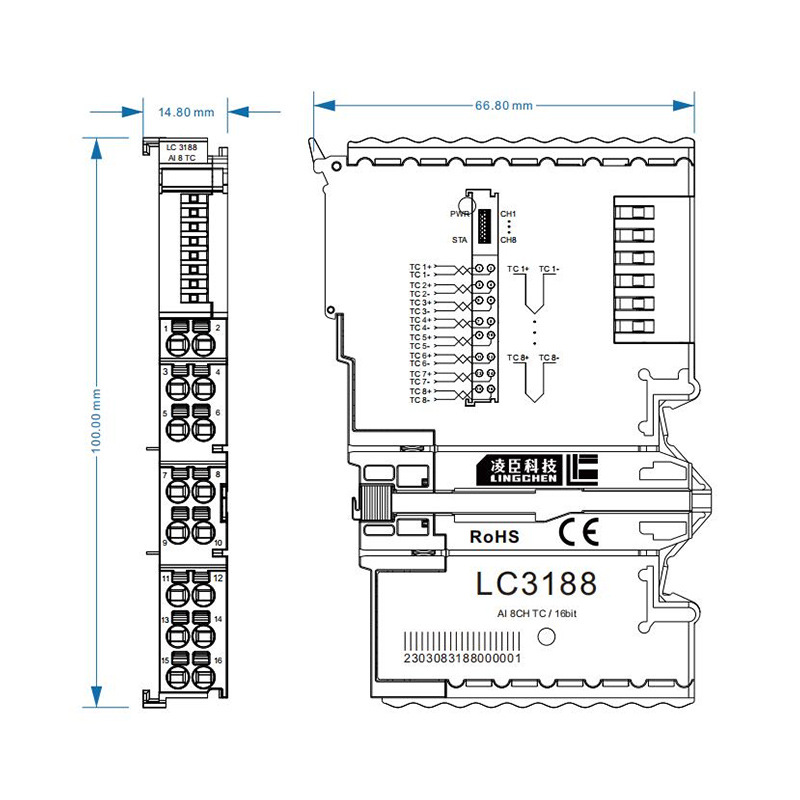

8 Channel 16 bit Temperature acquisition io module
Parameters
| LC3188 Thermocouple Sensor Input Module Electrical parameters | |||
| Number of channels | 8 | sampling frequency | Configurable, 0.25HZ by default |
| Connection type | 2-wire | Sensor Type/Signal Range | K、E、T、J、B、S、R、N |
| Temperature resolution (temperature measurement) |
0.1 ℃/digit | Broken wire detection | Support |
| Voltage conversion formula （Measure mV voltage value) |
actual V=D/32767 * rated V Where: actual V is the current voltage value; Rated V is the rated range value of the sensor. |
System side current consumption | 70mA |
| Reverse circuit protection | Support | ||
| Module failure alarm | Support | ||
