Lingchen Technology Industrial Computer Applications in AOI (Automated Optical Inspection) Industry
In the production process of electronic products, Printed Circuit Boards (PCBs) serve as the support structure for electronic components and provide the connections for electronic circuitry, holding a dominant position in the electronics industry. The process of Printed Circuit Board Assembly (PCBA) involves the assembly of components onto the bare PCB through Surface Mount Technology (SMT) or Dual In-line Package (DIP) insertion. As the core and foundation of the entire system, the manufacturing quality of PCBA directly impacts the reliability of electronic products, making the inspection of the PCBA production process particularly critical.

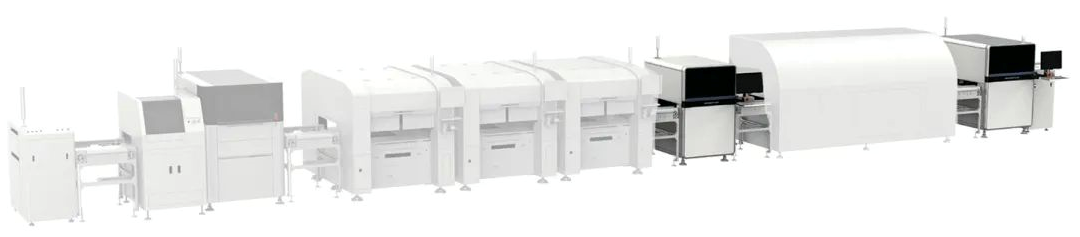

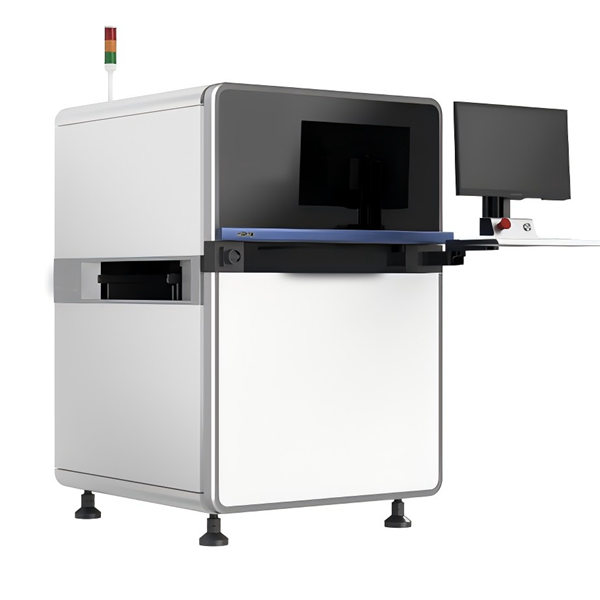

Focusing on the optical inspection field within the PCBA production process, the product range includes pre- and post-reflow AOI for DIP, SMT 2D AOI, 3D AOI, 3D SPI, double-sided AOI, and coating inspection equipment. The AIS40X series devices utilize high-precision color industrial cameras to capture images of the circuit boards, employing convolutional neural network algorithms for intelligent detection of component placement and soldering defects, achieving efficient inspection. Additionally, with a high-precision motion system and path planning capabilities, the inspection speed is significantly enhanced. Furthermore, this series of products supports remote centralized management and SPC data statistical analysis, assisting enterprises in reducing costs and improving efficiency.
Case Background
·To ensure the strong stability, high detection rate, and low false positive rate of inspection equipment, there are extremely high requirements for the core computing unit, the industrial computer, within the equipment:
·Ensure that the machine operates smoothly without lag, achieving stable high-frequency operation.
·Enable interconnectivity among multiple devices, supporting various industrial buses.
Meet the diverse expansion needs of production enterprises.
·Ensure uninterrupted production on the enterprise’s production line, achieving 7x24 hour operation.
Lingchen's Solution

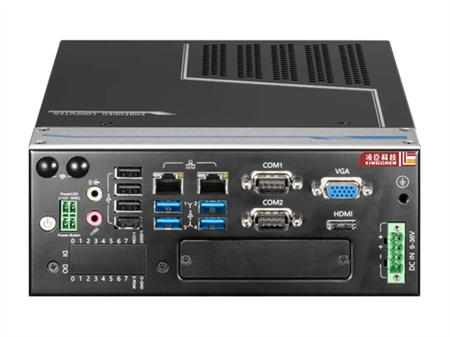

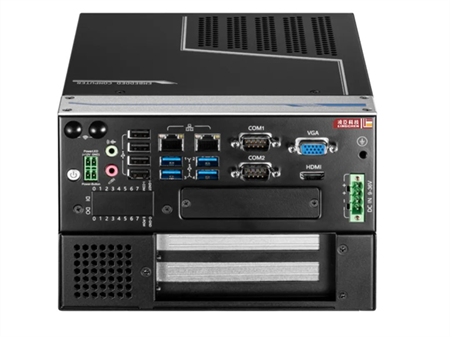

Based on user requirements, Lingchen Technology provides the VMC-800 embedded industrial computer, which has the following advantages:
·Exceptional Performance
The product is equipped with Intel® 6th/7th/8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processors, providing powerful data processing capabilities.
·Rich I/O Interfaces and Strong Expandability
The product features 4 serial ports, 4 USB 3.0 ports, and 4 USB 2.0 ports, supporting up to six network ports to meet various external interface needs of customers. The product also supports high-definition display expansion through HDMI, VGA, and other interfaces..
·Dual Intel Chip Gigabit Network Ports for Stable Connectivity
Users can connect multiple industrial vision inspection cameras through the Intel Gigabit network ports. The stable data transmission capability of these ports significantly reduces the occurrence of data packet loss during image transmission, thereby avoiding issues such as inaccurate environmental and path recognition during operations.
·Wide Voltage Design
Supporting a wide voltage input of 9-36V, the industrial embedded computer ensures efficient and stable operation of customer equipment 24/7. This indirectly helps electronic manufacturing companies achieve a synergistic development of cost reduction, efficiency enhancement, and high-quality control. With reliable warranty services, Lingchen continuously “safeguards” its customers and their service enterprises.
