Distributed remote IO input and output PLC modules for industrial automation solutions
Product Overview
-

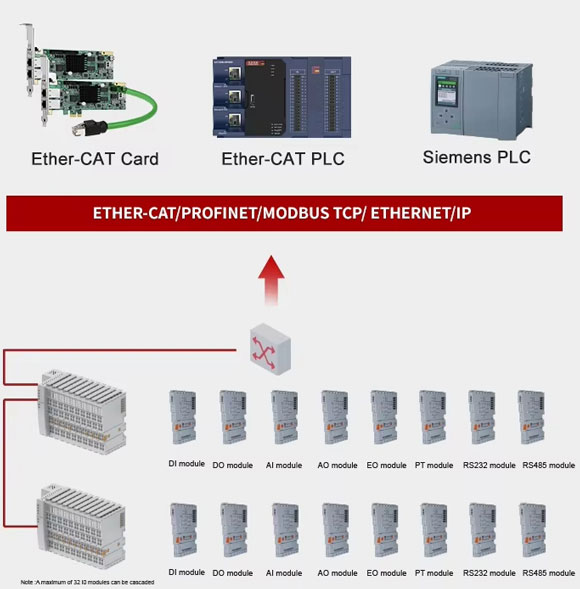

- The LCT remote I/O module is a highly cost-effective distributed I/O module with four mainstream protocols. It can hang up to 31 modules, each I/O module has 16 channels, and each channel has an LED indicator light. Therefore, it can support a total of 1024 I/O points.
The temperature range of WTP is -40 to 85 ℃, and the warranty period is 2 years. Supports four mainstream protocols including Modbus TCP, Profinet, EtherCAT, Ethernet/IP, etc.
The flexibility of network adapters and extended IO modules allows for customized configuration based on specific on-site requirements. In scenarios with a large number of connection points, utilizing distributed IO modules can significantly reduce overall costs.
Product model and specifications
| Series | P/N | Specifications |
| Network Adapter |
LC1100 | LC1100:EtherCAT Network Adapter,31 slots,max,1024 bytes input,max.1024 bytes output |
| LC1101 | LC1101:Profinet Network Adapter, 31 slots, input & output max 340bytes, Support MRP redundancy and lRT function |
|
| LC1105 | LC1105:Ethernet/P Network Adapter, 31 slots. max,256 bytes input, max. 256 bytes output |
|
| LC1201 | LC1201:Modbus-TCP Network Adapter, 32 slots. | |
| Series | P/N | Specifications |
| digital input module | LC1488 | LC1488:8-channel digital input module, NPN, rated input voltage 0V DC, typical input current 3mA, system side current consumption 15mA |
| LC1408 | LC1408:8-channel digital input module, PNP, rated input voltage 24V DC | |
| LC1486 | LC1486:16-channel digital input module, NPN, rated input voltage 0V DC, typical input current 3mA, system side current consumption 15mA | |
| LC1406 | 16-channel digital input module, PNP, rated input voltage 24V DC | |
| LC1016 | 16 channel digital input (BIT+WORD) module, NPN, Input rated voltage 0V DC, typical input current 3mA, system side current consumption 30mA | |
| LC1116 | 16 channel digital input (BIT+WORD) module, PNP, Input rated voltage 24V DC | |
| digital output module | LC2488 | 8-channel digital output module, NPN, Maximum output current 0.5A/channel, system side current consumption 50mA, maximum short-circuit protection current 2A |
| LC2408 | 8-channel digital output module, PNP | |
| LC2486 | 16-channel digital output module, NPN, Maximum output current 0.5A/channel, system side current consumption 75mA, maximum short-circuit protection current 2A | |
| LC2406 | 16-channel digital output module, PNP | |
| LC1188 | 8-channel digital input, 8-channel digital output module, NPN, System side current consumption is 50mA, input filtering defaults to 3ms, configurable from 0.2-40ms | |
| LC1088 | 8-channel digital input, 8-channel digital output module, PNP | |
| analog input module | LC3004 | 4-channel voltage input module, signal range ± 10V, signal type differential/single ended, connection type 2-wire system, resolution/accuracy 16bit/0.2% |
| LC3014 | 4-channel voltage input module, signal range 0~10V | |
| LC3024 | 4-channel current input module, signal range 0~20mA | |
| LC3034 | 4-channel current input module, signal range 4~20mA | |
| LC3162 | 2-channel pressure sensor input module, signal range 0~10mv, signal type differential/single ended, connection type 3-wire/4-wire, excitation power output 5V DC | |
| analog output module | LC4134 | 4-channel voltage output module, signal range ± 10V, signal type differential/single ended |
| LC4144 | 4-channel voltage output module, signal range 0~10V, signal type differential/single ended | |
| LC4114 | 4-channel current output module, signal range 0~20mA, signal type differential/single ended | |
| LC4124 | 4-channel current output module, signal range 4~20mA, signal type differential/single ended | |
| Encoder/pulse module | LC5001 | 1-channel encoder input module 5V signal, 1-channel incremental encoder input/1-channel electronic probe input |
| LC5011 | 1-channel encoder input module 24V signal, 1-channel incremental encoder input/1-channel electronic probe input | |
| LC5002 | 2-channel encoder input module 5V signal, 2-channel encoder input/2-channel power output, pulse signal 5V, power output 5V | |
| LC5012 | 2-channel pulse input module 24V signal, 2-channel pulse input/2-channel electronic probe input, pulse signal 24V, electronic probe signal 24V | |
| Temperature acquisition module | LC3172 | 2-channel thermal resistance sensor input module |
| LC3174 | 4-channel thermal resistance sensor input module | |
| LC3184 | 4-channel thermocouple sensor input module | |
| LC3188 | 8-channel thermocouple sensor input module | |
| Communication module | LC6001 | 2-channel pulse input module 24V signal, interface RS232/RS485/RS422, data bits 7 bits/8 bits, maximum data frame length 40 bytes |
