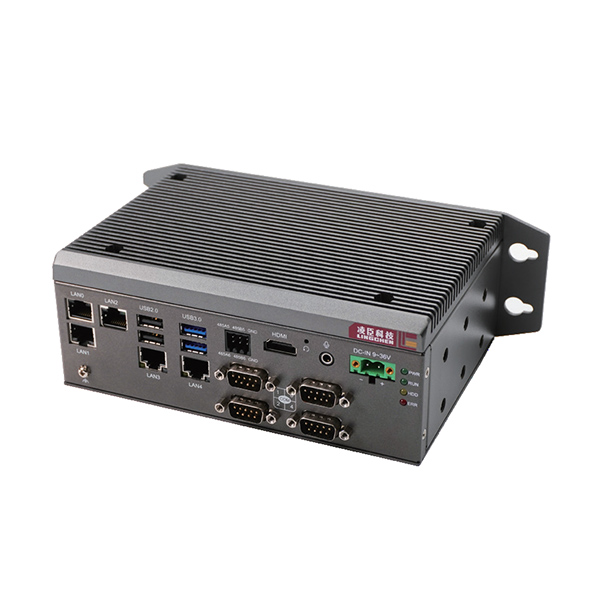

Embedded Industrial Computer LBX-N920
Specification parameters
| LBX-N920 product specifications | ||
| System | ||
| Processor | Intel ® Alder Lake-N N95，TDP 15W； N97，TDP 12W | |
| Memory | 1xDDR5 SO-DIMM 4800 MHz, Maximum support for 16GB | |
| graphics | CPU integrated graphics card | |
| storage | 1x SATA 3.0, 1x M-Key M.2 2280 (Gen3, 1xPCIe X1 signal) | |
| Operating System | Windows 10,Linux | |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interface | ||
| Ethernet port | 5x Intel ® I210AT (10/100/1000Mbps) | |
| Display | 1x HDMI， Maximum resolution 4096 x 2160@60Hz Scalable VGA, maximum resolution 1920 x 1200 @ 60Hz |
|
| Audio | 1 x Audio (Line out&Mic in 2-in-1) | |
| serial port | 2x RS485(COM5/6） | |
| USB | 2 x USB3.2（GEN1）,2x USB2.0 | |
| Power supply | 1 x DCIN interface (2pin Phoenix terminal), supporting power supply anti reverse and anti short circuit | |
| Reset | 1x Reset button | |
| Indicator light | 1x HDD/1x PWR/1x RUN/1x ERR | |
| internal Interface | ||
| Extended interface | 1x B-Key M.2 3052 Slot (USB 3.2 Gen1/USB 2.0) (with Nano supporting SIM card 3G/4G/5G) 1x E-Key M.2 2230 slot (PCIe x1 Gen3/USB2.0) 1x M-Key M.2 2280(Gen3，1xPCIeX1) |
|
| USB | 1x USB2.0(Type-A) | |
| SATA | 1x SATA3.0 | |
| Serial port | 4x RS232 Pin header | |
| GPIO | 1x 8Bit GPIO | |
| Remote switch | 1 x Remote switch (PH2.0 socket) (voltage triggered), 12-24V | |
| UPS | The internal UPS can support a maximum system running time of 8 seconds | |
| TPM | TPM2.0 (optional) | |
| Fan | 1x SYS FAN interface | |
| environment | ||
| Operating temperature | -10 ℃~50 ℃ (SSD) with airflow | |
| Storage temperature | -40℃ ~ 85℃ | |
| Humidity | Operation humidity: 5%~95%, non condensing Storage humidity: 5%~95%, non condensing |
|
| Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
| Mechanical shock | Operation: 10G@11ms Non-operation: 30G@11ms |
|
| Power input | 9-36V DC, 2pin Phoenix terminal, overvoltage/overcurrent/reverse connection protection | |
| Machine Architecture | ||

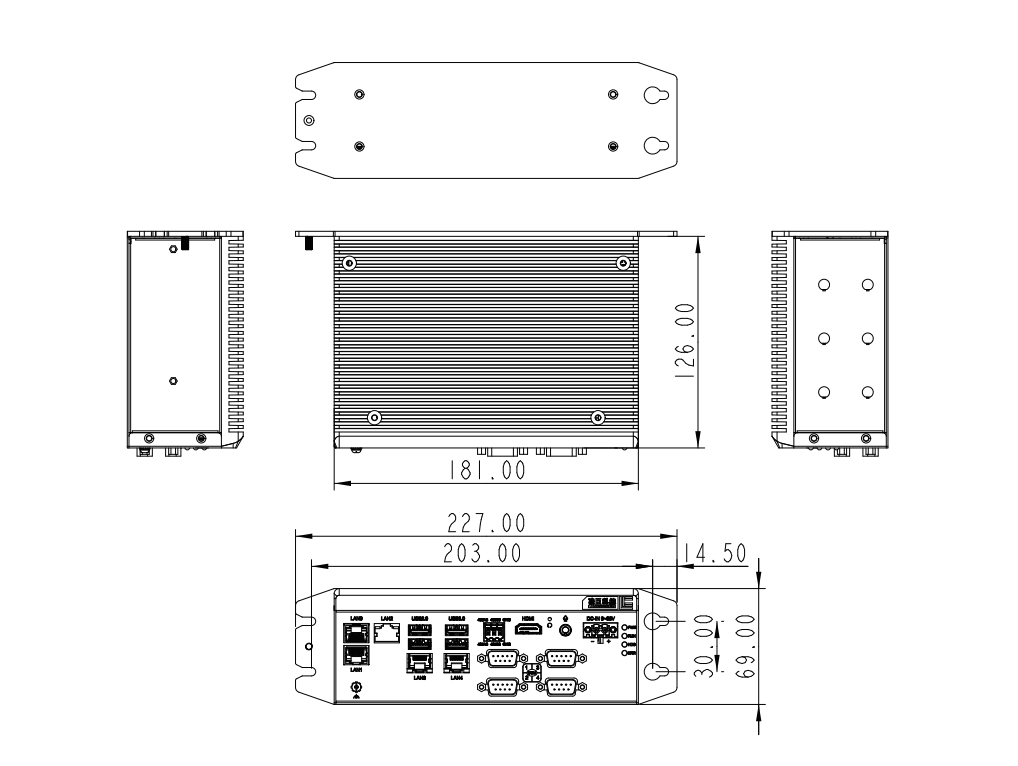

| Dimensions | 181 * 126 * 69mm (excluding base bracket) | |
| Installation Method | ||
| Installation Method | Support wall mounted/desktop | |
| Certification | ||
| Safety certification | CE | |
| Selection List | ||
| Model Name | Processor | |
| LBX-N920 | Intel ® Alder Lake-N N95 | |
| LBX-N920 | Intel ® Alder Lake-N N97 | |
