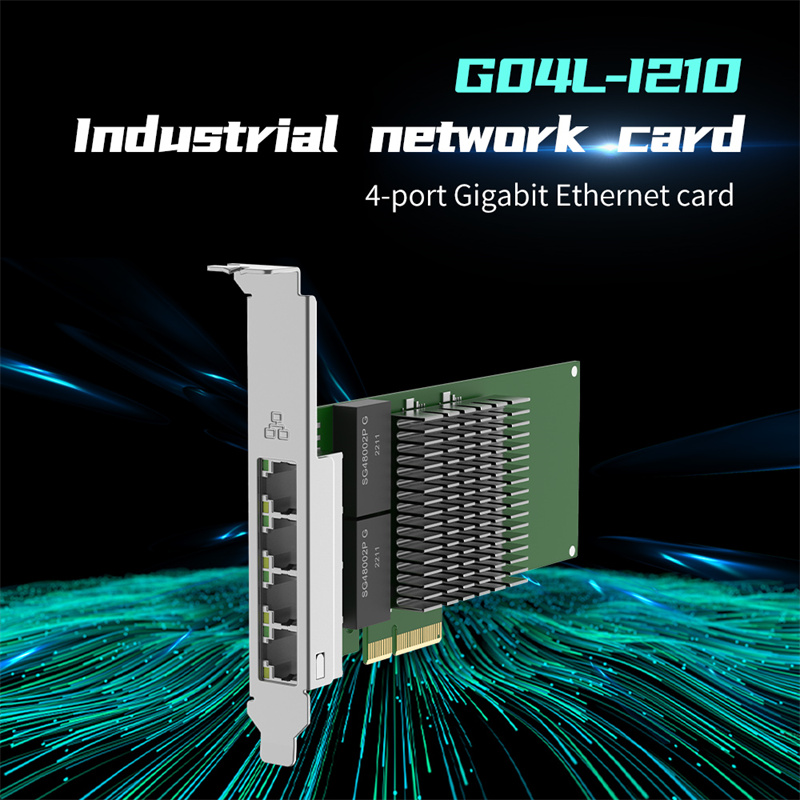

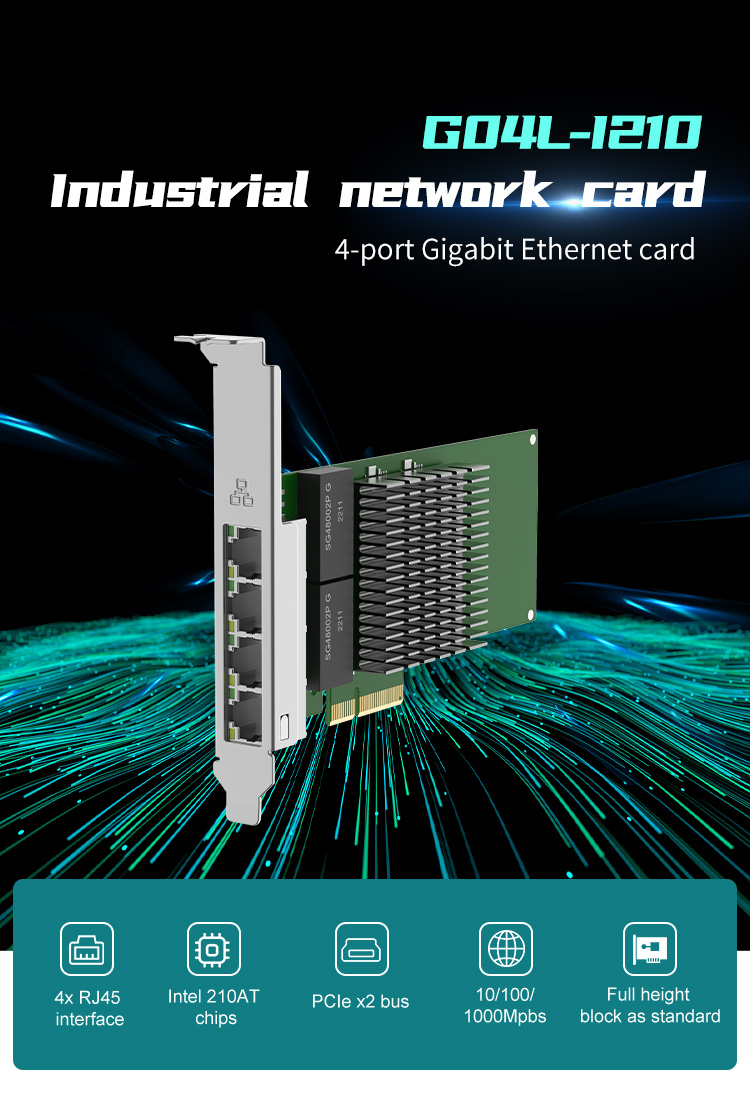

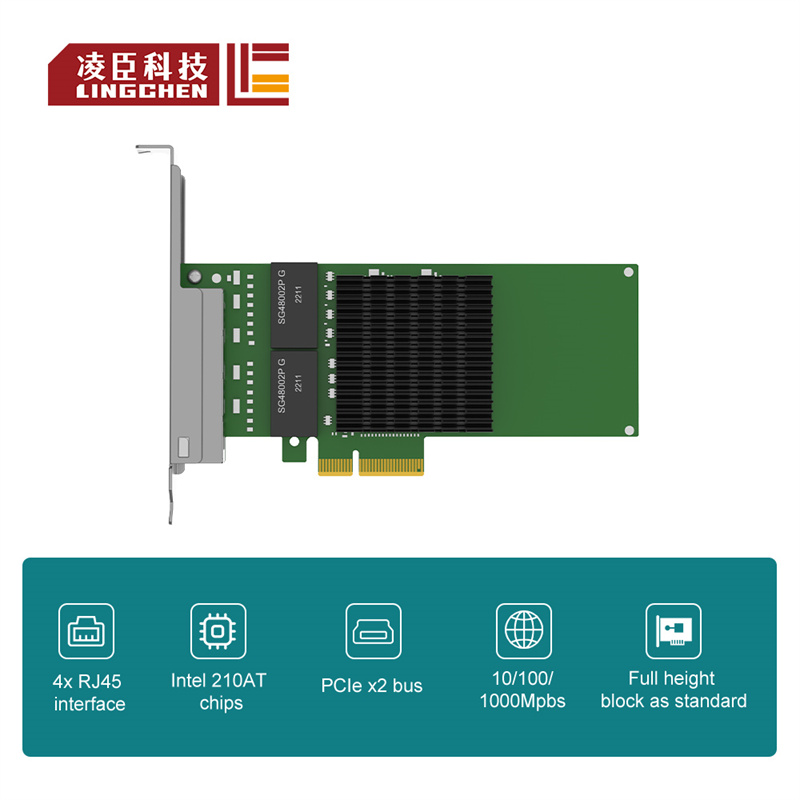

G04L-I210 Network card 4-port Gigabit Ethernet card
Product Features
Lingchen Technology launched a series of image capture cards based on the Intel I210-AT main control chip in 2023, including G4PL-I210, G04L-I210 and G02L-I210. Each of these three products has its own characteristics and meets the needs of different users. Specifically, G04L-I210 supports four Gigabit network ports, G4PL-I210 has four Gigabit network ports with POE (Power over Ethernet) function, and G02L-I210 provides a cost-effective Gigabit dual network port option. In addition, these three products all support full-height and half-height baffle installation methods, and customers can flexibly choose according to actual needs.
On this basis, Lingchen Technology has launched new products in the G4PL-I350, G04L-I350 and X02L-X550 series, continuing to use Intel main control chips. Among them, G4PL-I350 and G04L-I350 are equipped with Intel I350 main control chip, while X02L-X550 uses Intel X550 main control chip. These new products not only enrich Lingchen’s image capture card series, but also better meet the needs of customers in different application scenarios. For example, the RJ45 interface of the I350 image capture card is designed with wider spacing for easier connection; while the X02L-X550 10G image capture card has significant features such as high bandwidth, low latency and high reliability.
1.Advantages of Intel main control chip
Lingchen Technology’s full range of image capture cards use Intel main control chips, including I210, I350 and X550. This choice effectively ensures the stability, high speed, reliability and low latency of the product, ensuring that users get a high-quality experience during use.
2.Rich product selection
Customers can choose I210, I350 or X550 series products according to different main control platforms. Among them, I210 and I350 support Gigabit network, while X550 supports 10G network. In addition, users can also choose different numbers of RJ45 interfaces according to needs. The G4PL and G04L series support four network ports, while the G02L and X02L support two network ports. It is worth mentioning that the G4PL series capture cards also support POE function, further improving the flexibility and applicability of the product.
3.Optimized product design
The G4PL-I350, G04L-I350, G02L-I210 and X02L-X550 series image capture cards have been optimized in design, and the RJ45 interface adopts a separate design to provide a wider connection space. In addition, the product also adopts a large-area aluminum fin heat dissipation design, which effectively ensures long-term, efficient and stable operation. The RJ45 interface uses thickened immersion gold material to ensure the firmness and reliability of the connection.
4.Support POE function
G4PL-I210 and G4PL-I350 series image capture cards support POE power supply function, comply with IEEE 1588 and IEEE 802.3at specifications, and provide a standard external large 4Pin power auxiliary power supply interface. Among them, G4PL-I350 also supports SATA power supply interface. Power is provided directly through the Ethernet cable, eliminating the need for additional power harnesses, reducing wiring clutter, saving space, reducing installation and daily maintenance costs, solving the pain point of network cards requiring additional power supply, and making the deployment of industrial sites cleaner and more efficient.
5.Strong compatibility
The full range of image capture cards supports multiple operating systems, including Windows 7, Windows 10 and Linux. In terms of hardware, all capture cards are adapted to PCIe x4 slots and are compatible with PCIe x1, x8 and x16 channels. They can be connected to different motherboards through PCIe slots, providing flexible and high-performance solutions for bandwidth and network reliability. G4PL, G04L and G02L series image capture cards have 10/100/1000Mbps adaptive transmission characteristics and can be quickly compatible with network devices of different rates. The X02L-X550 capture card supports up to 10Gbps Ethernet transmission rate and is backward compatible with 5000Mbps、2500Mbps、1000Mbps and 100Mbps rates, further enhancing the scalability and reliability of the product.
To sum up, Lingchen Technology’s image capture card series, with its strong technical background, rich product selection, optimized design and excellent compatibility, will surely provide customers with more efficient and reliable solutions to meet the increasingly demanding needs of customers. Growing market demand.

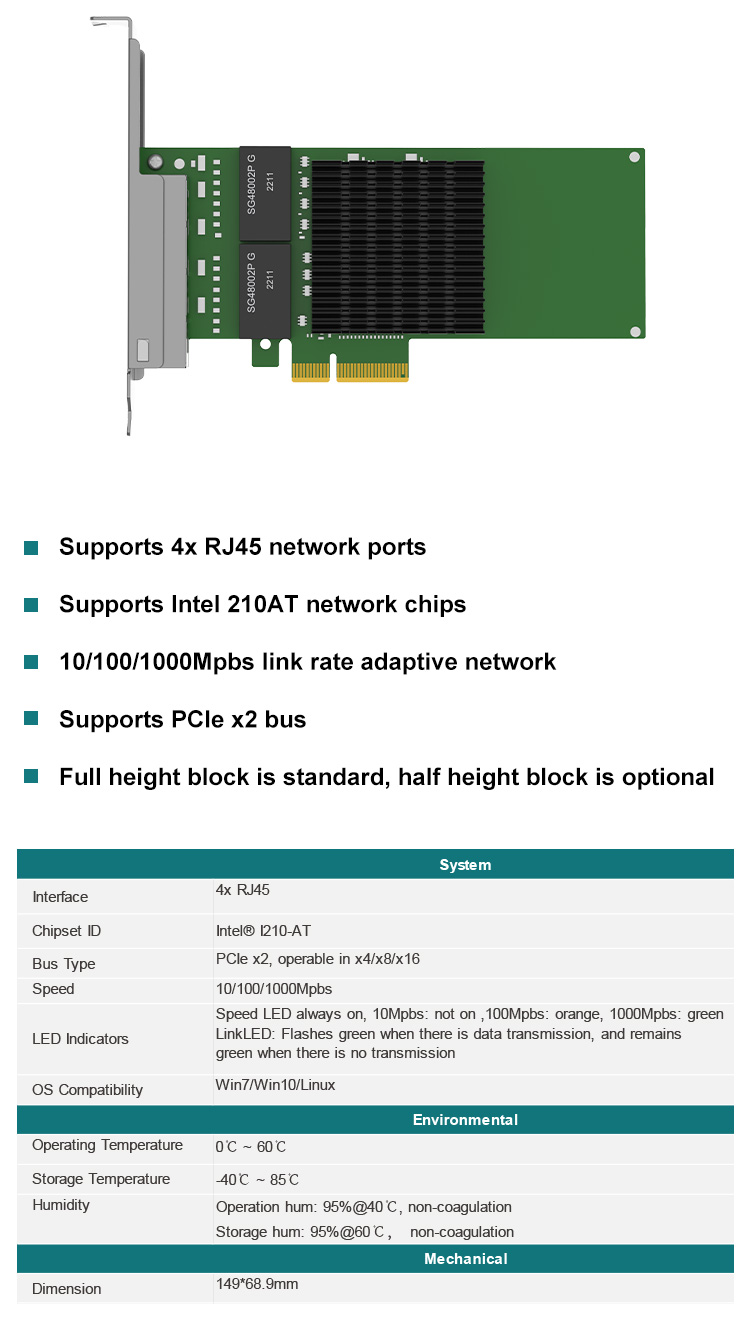

Product parameters
| G04L-I210 product specifications | ||
| System | Interface | 4x RJ45 |
| Chipset ID | Intel® I210-AT | |
| Bus Type | PCIe x2, operable in x4/x8/x16 | |
| Speed | 10/100/1000Mpbs | |
| LED Indicators | Speed LED always on, 10Mpbs: not on ,100Mpbs: orange, 1000Mpbs: green LinkLED: Flashes green when there is data transmission, and remains green when there is no transmission |
|
| Operating system | Win7/Win10/Linux | |
| Environmental | Operating Temperature | 0℃~60℃ |
| Storage Temperature | -40℃~85℃ | |
| Humidity | Operation hum:95%@40℃, non-coagulation Storage hum:95%@60℃，non-coagulation |
|

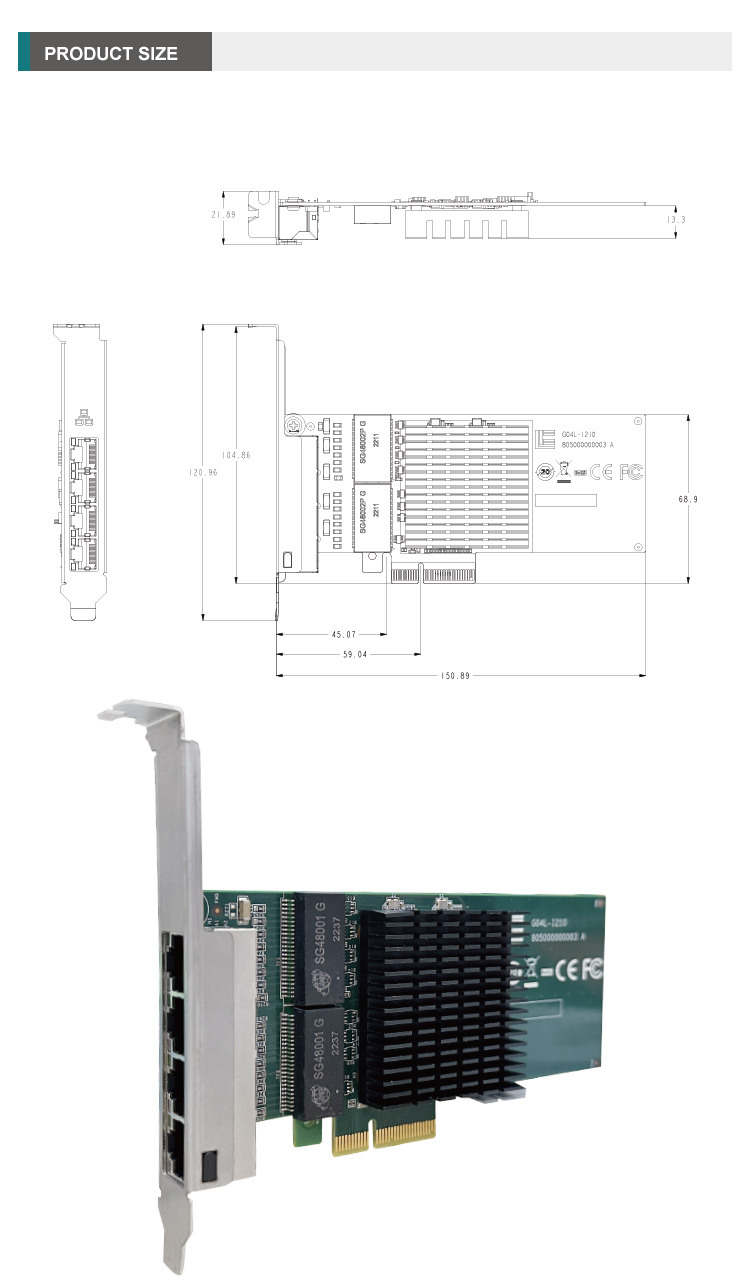

| Mechanical | Dimension | 149*68.9mm |
