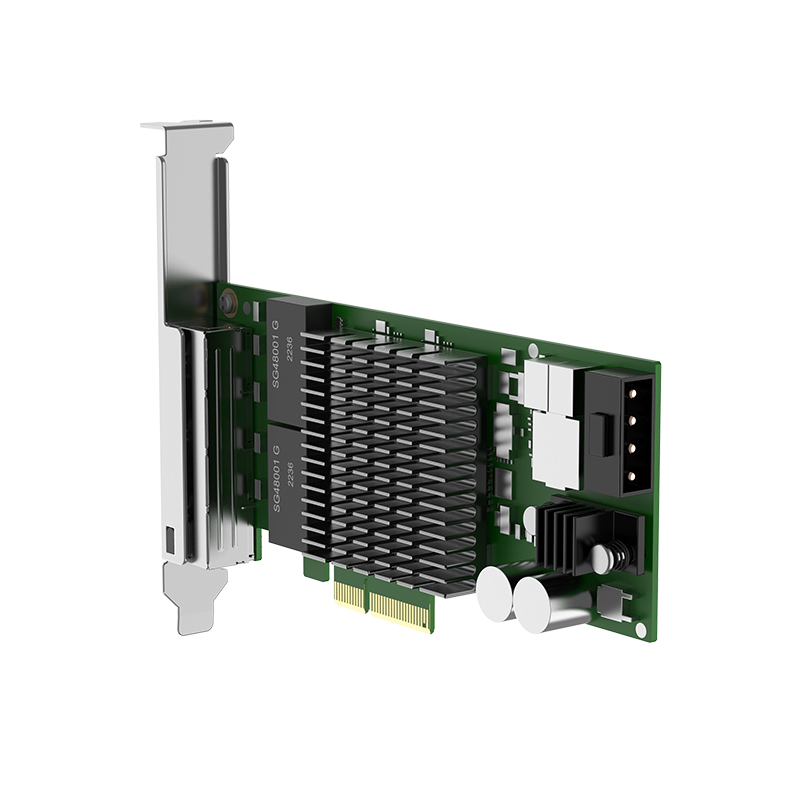

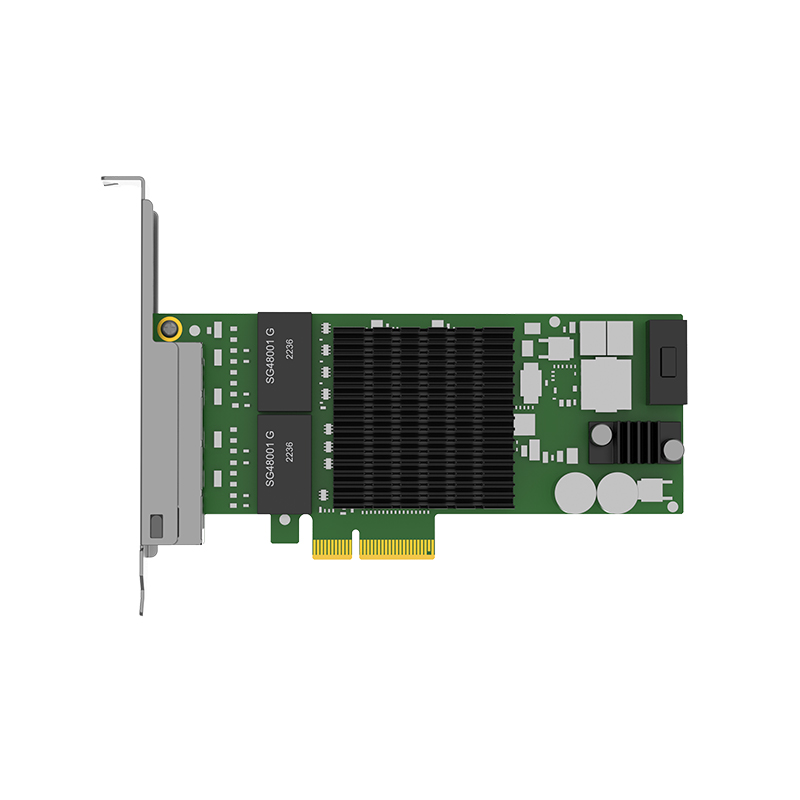

G4PL-I210 Gigabit POE Ethernet Industrial Acquisition Network Card
product description
The G4PL-I210 is a Lingchen Technology PClex2 Gigabit POE Ethernet card based on the Intel 210AT network chip. It supports standard full-height/half-height brackets and can operate on PCIe x4/x8/x16 lanes. This product is widely used in machine vision, smart manufacturing, automation, and other industries.
Specification parameters
| G4PL-I210 product specifications | |
| System | |
| Port Type | 4x RJ45 |
| Network Chip | Intel® 1210-AT |
| Bus Interface | PCle x2 compatible with x4/x8/x16 |
| Speed | 10/100/1000Mbps |
| Compliant | IEEE-1588, IEEE-802.3at |
| Single PoE Power Supply | Maximum per-port power consumption: 30W (auxiliary power supply), PCle power supply per port: 15.4W |
| LED Indicator | SpeedLED:Always on,10M:Off,100M:Orange,1000M:Green; LinkLED:Flashes green during data transmission, stays solid green when idle. |
| Operating System | Win7/Win10，Linux |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -40°C~85°C |
| Humidity | Operation humidity: 95% @ 40°C, non-condensing Storage humidity: 95% @ 60°C, non-condensing |
| Power Supply | |
| Power Input | Powered directly via the PCIe slot or an external 12V supply |
| Institution | |
| Dimensions | 149*68.9mm |
| Certification | |
| Safety Certification | CE, FCC |
