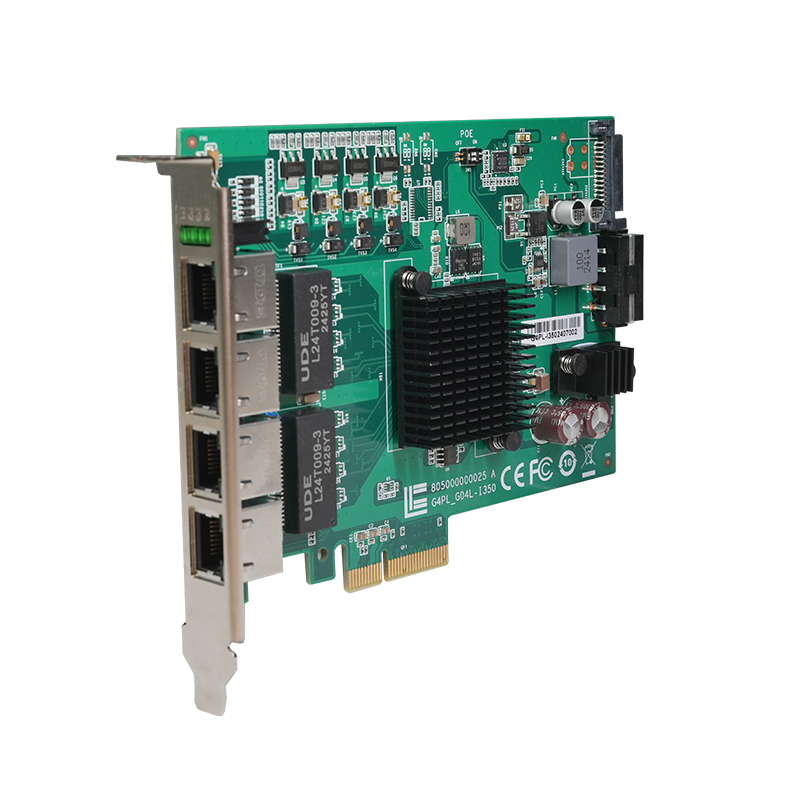

G4PL-I350 Industrial Acquisition Ethernet Network Card
product description
G4PL-I350 is Lingchen Technology PClex4 Gigabit POE Ethernet card based on the Intel I350 AM4 network chip, supporting standard full-height bracket. This network card can be used on PCIe x4 lanes compatible with x1/x2/x8/x16 modes. The product is widely applied in machine vision, smart manufacturing, automation, and other industries.
Specification parameters
| G4PL-I350 product specifications | |
| System | |
| Port Type | 4x RJ45 |
| Network Chip | Intel® 1350 AM4 |
| Bus Interface | PCle x4 compatible with x1/x2/x8/x16 |
| Speed | 10/100/1000Mbps |
| Compliant | IEEE-1588, IEEE-802.3at |
| Single PoE Power Supply | PCle power delivery per port: 15.4W |
| LED Indicator | Speed LED:10M: Off，100M: Orange，1000M: Green Link LED:Green steady when connected with no data transmission Green flashing when data is being transmitted |
| Operating System | Win7/Win10，Linux |
| Environment | |
| Operating Temperature | 0°C~ 60°C |
| Storage Temperature | -40°C~85°C |
| Humidity | Operation humidity: 95% @ 40°C, non-condensing Storage humidity: 95% @ 60°C, non-condensing |
| Power Supply | |
| Power Input | Powered directly via the PCIe slot or an external 12V supply |
| Institution | |
| Dimensions | 146.1 × 111.15 mm (excluding retaining clip) |
| Certification | |
| Safety Certification | CE, FCC |
