GWD Series External I/O module
product description
Specification parameters
| GWD Series External I/O module specification | ||
| Features | Specification Item | Specification Description |
| Power Supply | Control Terminal Rated Power Supply | DC 24V(21V~28V) |
| Control Terminal Maximum Current | 24V@0.5A | |
| I/O Terminal Rated Power Supply | DC 24V(21V~28V) | |
| I/O Terminal Maximum Current | 24V @ 8A, does not trip on overcurrent | |
| General-Purpose Digital Inputs | Input Channels | Varies by model |
| Input Type | NPN/PNP configurable | |
| Input Voltage | Rated 24 VDC (21 V–28 V DC) | |
| Input Impedance | 6.2KΩ | |
| Logic 1 Signal (Minimum) | >15 V DC (voltage difference between the input terminal and the COM terminal) |
|
| Logic 0 Signal (Maximum) | <5 V DC (voltage difference between the input terminal and the COM terminal) |
|
| Hardware Response Time (ON/OFF) | 100us/100us(Max) | |
| Input Response Frequency | 500Hz(Max) | |
| Software Filtering | Supported, configurable | |
| Isolated | Optocoupler isolation, 3750 V rms | |
| Indicator Lights | 1 green LED per channel | |

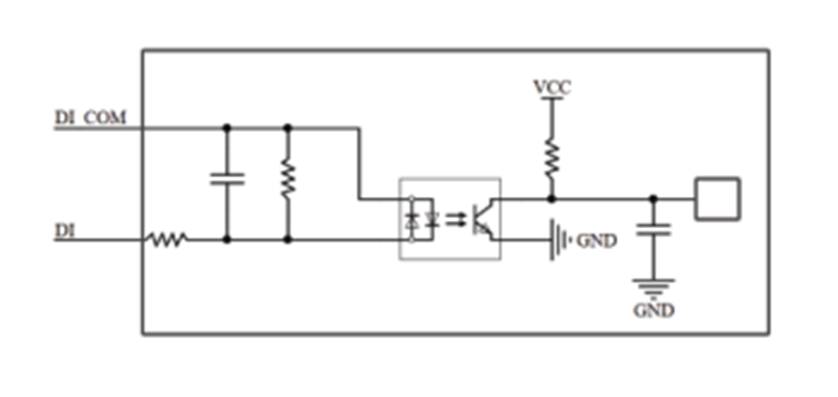

| Schematic Diagram of a General-Purpose Input Circuit |
 |
|
| General-purpose digital output | Output Channels | Depends on the model |
| Output Type | NPN output | |
| PNP output | ||
| Output Voltage | 24V DC | |
| Output Current | 0.5 A per channel (max), 2 A for 8 channels | |
| Output Switching Frequency | 500Hz(Max) | |
| On-State Impedance | 0.22 | |
| Isolated | Optocoupler isolation, 3750 V rms | |
| Indicator Light | 1 green LED per channel | |

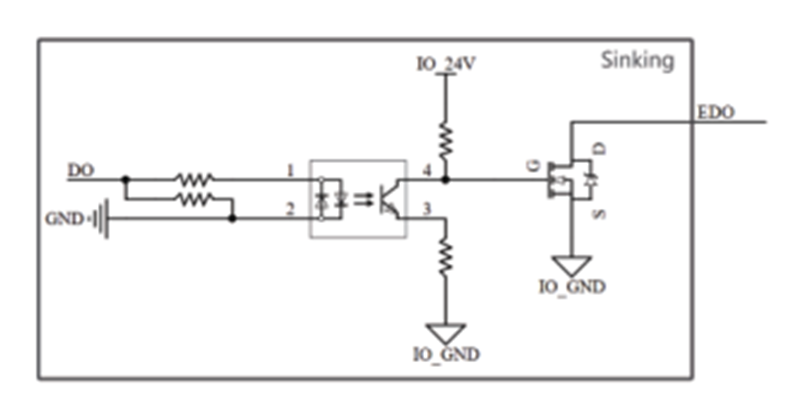

| Sink (Low-Side) Output Circuit Diagram |  |
|

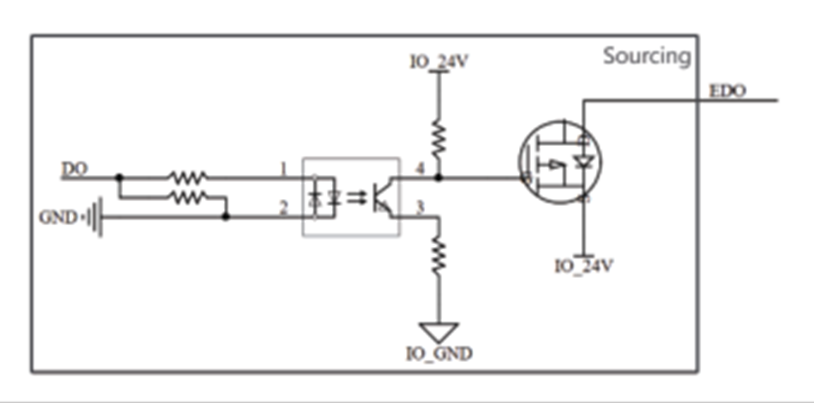

| Source (High-Side) Output Circuit Diagram |  |
|

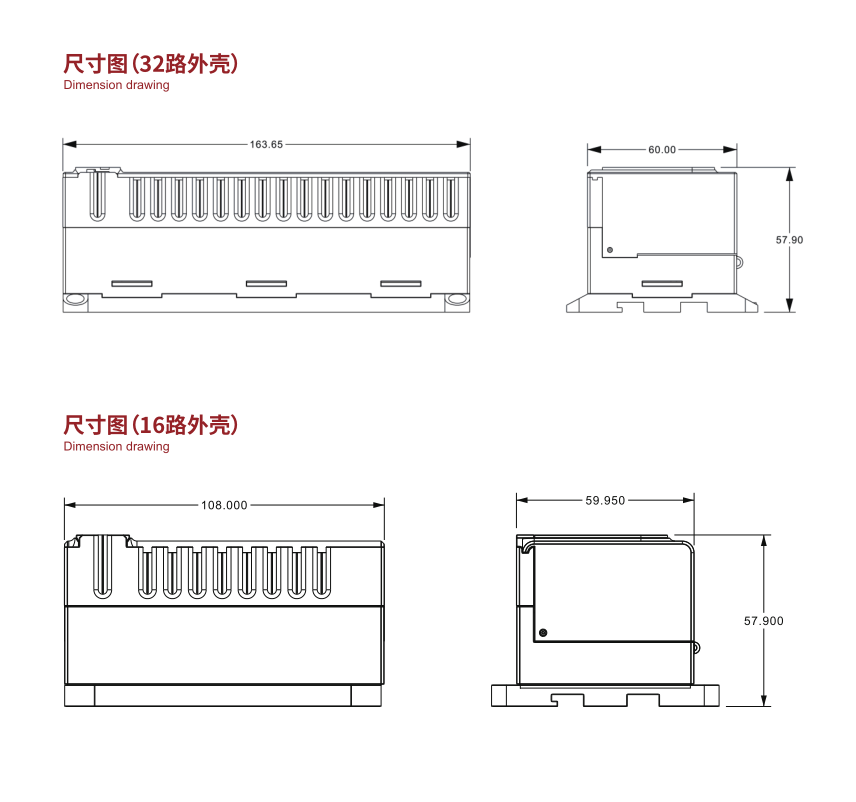

| Ordering Information | ||
| Category | Model | Specifications |
| 32-channel | LCTE-GWS-0032 | 32-channel output (NPN) |
| LCTE-GWS-3200 | 32-channel input (NPN/PNP) | |
| LCTE-GWS-1616 | 16-channel input (NPN/PNP)/ 16-channel output (NPN) |
|
| 16-channel | LCTE-GWS-0016 | 16-channel output (NPN) |
| LCTE-GWS-1600 | 16-channel input (NPN/PNP) | |
| LCTE-GWS-IO8S | 8-channel input (NPN)/8-channel (NPN, configurable as input or output) |
|
