High-Performance Compact Embedded BOX VMC-1200Q2K4P
Product Features
Supports Intel® 12th, 13th, and 14th Generation Core™ i3, i5, i7, and i9, Pentium®, and Celeron® CPUs; supports the Q670 chipset; supports 2x DDR5 SO-DIMM memory, supports three displays, 6 LAN ports (4 of which support PoE), 6 COM ports, multiple expansion interfaces, and optional 9–36V wide-voltage input. This product is suitable for use in AGVs, automation, rail transit, and other industries.
Product parameters
| VMC-1200Q2K4P product specifications | ||
| System | ||
| processor | Intel® 12th/13th/14th Generation CoreTM i3 /i5/i7/i9, Pentium® , Celeron® CPU | |
| Chipset | Q670 | |
| Memory | 2x DDR5 SO-DIMM 4800/5200/5600Mhz，up to 64 GB | |
| graphical | CPU integrated graphics card | |
| storage | 1 x M-Key M.2 2242/2280（PCIex4/SATA）slot，2 x 2.5" SATA 3.0 HDD/SSD | |
| operating system | Windows 10, Linux | |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interface | ||
| Network port | 1 x RJ45 Intel® PCI-E LAN for 10/100/1000 Mbps I219-V 1 x RJ45 Intel® PCI-E LAN for 10/100/1000/2500 Mbps I225-V 4x RJ45 Intel® 10/100/1000 Mbps I210-AT，Supports POE functionality |
|
| display | 1x HDMI: Maximum resolution 4096x2160@60Hz 1x VGA: Maximum resolution 1920x1200 1x DP++(optional) |
|
| audio frequency | 1 x Audio(Line-out & Mic-in ) | |
| Serial port | 2x RS232/422/485，2xRS232，expandable to 2xRS232 | |
| USB | 8 x USB3.2 (Gen1) | |
| Indicator Light | 1x HDD LED 2x COM1 LED for Rx1 and Tx1 2x COM2 LED for Rx1 and Tx1 1x Switch Button |
|
| Reset | 1x Reset button | |
| Remote Switch | 1x Remote ON-OFF | |
| Power Supply | 1 x DC IN 4-pin Phoenix connector, 19–24 V, optional 9–36 V wide-range input | |
| internal Interface | ||
| Extension Interface | 1 x E-Key M.2 2230 slot (PCIe x1/USB2.0)，1x Mini-PCIe slot(PCIe x1/USB2.0/SATA) 1 × B-Key M.2 3042/3052（USB3.0/USB2.0 Supports 4G/5G modules） |
|
| USB | 1x USB 2.0 (Type-A), 1x USB 2.0 (1-pin header to 2-port) | |
| Serial Port | 4x RS232 pin header | |
| SATA | 2x SATA3.0（Supports RAID 0/1） | |
| TPM | TPM2.0 (optional) | |
| Extension Interface | ||
| Extension Interface | 2-Slot Expansion: 1x PCIe x16 + 1x PCI | |
| environment | ||
| Operating temperature | -10°C ~ 60°C, 0.7 m/s airflow (65W CPU with industrial SSD, paired with a CPU fan cooler) -10°C ~ 60°C, 0.7 m/s airflow (35W CPU with industrial SSD) 0°C ~ 30°C, 0.7 m/s airflow (HDD) |
|
| Storage temperature | -40°C~85°C | |
| humidity | Operation humidity: 5%~95%, non-coagulation Storage humidity: 5%~95%, non-coagulation |
|
| Random Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
| Sine Wave Vibration | 5~500Hz,2G Non-Operation | |
| Mechanical impact | Operation: 10G@11ms Non-operation: 30G@11ms |
|
| Machine Architecture | ||

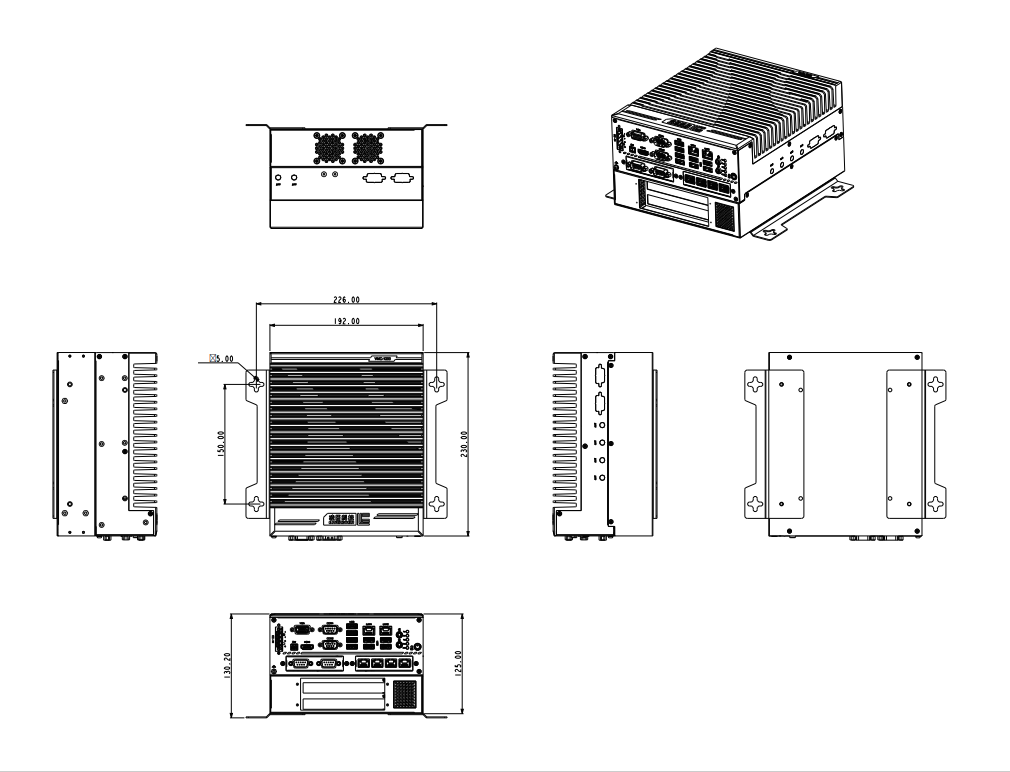

| Dimensions | 230*192*125 mm | |
| Certification | ||
| Certification | CE/FCC | |
Product Display
How can we ensure quality?
We’ve got you covered. Your reliability is our priority, which is why every Lingchen industrial PC undergoes a rigorous multi-stage verification process:
Global Standards: Every unit is manufactured under a strict ISO quality control system and carries the CE mark — your guarantee of compliance with European health, safety, and environmental protection standards.
48-Hour Burn-In Test: We perform intensive 48-hour stress tests on every single unit before it leaves our facility.
Industrial Endurance: Our products are engineered for 24/7 continuous operation even in the harshest industrial environments.Who is Lingchen? Can I trust a new supplier?
Suzhou Lingchen acquisition computer Co. LTD was established in 2006 and is located in suzhou city jiangsu provinceChina,enjoying convenient transportation and beautiful environment. Our company covers an area of 25000 square meters and has 420 employees. Our main products include industrial computer, PLC,Motion control card,remote lO,linear motor.Besides, we are making great efforts to develop new products to meet different requirements. In order to provide customers with satisfactory products and services, we have established a modern quality management system according to international standards.Our company has oscilloscope,high and low temperature test chamber.Motion control test bench equipment to strictly control the product quality.
