High-Performance Compact Embedded BOX VMC-1200QL2K4P
Product Features
Support Intel ® 12th/13th/14th Generation CoreTM i3/i5/i7/i9, Pentium ®, Celeron ® CPU,Support Q670 chipset, support 2xDDR5 SO-DIMM memory, support three displays, 6LAN (including 4 POE supports), 6 COM ports, support 2 PCIe slots for expandable large GPU cards, optional 9-36V wide voltage input. This product can be applied to multiple application industries such as 3C, lithium battery, rail transit, etc
Product parameters
| VMC-1200QL2K4P product specifications | ||
| System | ||
| processor | Intel® 12th/13th/14th Generation CoreTM i3 /i5/i7/i9, Pentium® , Celeron® CPU | |
| Chipset | Q670 | |
| Memory | 2x DDR5 SO-DIMM 4800/5200/5600Mhz，up to 64 GB | |
| graphical | CPU integrated graphics card | |
| storage | 1 x M-Key M.2 2242/2280（PCIex4/SATA）slot，2 x 2.5" SATA 3.0 HDD/SSD | |
| operating system | Windows 10, Linux | |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interface | ||
| Network port | 1 x RJ45 Intel® PCI-E LAN for 10/100/1000 Mbps I219-V 1 x RJ45 Intel® PCI-E LAN for 10/100/1000/2500 Mbps I225-V 4x RJ45 Intel®10/100/1000 Mbps I210-AT，支持POE功能 |
|
| display | 1x HDMI: Maximum resolution 4096x2160@60Hz 1x VGA: Maximum resolution 1920x1200 1x DP++(optional) |
|
| audio frequency | 1 x Audio(Line-out & Mic-in ) | |
| Serial port | 2x RS232/422/485,2xRS232,expandable to 2xRS232 | |
| USB | 8 x USB3.2 (Gen1) | |
| Indicator Light | 1x HDD LED 2x COM1 LED for Rx1 and Tx1 2x COM2 LED for Rx1 and Tx1 1x Switch Button |
|
| Reset | 1x Reset button | |
| Remote Switch | 1x Remote ON-OFF | |
| Power Supply | 1 x DC IN 4-pin Phoenix connector, 19–24 V, optional 9–36 V wide-range input | |
| internal Interface | ||
| Extension Interface | 1 x E-Key M.2 2230 slot (PCIe x1/USB2.0)，1x Mini-PCIe slot(PCIe x1/USB2.0/SATA) 1 × B-Key M.2 3042/3052（USB3.0/USB2.0 Supports 4G/5G modules） |
|
| USB | 1x USB 2.0 (Type-A), 1x USB 2.0 (1-pin header to 2-port) | |
| Serial Port | 4x RS232 pin header | |
| SATA | 2x SATA3.0（Supports RAID 0/1） | |
| TPM | TPM2.0 (optional) | |
| extended interface | ||
| extended interface | 2-plot expansion: 1xPCIex16+1xPCIEx4 | |
| environment | ||
| Operating temperature | -10°C ~ 60°C, 0.7 m/s airflow (65W CPU with industrial SSD, paired with a CPU fan cooler) -10°C ~ 60°C, 0.7 m/s airflow (35W CPU with industrial SSD) 0°C ~ 30°C, 0.7 m/s airflow (Mechanical Hard Disk (HDD) |
|
| Storage temperature | -40°C~85°C | |
| humidity | Operation humidity: 5%~95%, non-coagulation Storage humidity: 5%~95%, non-coagulation |
|
| Random Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
| Sine Wave Vibration | 5~500Hz,2G Non-Operation | |
| Mechanical impact | Operation: 10G@11ms Non-operation: 30G@11ms |
|
| Machine Architecture | ||

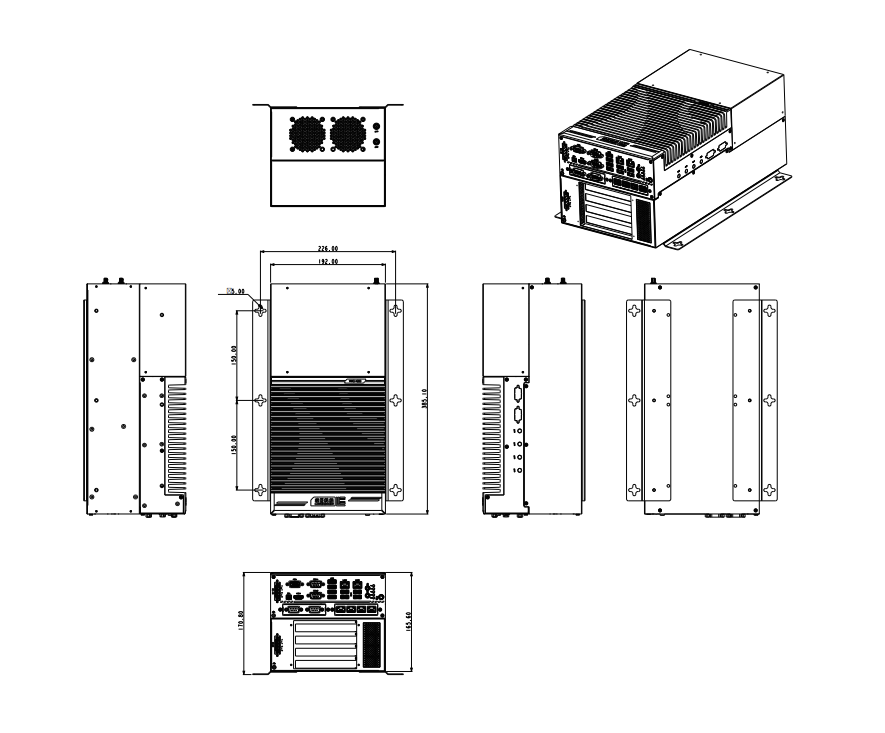

| Dimensions | 385*192*165.6 mm | |
| Certification | ||
| Certification | CE/FCC | |
Product Display
