High-Performance Compact Embedded BOX VMC-800HXK4P Series
Product Features
The VMC-800HXK4P series embedded box supports Intel® 6th, 7th, 8th, and 9th Generation Celeron, Pentium, and Core i3, i5, and i7 LGA1151 series processors with a TDP of 65W. It supports 2 DDR4 SO-DIMM memory slots, multiple display interfaces including HDMI and VGA, 6 LAN ports (4 of which support PoE), 6 COM ports, and multiple expansion interfaces. It supports 19–24V input voltage, with an optional 9–36V wide-voltage input. This product is suitable for use in various industries, including 3C, lithium-ion batteries, and semiconductors.
Specification parameters
| VMC-800HXK4P product specifications | ||
| System | ||
| processor | Intel® 6th, 7th, 8th, and 9th Generation Celeron, Pentium, and Core i3, i5, and i7 LGA1151 Series Processors, TDP 65W | |
| Chipset | H110 | |
| Memory | 2x DDR4 SO-DIMM 2133/2400/2666Mhz，up to 64 GB | |
| graphical | CPU integrated graphics card | |
| storage | 1x M.2 M-Key 2242/2280 SSD(SATA)，2x2.5''SATA 3.0 HDD/SSD | |
| operating system | Windows 7/10, Linux | |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interface | ||
| Network port | 1x Intel® I219V (10/100/1000 Mbps) PHY 5x Intel® I210AT (10/100/1000 Mbps; 4 of the LAN ports support PoE) |
|
| display | 1x HDMI: Maximum resolution 4096x2160@30Hz 1x VGA: Maximum resolution 1920x1200@60Hz Supports DVI/DP/DP++/HDMI |
|
| audio frequency | 1x Line-out，1x Mic-in | |
| Serial port | 2x RS232/RS422/RS485（COM1/COM2）, expandable to 4 RS232 ports | |
| Indicator Light | 1x HDD LED 2x COM1 LED for Rx and Tx 2x COM2 LED for Rx and Tx 1x Switch Button |
|
| USB | 4x USB3.0，4xUSB2.0 | |
| Reset Switch | 1x Reset Button | |
| Remote Switch | 1x Remote ON-OFF | |
| Power Connector | 1x DCIN 4-Pin WTB Phoenix Connector | |
| internal Interface | ||
| Expansion | 1x Mini-PCIe slot (USB 2.0/PCIe x1; the PCIe x1 signal is shared with the RJ1 POE Ethernet port; can be switched to Mini-PCIe via the BIOS) 1x M.2 M-Key 2242/2280 slot (SATA) |
|
| USB | 1xUSB2.0(Type-A) | |
| Serial Port | 4x RS232（COM3-6, Pin header） | |
| GPIO | 1x 16Bit GPIO | |
| SATA | 2xSATA3.0 | |
| Fan Connector | 1x SYSFAN，1x CPUFAN | |
| TPM | TPM1.2 (optional) | |
| environment | ||
| Operating temperature | -10°C to 55°C, 0.7 m/s airflow (65W CPU with industrial SSD, paired with a CPU fan cooler) -10°C to 55°C, 0.7 m/s airflow (35W CPU with industrial SSD) 0°C to 30°C, 0.7 m/s airflow (HDD) |
|
| Storage temperature | -40°C~85°C | |
| humidity | Operation humidity: 5%~95%, non condensing Storage humidity: 5%~95%, non condensing |
|
| Random Vibration | SSD: 5~500Hz, 1Grms operation | |
| Sine Wave Vibration | 5~500Hz,2G Non-Operation | |
| Mechanical impact | Operation: 10G@11ms Non-operation: 30G@11ms |
|
| Power Supply | ||
| Power Input | 1x DCIN 19–24 V power supply for the main unit (optional 9–36 V wide-range input) | |
| Selection Checklist | ||
| Model | Extension Interface | Machine Construction (excluding base bracket) |

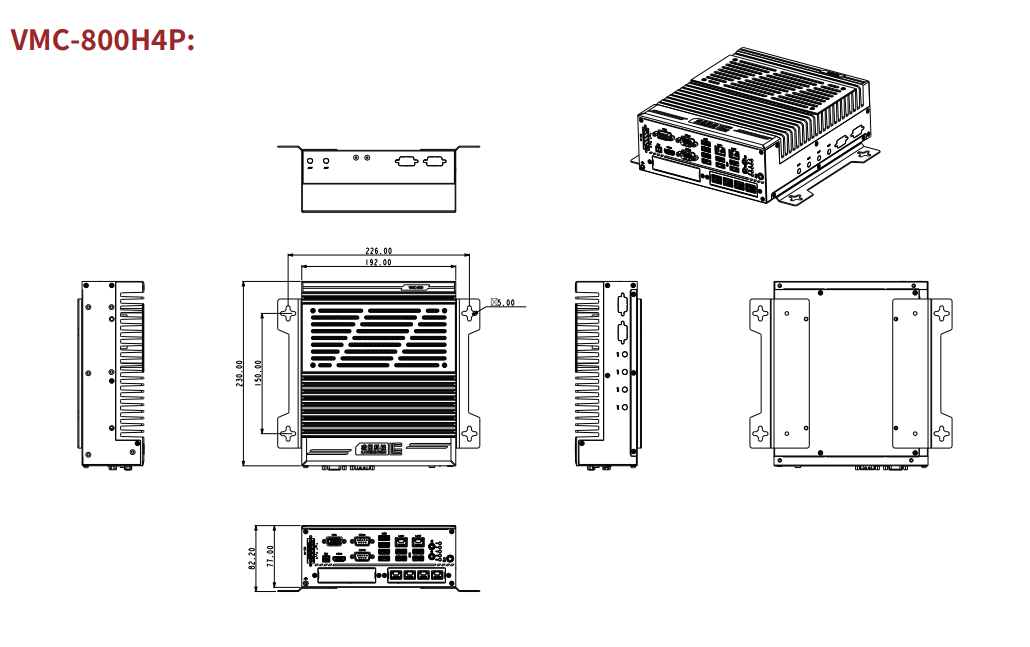

| VMC-800H4P | - | 230*192*77 mm |

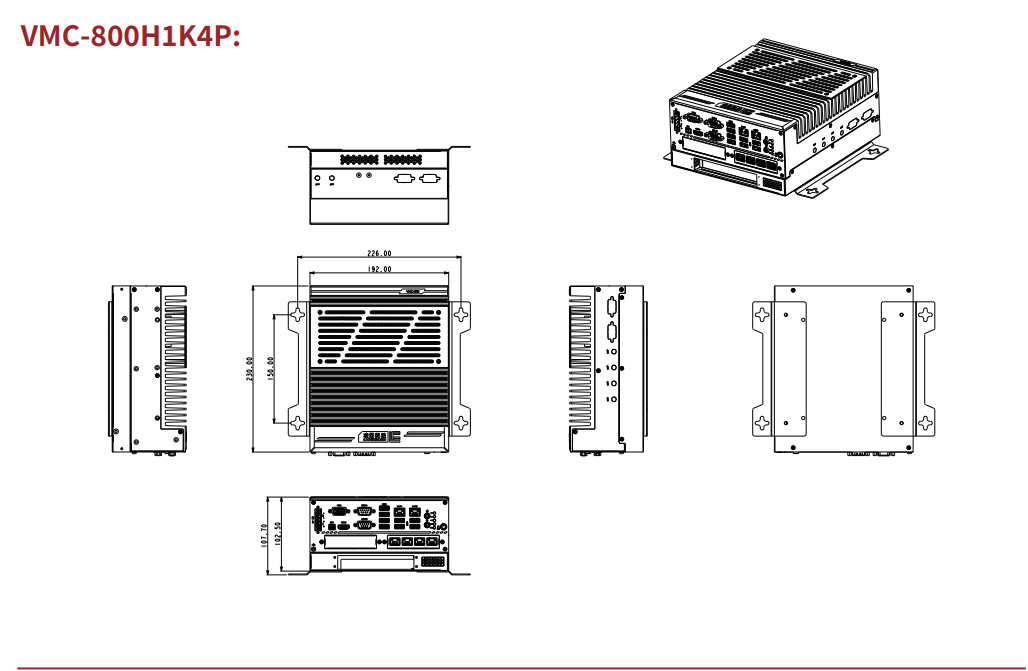

| VMC-800H1K4P | 1*PCIeX16 slot | 230*192*103 mm |

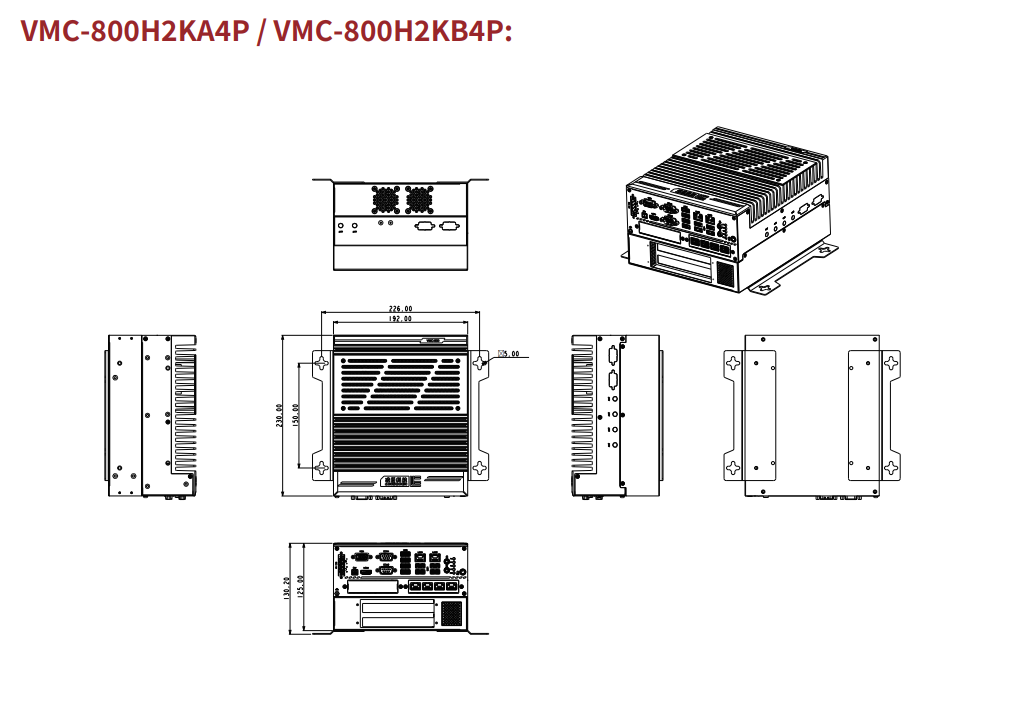

| VMC-800H2KA4P | 1*PCIeX16+1*PCI slot | 230*192*125 mm |
| VMC-800H2KB4P | 1*PCIe x16 + 1*PCIe x4 (x1 signal) slot | 230*192*125 mm |

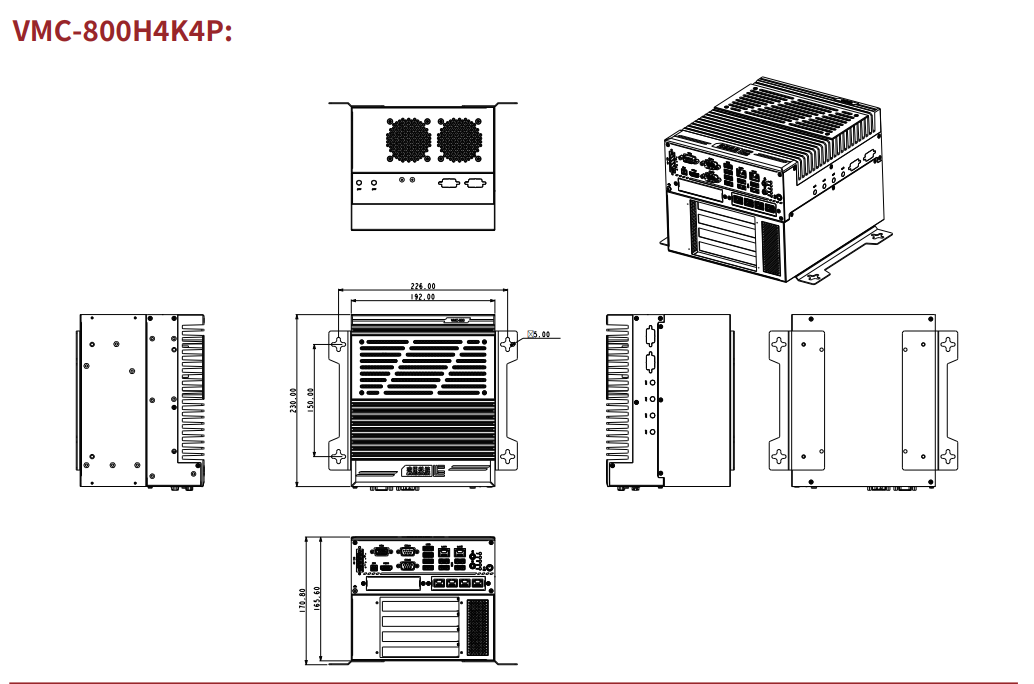

| VMC-800H4K4P | 1*PCIe x16 + 1*PCIe x4 (x1 signal) + 1*PCIe x4 (N/A) + 1*PCI (N/A) slot | 230*192*166 mm |
