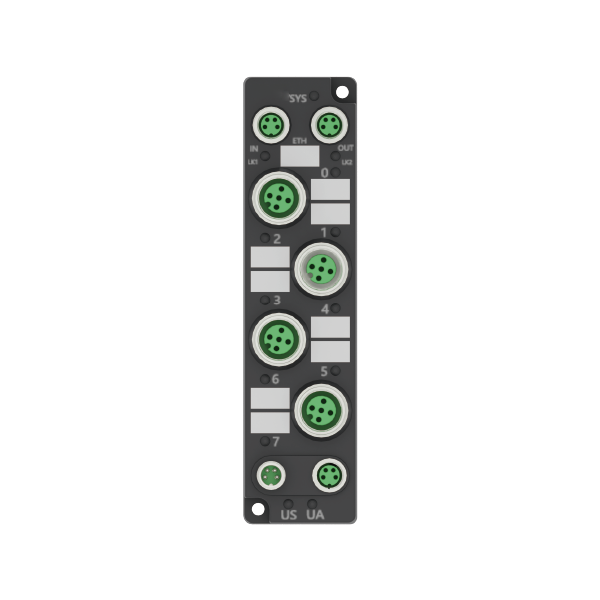

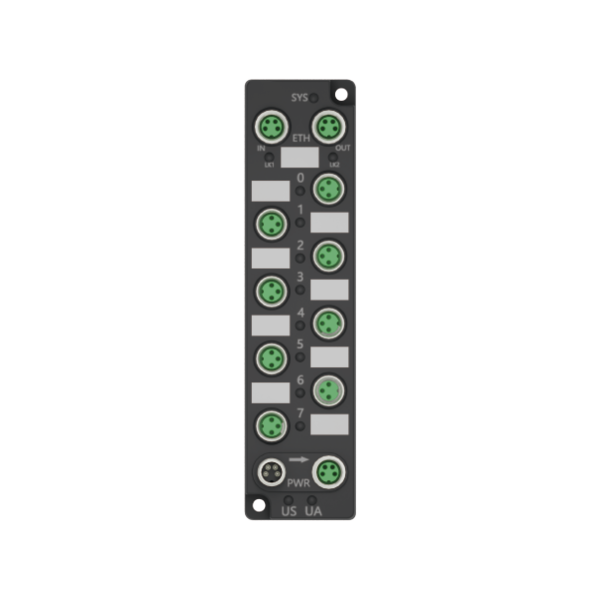

IP67 Series Fixed Point IO module

Tight and durable

Rugged structure, fieldbus terminal box can be directly installed on the machine;

Good sealing performance

The terminal box is made of cast resin, with protection grade of IP67, suitable for use in wet and dusty environment;

Compact appearance

Small external dimensions of terminal box reduce the installation space for customers;

Installed in place

The sensor and actuator are connected by screw connector (M8 or M12) for easy replacement;

product details

download

product description

Remote IO for various control and data collection applications. It is characterized by high stability, convenient network wiring and easy control. It is applicable to industrial control scenes with distributed layout and can greatly save time and cost of system integration of customers.

Remote IO of Lingchen Technology is divided into Ethernet, Pro ﬁ net, Ethernet IP and CC-LINK protocols according to bus; IP67 integrated bus IO module is a highly integrated single module designed with adapter module, I/O module and power module, with compact structure, stable performance and convenient wiring. It supports EtherCAT protocol. Photoelectric isolation and filtering technology is adopted for input and output interfaces, which can effectively isolate external circuit interference and improve stability and reliability of the system.

By combining remote IO of Lingchen Technology with PLC of Lingchen Technology, bus motion control card or bus IO master station card, the integrated solution with high stability and high cost performance can be realized for customers.

At present, it has been widely used in 3C manufacturing, lithium battery, semiconductor, photovoltaic, automobile, medical and other industries, and has been widely recognized and praised by customers.

Specification parameters

IP67 specifications
General Parameters
Bus protocol		EtherCAT
Interface type		Industry Ethernet
Attended mode		2*M8-4
Data transfer medium		5 Class 5 UTP or STP(STP recommended)
Communication speed		100Mb/s
Communication di.stance		100m (station to station)
Power input		24VDC
Electrical isolation		500V
Enviromental parameter
Working temperature		-25~60°C
Storuge temperature		-40~+85°C
Levels ofprotection		IP67
