Large load Z-axis lifting platform ZMS series

High precision linear guide, servo motor drive, grating closed-loop feedback, high reliability drive mechanism, with power-off brake function to prevent heavy objects from falling, long service life and other product features. By adopting a flat lifting mechanism, the load can be directly moved to maintain the shortest possible height within a long range of travel, optimizing the impact of system errors and helping to improve the overall performance
Structural characteristics such as body precision performance. Suitable for defect detection, optical lens detection, and precision machining in the semiconductor field, providing Z-axis precision positioning.

product details

download

Flat track XY platform series

Large load Z-axis lifting platform ZMS series specifications

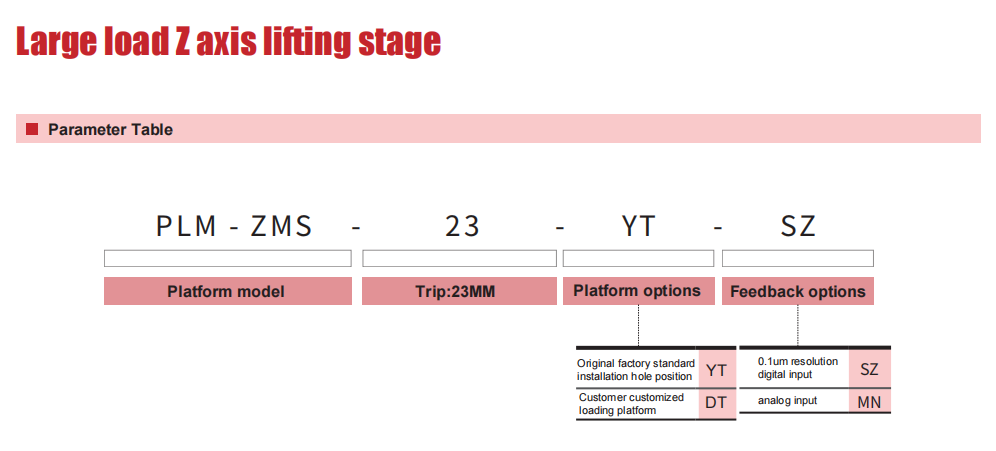

Parameter Table
Platform model	PLM-ZMS-23
Effective stroke	23 mm
Absolute positioning accuracy	±2 μm
Bi directional repetitive positioning accuracy	±1 μm
Straightness	±2 μm
resolution	0.1 μm
maximum acceleration	2g
Maximum speed	30 mm/s
Maximum horizontal load	60 KG
Platform quality	50 kg
Platform material	Aluminium
mean time between failures	27000 Hours

download
