LBX-1230-D Series Embedded Industrial Computers
Product Features
Product parameters
| LBX-1230-D series specification | ||
| System | ||
| Processor | Intel® 12th/13th Gen Core i3/i5/i7 Alder Lake-P processors (i3-1215U/i5-1235U/i7-1255U/i3-1315U/i5-1335U/i7-1355U) |
|
| Memory | 2x DDR5 SO-DIMM 4800/5200 MHz, up to 96 GB | |
| Graphics | Integrated GPU | |
| Storage | 1 x M-Key M.2 2242/2280 SSD（PCIex4,Gen4） | |
| Operating System | Windows 10, Linux | |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| External Interfaces | ||
| Ethernet Port | 1 x Intel® I219V(10/100/1000 Mbps) PHY 3 x Intel® I226V 2.5GbE (10/100/1000/2500 Mbps) |
|
| Display | 1x HDMI 2.0: Maximum resolution 4096x2304 @ 60Hz, 1x DP++: Maximum resolution 7680x4320 @ 60Hz VGA support, maximum resolution 1920x1200 @ 60Hz |
|
| Audio | 1 x Audio (Line-out & Mic-in 2-in-1) | |
| Serial Port | 4XRS232/RS422/RS485(COM1-COM4) ,2XRS232(COM5-COM6) | |
| USB | 3 x USB 3.2 Gen 1 (Type-A), 1 x USB 2.0 (Type-A) | |
| Reset | 1 x Reset button | |
| DIO | 32-bit DIO (16-bit DI/16-bit DO, isolation voltage 3750 Vrms), maximum current of 500 mA per DO channel, supports external power supply reverse polarity protection and short-circuit protection. | |
| Power | Power input: 12–24 V DC, 2-pin Phoenix connector; supports reverse polarity and short-circuit protection. |
|
| Internal Interface | ||
| Expansion Interfaces | 1 x B-Key M.2 3042/3052 Slot (USB 3.0/USB 2.0; USB 2.0 signal and 1 USB 2.0 signal on PH are multiplexed, with Nano SIM card support for 3G/4G/5G) 1 x E-Key M.2 2230 Slot (PCIe x1/USB 2.0) 1 x M-Key M.2 2242/2280 Slot (PCIe x4, Gen 4) 1 x Mini-PCIe slot (USB 2.0/PCIe x1; PCIe signal is multiplexed with the signal from the COM7/8 serial-to-PCIe conversion chip; defaults to the serial-to-PCIe conversion chip; a jumper cap allows selection between COM or Mini-PCIe support) |
|
| USB | 1 x USB 2.0 (Type-A), 2 x USB 2.0 (pin headers, one of which is shared with the B-Key) | |
| Serial Port | 2 x RS422/RS485 pin headers (COM7/8, mode selector) | |
| GPIO | 1x 8Bit GPIO | |
| 1 x SATA3.0 | ||
| TPM | TPM 2.0 (optional) | |
| Fan | 1x CPUFAN connector | |
| Environment | ||
| Operating Temperature | -10°C ~ 60°C (SSD), 0.7 m/s airflow | |
| Storage Temperature | -40°C ~ 85°C | |
| Humidity | Operating humidity: 5%–95%, non-condensing Storage humidity: 5%–95%, non-condensing |
|
| Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
| Mechanical Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
|
| Organization | ||

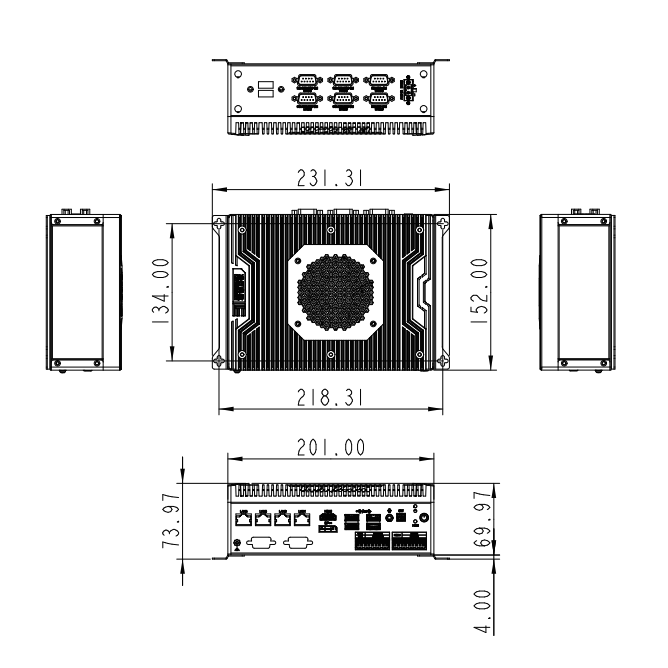

| Dimensions | 201*152*69.97 mm (excluding the base bracket) | |
| Certification | ||
| Safety Certification | CE | |
| Selection Checklist | ||
| CPU Fan | Model Name | Processor |
| With CPU Fan | LBX-1230F-D | i3-1215U/i5-1235U/i7-1255U/i3-1315U/i5-1335U/i7-1355U |
| Without CPU Fan | LBX-1230-D | i3-1215U/i5-1235U/i7-1255U/i3-1315U/i5-1335U/i7-1355U |
