LBX-J630 embedded industrial mini pc business fanless computer
Product Features
With the rapid development of the global scientific and technological revolution and industrial transformation, intelligent manufacturing has become the commanding height of the new round of global industrial competition and has gradually become an important support for the new industrial revolution. As the core equipment of modern production and high-speed logistics, AGV (Automated Guided Vehicle) has become an indispensable handling equipment with its flexible and efficient integration.
AGV unmanned transport vehicles are equipped with electromagnetic or optical automatic guidance devices, can travel along a predetermined guidance path, have safety protection and multiple transfer functions, are widely used in the industrial field, and do not require manual driving, relying on rechargeable batteries as a power source.
In the domestic market, with the continuous emergence of new industries, the demand for AGV continues to rise. Especially in the automation industries such as electronic automobiles and home appliances, AGV has broad application prospects and is expected to continue to occupy a major market share in the future.
As the core controller of the AGV, the industrial computer plays a vital role in data analysis and processing. It not only needs to achieve intelligent control goals and route planning, but also bears the responsibility of ensuring system stability and reliability. Therefore, in practical applications, the industrial computer must have strong computing power, excellent heat dissipation design and high anti-interference ability to ensure the reliable operation of the AGV.
The LBX-J630 series products launched by Lingchen Technology have shown significant advantages in many aspects:
1.High performance and low power consumption:
This series of products adopts J6412 processor, as an alternative to J1900. J6412 supports quad-core, turbo frequency can reach 2.6GHz, TDP is only 10W, performance is more than three times that of J1900, and it has both low power consumption and powerful computing ability.
This series of products adopts J6412 processor, as an alternative to J1900. J6412 supports quad-core, turbo frequency can reach 2.6GHz, TDP is only 10W, performance is more than three times that of J1900, and it has both low power consumption and powerful computing ability.
2.Rich interface design:

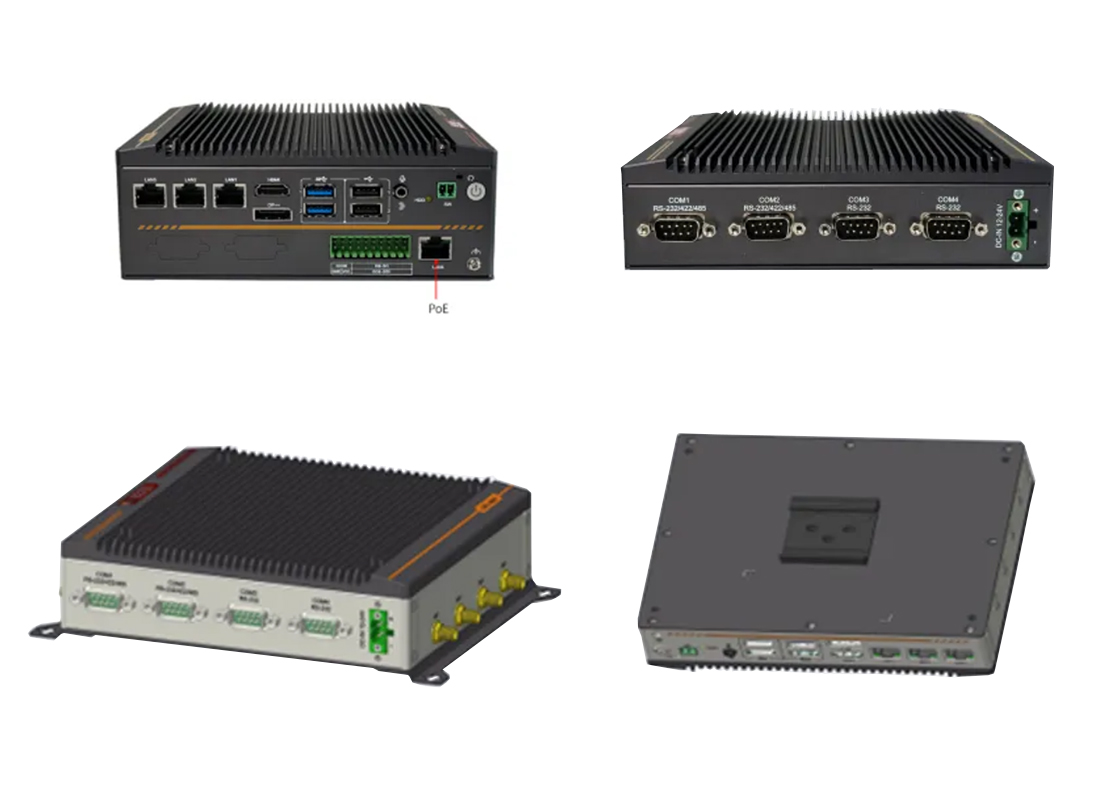

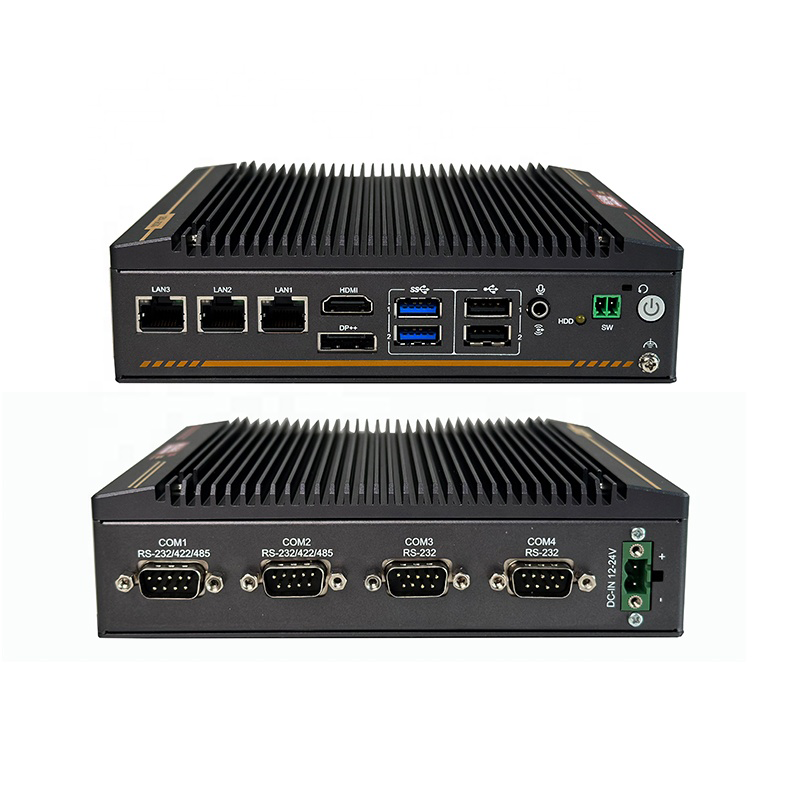

The LBX-J630 series provides a variety of external interfaces, including 3 display interfaces, 16-bit DIO, 7 USB, 4 COM ports, 4 LAN ports, etc. The internal interface supports M.2 2242/2280, Mini-PCIe, M.2 3042/3052, etc., which can meet the diverse application needs of customers on site. In addition, the basic product can also expand the PoE network port, DIO interface and other interfaces required by customers through BTB connection, showing good scalability.
The LBX-J630 series provides a variety of external interfaces, including 3 display interfaces, 16-bit DIO, 7 USB, 4 COM ports, 4 LAN ports, etc. The internal interface supports M.2 2242/2280, Mini-PCIe, M.2 3042/3052, etc., which can meet the diverse application needs of customers on site. In addition, the basic product can also expand the PoE network port, DIO interface and other interfaces required by customers through BTB connection, showing good scalability.
3.Multi-port design and PoE function:
This product supports up to 4 network ports, of which LAN4 supports PoE function, which can effectively reduce the complexity of wiring at industrial sites, improve work efficiency, and meet customers’ needs for multi-port applications.
This product supports up to 4 network ports, of which LAN4 supports PoE function, which can effectively reduce the complexity of wiring at industrial sites, improve work efficiency, and meet customers’ needs for multi-port applications.
4.Strict design verification:
The LBX-J630 series adopts a fanless heat dissipation design to prevent dust and particles from entering the chassis, thereby effectively improving the stability and service life of the product. In addition, the product has undergone a number of long-term tests, including performance, compatibility, power consumption, environmental reliability and EMC anti-interference, and can achieve 7x24 hours of stable operation in a temperature environment of -20 to 60°C, meeting the strict requirements of industrial sites for harsh environments such as high and low temperatures and high humidity.
The LBX-J630 series adopts a fanless heat dissipation design to prevent dust and particles from entering the chassis, thereby effectively improving the stability and service life of the product. In addition, the product has undergone a number of long-term tests, including performance, compatibility, power consumption, environmental reliability and EMC anti-interference, and can achieve 7x24 hours of stable operation in a temperature environment of -20 to 60°C, meeting the strict requirements of industrial sites for harsh environments such as high and low temperatures and high humidity.
5.Multiple installation methods：
This series of products supports multiple installation methods such as desktop, wall-mounted and slide rail, which can flexibly adapt to the different application requirements of customers’ sites.
This series of products supports multiple installation methods such as desktop, wall-mounted and slide rail, which can flexibly adapt to the different application requirements of customers’ sites.
Lingchen Technology’s LBX-J630 series of embedded industrial computers are designed based on the Intel J6412 processor platform and feature low power consumption, fanless cooling, multi-port design, flexible scalability, and high reliability. They can perfectly match the various requirements of AGVs and provide strong technical support for intelligent manufacturing and modern logistics.
Product parameters
| LBX-J630 product specifications | |
| processor | Intel Celeron J6412, The fundamental frequency is 2.0GHz (turbo frequency 2.6GHz), TDP 10W |
| Memory | 1xDDR4SO-DIMM 3200Mhz up to 32GB |
| graphical | CPU integrated graphics card |
| storage | 1xM-KeyM.22242/2280 (SATA) slot, 1x2.5-inch HDD (requires 2-layer expansion structure) |
| operating system | Windows 10, Linux |
| Watchdog timer | Programmable 255 levels timerinterval, from 1~255 sec/min |
| External Interface | |
| Network port | 2 xIntel® 1210AT (10/100/1000 Mbps) 1xIntel® 1225/226V2.5GbE (10/100/1000 Mbps) |
| display | 1xHDMI 2.0: Maximum resolution 4096x2160 @ 60Hz, 1xDP++: Maximum resolution 4096x2160 @ 60Hz |
| audio frequency | 1 xAudio (Line out&Mic in 2-in-1) ALC888S, co-lay897 |
| Serial port | 2xRS232/RS422/RS485 2x RS232 |
| USB | 2xUSB3.1(Type-A),2xUSB2.0(Type-A) |
| Reset | 1x Reset button |
| power supply | Power input 12-24VDC, 2pin Phoenix terminal |
| internal Interface | |
| Expansion | 1xB-Key M.2 3042/3052 (USB3.0) (With Nano SlM card supporting 3G/4G/5G) |
| 1 xE-Key M.2 2230 slot (PCle xl/USB2.0) | |
| 1 x M-Key M.2 2242/2280(SATA) SSD slot | |
| USB | 1xUSB2.0(Type-A)，2xUSB2.0 pin header |
| SATA | 1xSATA3.0 |
| TPM | TPM2.0 (optional) |
| environment | |
| Operating temperature | -10°C~60°C |
| Storage temperature | -40°C~85°C |
| humidity | Operation humidity: 5%~95%, non condensing |
| Storage humidity: 5%~95%, non condensing | |
| Vibration | SSD:5~500Hz,2Grmsoperation |
| HDD: 5~500Hz, 1Grms operation | |
| Mechanical impact | Operation:10G@11ms |
| Non-operation:30G@llms | |
| Specification | |

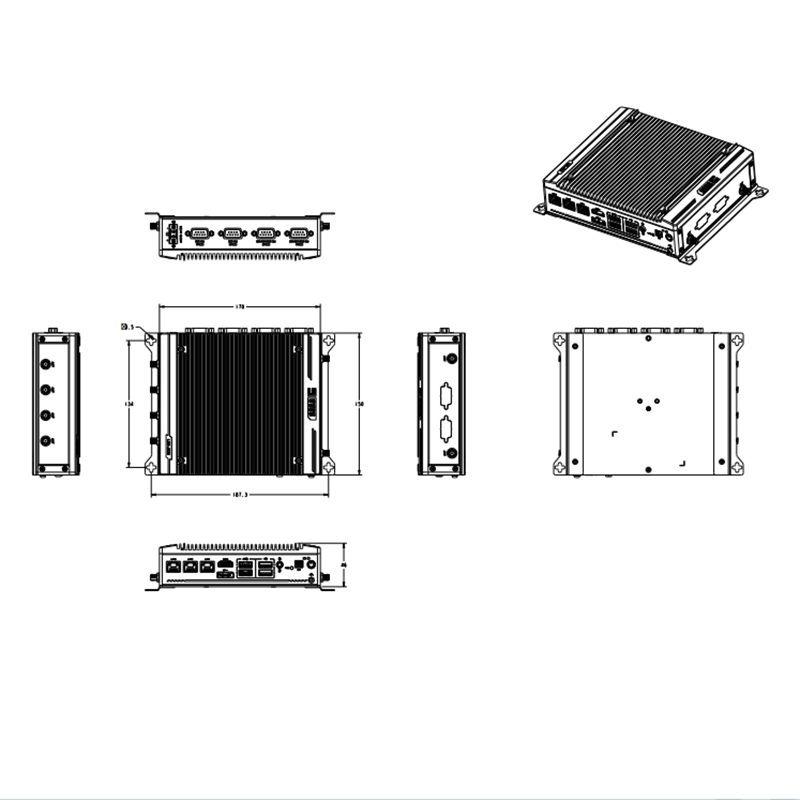

| size | 170 * 150 * 46 mm (excluding base bracket) |
| authentication | |
| safety certification | CE, FCC |
