LC760 Series Digital AC Servo Motor Driver

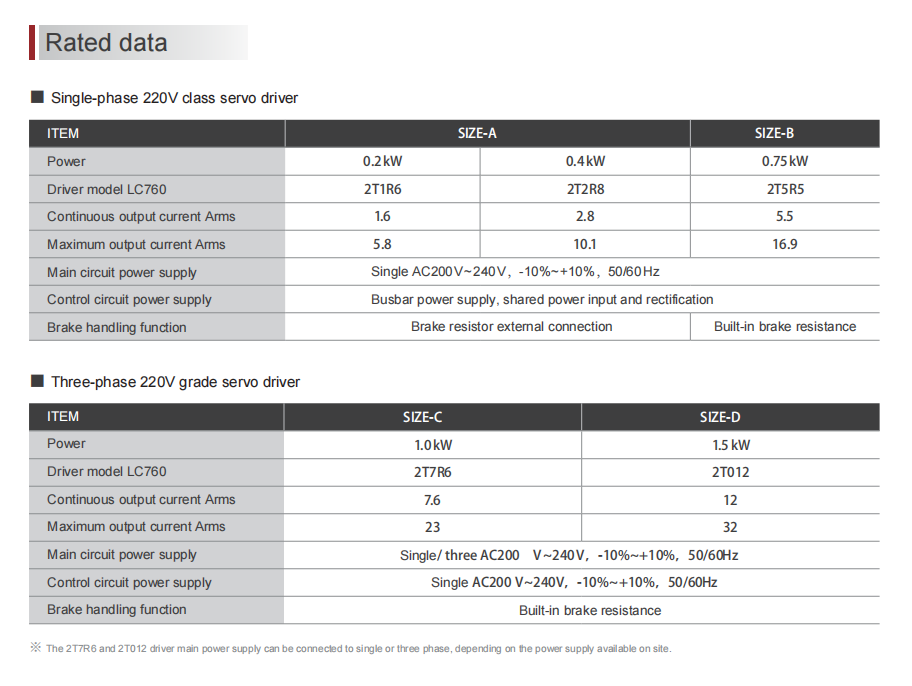

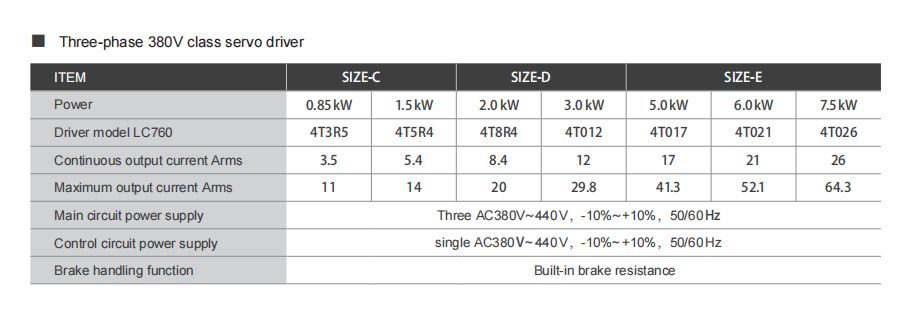

Lingchen Company is proud to introduce its high-performance LC760 series servo drive products, designed to meet the demands of the modern automation industry. This series covers a wide power range from 50W to 7.5 kW, suitable for various power supply systems, including single-phase and three-phase power. The LC760 series not only features a space-saving design but also demonstrates outstanding servo control performance, ensuring fast, smooth, and precise positioning.

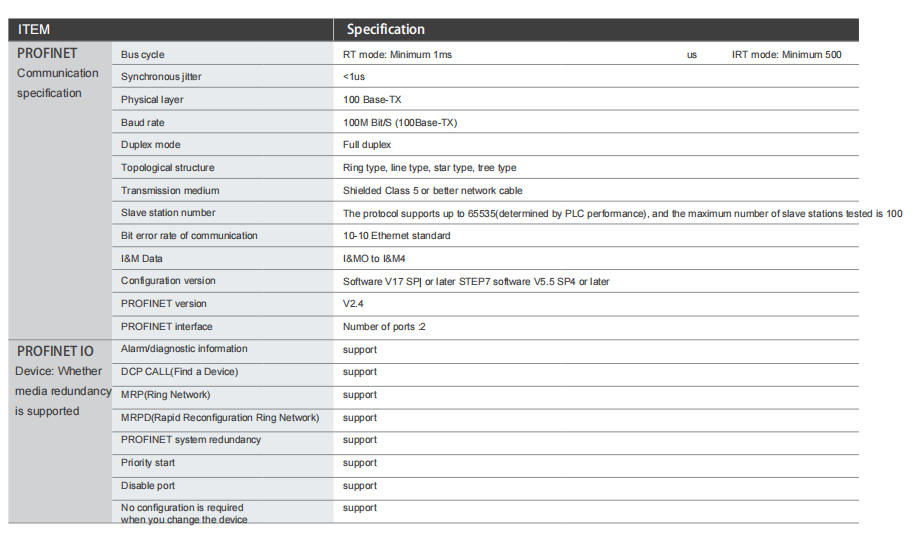

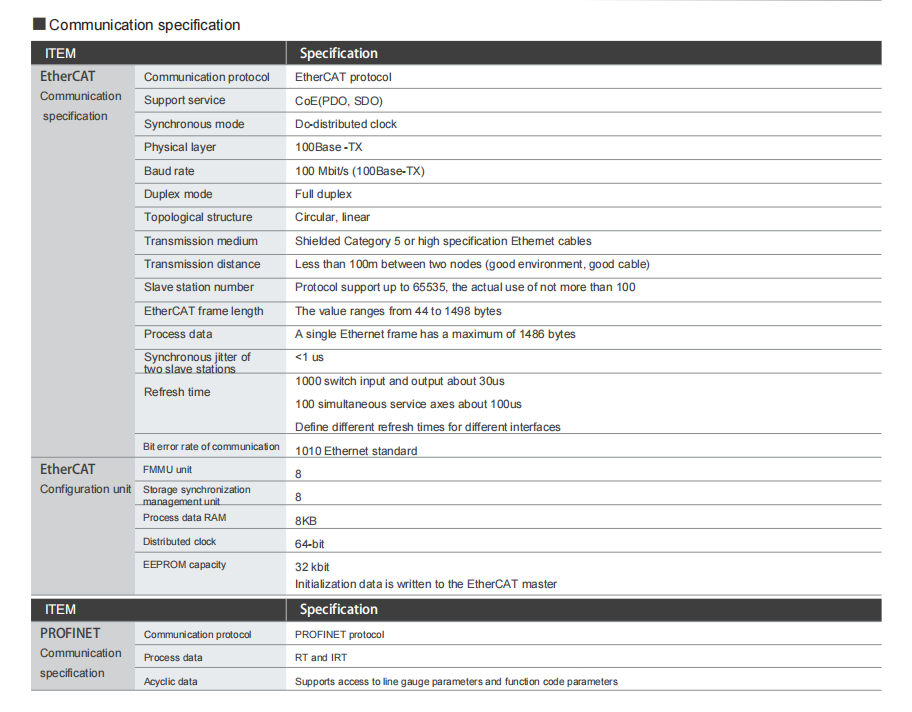

The LC760 series servo drives and LCMK1 servo motors work in perfect harmony to form a high-performance and user-friendly servo system. This system is widely applicable across various industries and is compatible with mainstream PLCs such as Beckhoff and Omron, providing users with efficient and convenient motion control solutions. The LC760 series is divided into two communication versions, EtherCAT, PROFINET and Pulse ,based on different application needs. Users can achieve real-time transmission of user data, process data, and diagnostic data through a single cable, greatly simplifying system wiring and maintenance.

The LCMK1 series motors are designed as naturally cooled permanent magnet synchronous motors, dissipating heat through the motor surface. They support a maximum protection level of IP67, ensuring stable operation in various environments. Additionally, the LCMK1 series motors support 3.5 times overload capacity, allowing for flexible combinations with the LC760 series drives to form an efficient servo system that meets the demands of different application scenarios.

The LC760 series servo drive products offer excellent performance with a variety of high-end features, creating faster, more stable, and more precise driving scenarios for worry-free production. Specific performance characteristics include:

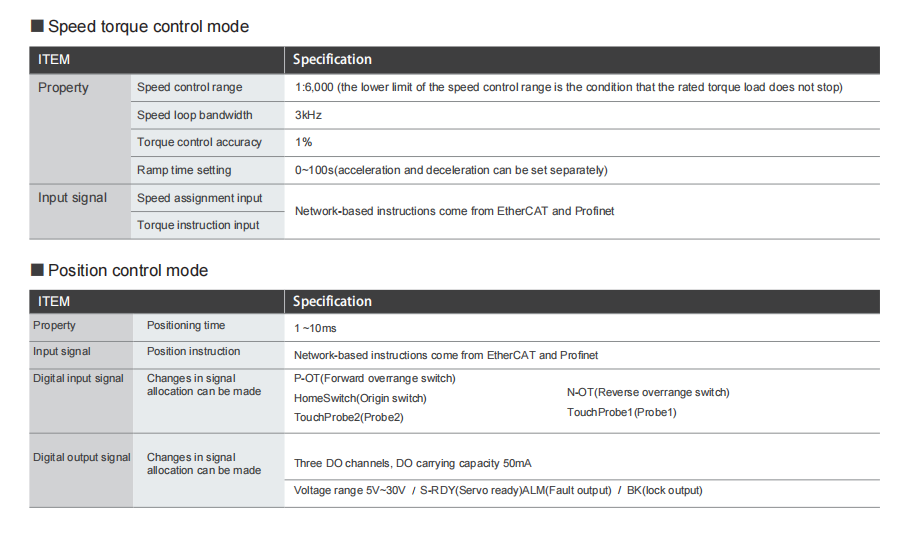

·High Response: Equipped with a 3 kHz speed loop bandwidth, ensuring quick response.

·High Precision: Supports 23-bit resolution absolute encoders for precise positioning.

·High Speed: Supports a 125 μs synchronization cycle, enhancing system efficiency.

·High Compatibility: Compatible with various mainstream bus controllers, providing strong adaptability.

·High Dynamics: The PN version supports DSC control mode, meeting high dynamic application requirements.

The design of the LC760 series fully considers the user experience, ensuring quick and simple connections to the control system, with minimal adjustments required for stable operation. Features include:

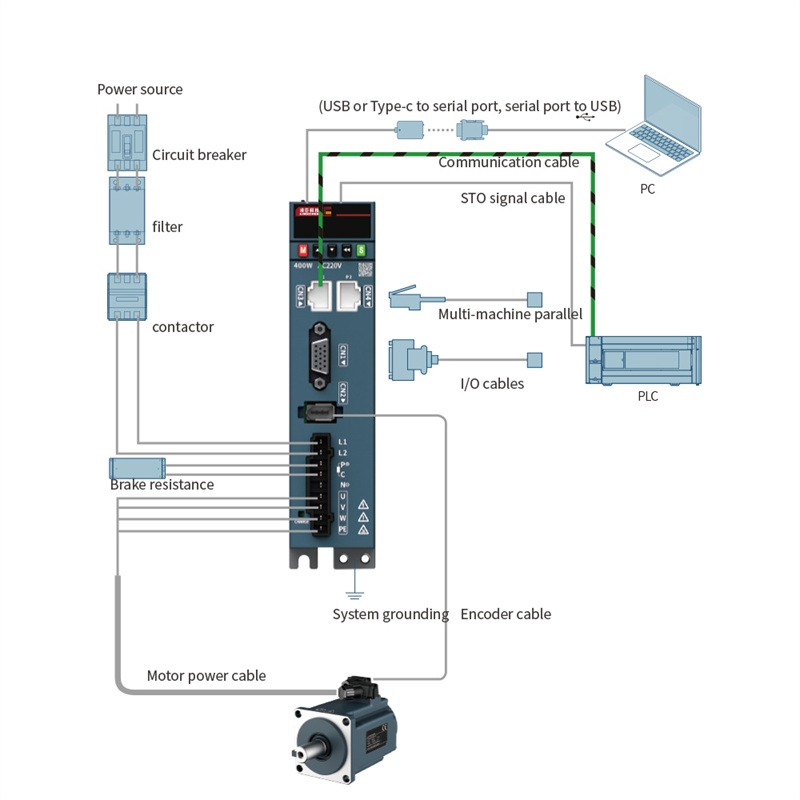

·Integrated Communication Interface: Enhances wiring efficiency and simplifies installation.

·Compact Design: Meets installation requirements in tight spaces.

·Easy Connection and Use: Adopts type-C debugging cable to enhance debugging efficiency.

·Bus Servo Parameter Copying: Convenient and quick, saving time.

·One-Click Upload/Download & FOE Function: Enhances production efficiency and simplifies operations.

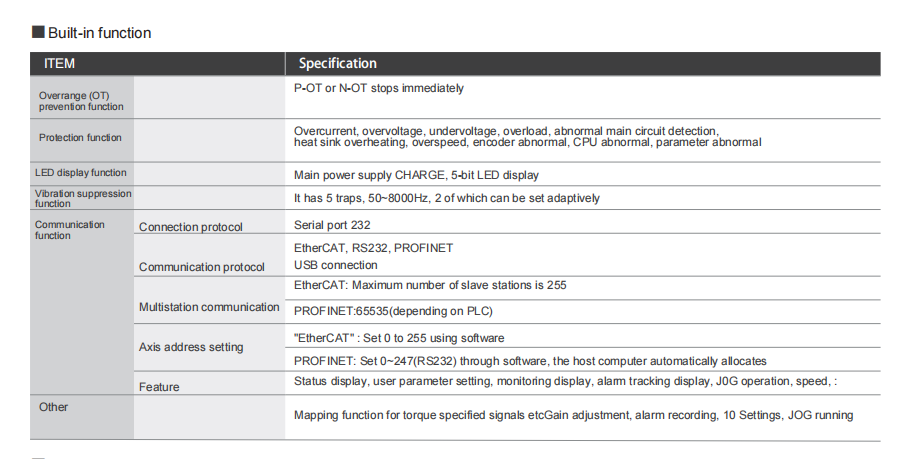

The LC760 series servo drive products also excel in safety and reliability. Their design includes:

·Built-in Dynamic Braking Function: Ensures system safety.

·Supports STO (Safe Torque Off) Function (Optional): Further enhances safety.

·High-Quality Motor Bearings: Extend service life and reduce maintenance costs.

·Stable Operation in Harsh Environments: Ensures long-term reliability of the equipment.

·CE Certification: Meets export requirements for equipment, ensuring compliance in international markets.

Lingchen Company offers a wide range of drive series products and accessories, allowing users to easily construct the systems they need. Products include:

·EtherCAT and PROFINET Communication Versions: Meeting different application needs.

·Standard and Safety Types (STO): Providing diverse options.

·Perfectly Matched Drive/Motor Product Combinations and Accessories: Facilitating user selection and enhancing system integration efficiency.

Lingchen Company is committed to providing flexible and efficient product services, offering in-depth support from selection to maintenance. Our service features include:

·24-Hour Response, 48-Hour Problem Resolution: Ensuring timely handling of customer issues.

Quick Response for Product Management and After-Sales Maintenance: Providing customers with a worry-free user experience.
