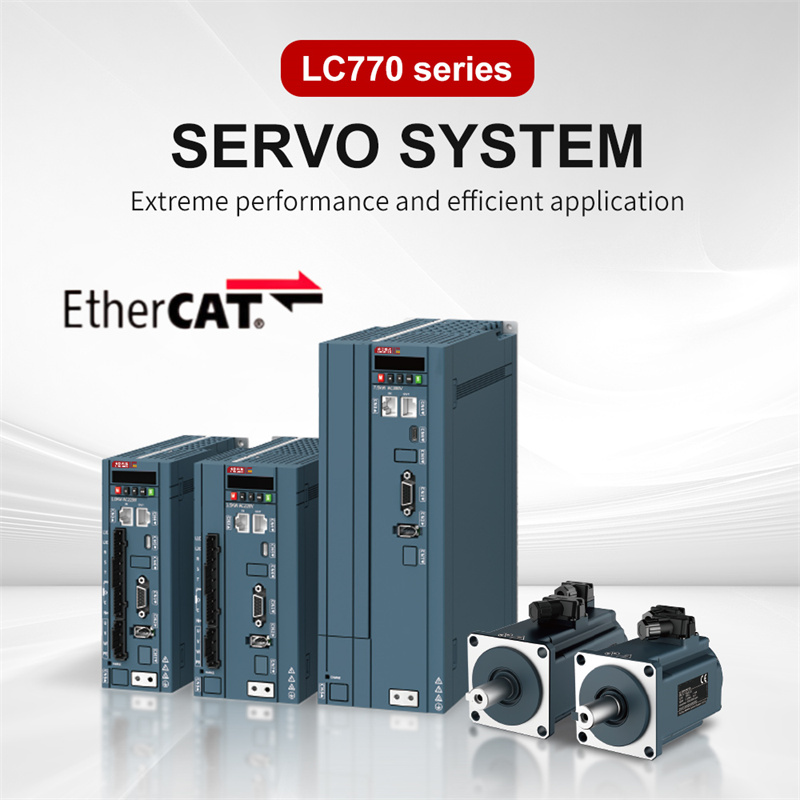

LC770 Series AC Servo Motor Drive
product description
The LC770 is a new generation ofhigh-performance servo drive systems dedicated toOptimize between greater productivity, higher production efficiency, and lower production costsConfigured to deliver drive solutions with the best balance of performance and cost to help your business succeed. The LC770 system includes the LC770 series servo drives and the LCMK1/LCMA1 series servo Motor, power range 50W to 7.5kW, using EtherCAT and pulse command mode.Designed to meet a variety ofstandard applications.
Available in 770N(EtherCAT) and 770P(shock) communication versions,the LC770 family provides reliable, accurate positioning performance for a wide range of applications.

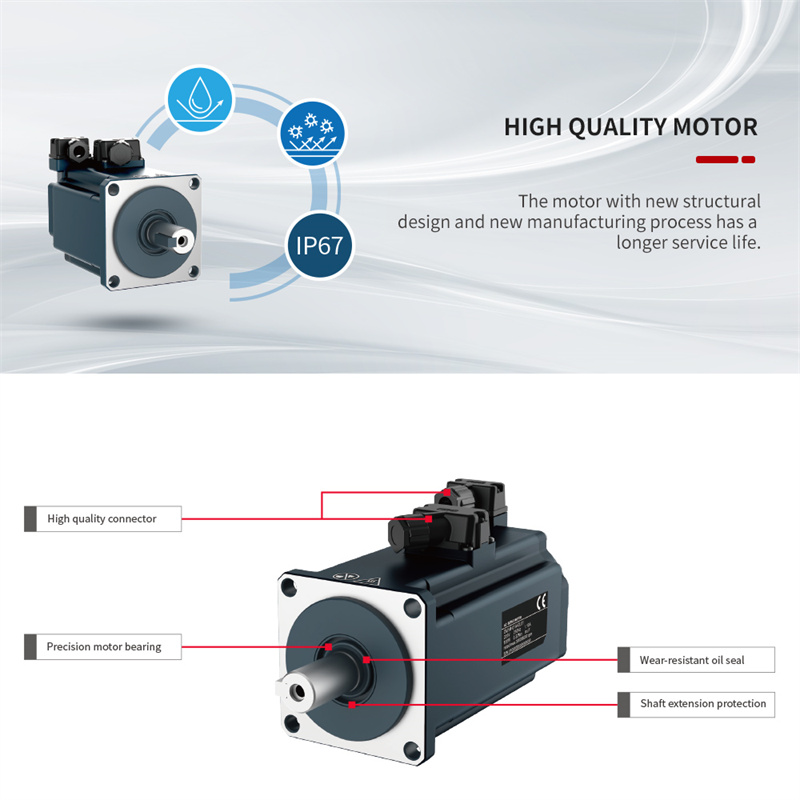

The LCMK1 series is a naturaly cooled permanent magnet synchronous motor that dissipates heat from the motor surface and supports up to lP67 protection. With an overload capacity of up to 350%, it can easily cope with high load torque demands and significantly improve customer productivity.
1.Excellent performance
Excellent performance and a variety of high-end functions, build faster,more stable, more accurate drive scenarios, so that production womy-free.
`High response :3.2 kHz speed loop bandwidth
`High precision: Support 23/26 bit absolute encoderus synchronization cycle
`High speed: 125 supported
`High adaptation: Suitable for multiple mainstream bus controllers
`High efficiency: High dynamic accuracy to achieve higher productivity
2.Reliable operation
Safe functional design, high quality device selection, perfect testing and verification.
`Built-in dynamic braking function
`Support STO safe torque stop function (optional)
`High quality motor bearings extend service life
`The drive operates stably in harsh environments
`Pass CE certification to meet the export requirements of equipment
3.Easy to use
The connection to the control system is quick and simple, and stable operation can be achieved without too many adjustments.
`Integrated communication interface to improve wiring efficiency
`Compactvolume design to meet theinstallation requirements ofdemanding Spaces
`Easyto connect and use, using USB cable to improve debugging efficiency
`Bus servo parameter replication, convenient and fast
`Ine click download &FOE function to improve productivity
4.Product abundance
With a wide range of drive products and accessories, it is easy to build the system your customers need.
`EtherCAT, pulse type two communication versions
`Standard, Secure(STO)
`Perfectly matched drive/motor product portfolio and accessories for easy selection
5.Service efficiency
From selection to deep support formaintenance,we aim to fully meet or even exceed customerexpectations.
·24 hours response, 48 hours to solve the problem
·Quick response to product management and after-sales maintenance
·full support to optimize yourproductivity
Specification parameters
| LC770Series specifications | |
| ITEM | Specification |
| Control mode | IGBTPWM control, sine wave current drive mode 220V, 380V: single-phase or three-phase full-bridge rectifier |
| Encoder feedback | 23/26 bit multi-turn absolute encoder (Can be used as single-turn absolute encoder without battery) |
| Service temperature | 0~+55' °C (10% derating for every 5'C rise above 45°C) |
| Storage temperature | -40~+70℃ |
| altitude | The highest altitude is 2000m, and the derate is 1% for every 100m rise above 1000m |
| Class of protection | IP20(except terminal "IP00") |
