LCT5070WE HMI Human Machine Interface 7 Inch Touch Panel
Product Features
Introducing the Lingchen Industrial Touch Screen LCT5000 Series, the next generation of Internet of Things (IoT) human-machine interfaces (HMIs). Building upon the robust features of the Lingchen Touch Screen 4000 Series, this new model is designed with an industrial-grade ABS plastic housing, ensuring low cost and high reliability.
The LCT5000 Series boasts a completely new mold design that incorporates a more practical downward cable outlet, enhancing installation flexibility. Additionally, the redesigned front panel not only improves functionality but also elevates the aesthetic appeal, offering a more modern and attractive look. Users can also choose from models with higher resolution options, catering to various display needs.
For those looking to enhance their operational capabilities, the LCT5000 Series can be easily upgraded to an IoT HMI by selecting the optional FLink IoT module. This upgrade allows users to access the full suite of services provided by the Lingchen Industrial IoT Cloud Platform, enabling seamless connectivity and data management for smarter industrial operations.
With the LCT5000 Series, experience the perfect blend of advanced technology, reliability, and user-friendly design.The Lingchen HMI series is your unique choice for achieving automation engineering excellence. With its efficient PLC communication, smooth processing capabilities, rich basic controls, comprehensive alarm functionalities, convenient recipe management, user-friendly data archiving, robust user permission management, and secure operation logging, it is designed to meet the demands of modern industrial applications. Choose Lingchen HMI for a reliable and advanced solution to your automation needs.
Product parameters
| LCT5070WE specifications | ||
| Hardware Parameters | Display | 7” 16:9 TFT LCD Screen |
| Resolution | 1024×600 | |
| Color | 24-bit | |
| Brightness | 350 cd/m² | |
| Backlight | LED | |
| LCD Life | 50000 hours | |
| Touch Screen | 4-line Industrial Resistive HMI | |
| CPU | 1G ARM Cortex-A8 | |
| Memory | 256MB FLASH+512MB DDR3 | |
| RTC | RTC Built-in | |
| Ethernet | 1-line 10M/100M adaptive | |
| SD Card | Support | |

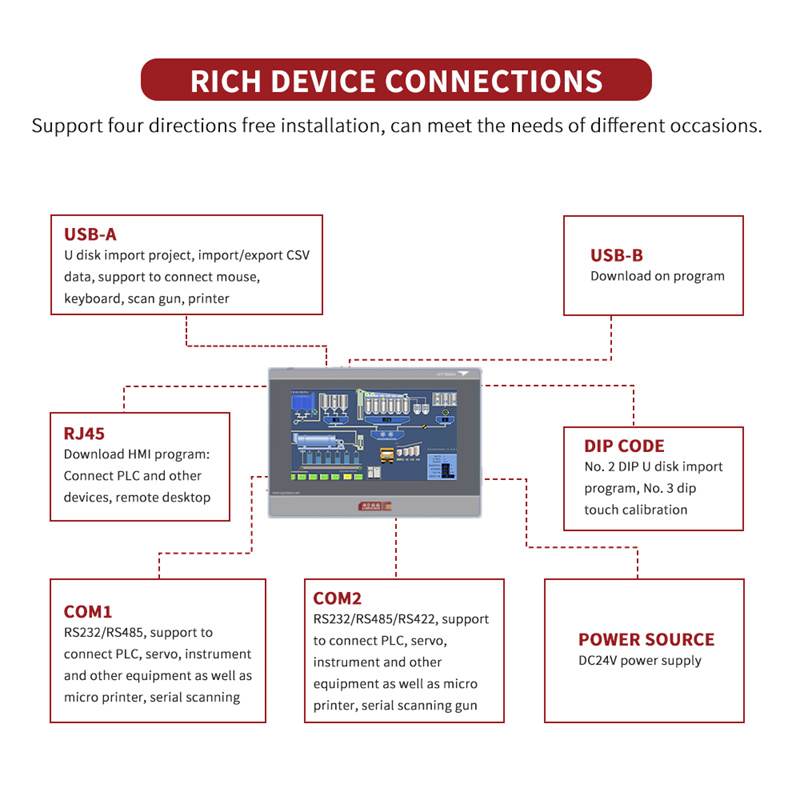

| USB Port | 1 USB Slave 2.0 Port,1 USB Host 2.0 Port | |
| Program Downloading | USB Slave/U-disc/Ethernet | |
| Serial Communication Port | COM1:RS232/RS485/RS422 COM2:RS485 COM3:RS232 | |
| LCD Viewing Angle （T/B/L/R） | 85'/85'/85'/85' | |
| Specifications | Rated Power | < 10W |
| Rated Voltage | DC24V,working range DC 9V~28V | |
| Power Protection | With lightning and surging protection | |
| Allowable power-off time | < 5mS | |
| Certifications | CE: Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards RoHS: Comply with RoHS EMC: Lightning surge±1KV, group pulse±2KV Electrostatic contact 4KV, air discharge:8KV | |
| Environment Requirement | Working Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ | |
| UV-Anti | It prohibits working under strong ultra-violet radiation environment，such as direct sunshine. | |
| Environment | 10~90%RH (non-condensing) | |
