LCT5100WE Industrial HMI Human Machine Interface 10 Inch Touch Panel
Product Features
Human-machine interfaces (HMIs) are revolutionizing the way we interact with technology, making data visualization and machine intelligence more accessible than ever before.
1.Data Visualization and Machine Intelligence:
The integration of HMIs allows for a seamless transformation of complex data into visual formats that are easy to understand. This capability empowers operators to make informed decisions quickly, enhancing overall operational efficiency. By leveraging advanced analytics and real-time data display, businesses can optimize their processes and improve productivity.
2.Touch Screen HMIs Replace Physical Buttons:
The advent of touch screen technology in HMIs has significantly changed the landscape of machine control. Touch screens provide a more intuitive and user-friendly interface, allowing users to interact with machines through simple gestures rather than relying on traditional physical buttons. This not only simplifies the user experience but also reduces wear and tear on mechanical components, leading to lower maintenance costs and increased reliability.
3.IoT HMIs Enable Remote Management:
The evolution of HMIs into IoT-enabled devices has further transformed industrial operations. With IoT HMIs, operators can monitor and control machinery remotely, eliminating the need for physical presence on-site. This capability is particularly beneficial in today’s fast-paced industrial environment, where quick responses to issues can prevent costly downtime. Remote access allows for real-time data analysis, troubleshooting, and adjustments, ensuring that operations run smoothly and efficiently.
In summary, the integration of human-machine interfaces is paving the way for smarter, more efficient industrial operations. By enabling data visualization, replacing physical controls with touch technology, and facilitating remote management through IoT capabilities, HMIs are setting a new standard for how we interact with machines in the modern industrial landscape.
Product parameters
| LCT5100WE specifications | ||
| Hardware Parameters | Display | 10.1” 16:9 TFT LCD touch Screen |
| LCD Viewing Angle （T/B/L/R） | 85'/85'/85'/85' | |
| Resolution | 1024×600 | |
| Color | 16-bit | |
| Brightness | 400 cd/m² | |
| Backlight | LED | |
| LCD Life | 50000 Hours | |
| Touch Screen | 4-line Industrial Resistive Touch Screen | |
| CPU | 4-core 1.2G Cortex-A53 Processor | |
| Memory | 8GB FLASH+1GB DDR | |
| RTC | Built-in | |
| SD Card | Micro SD (TF) Card | |
| Ethernet | 1-line 10M/100M adaptive | |
| USB Ports | 1-USB Slave 2.0 port, 1-USB Host 2.0 port | |
| Program Downloading | USB Slave/U-disc /Ethernet | |

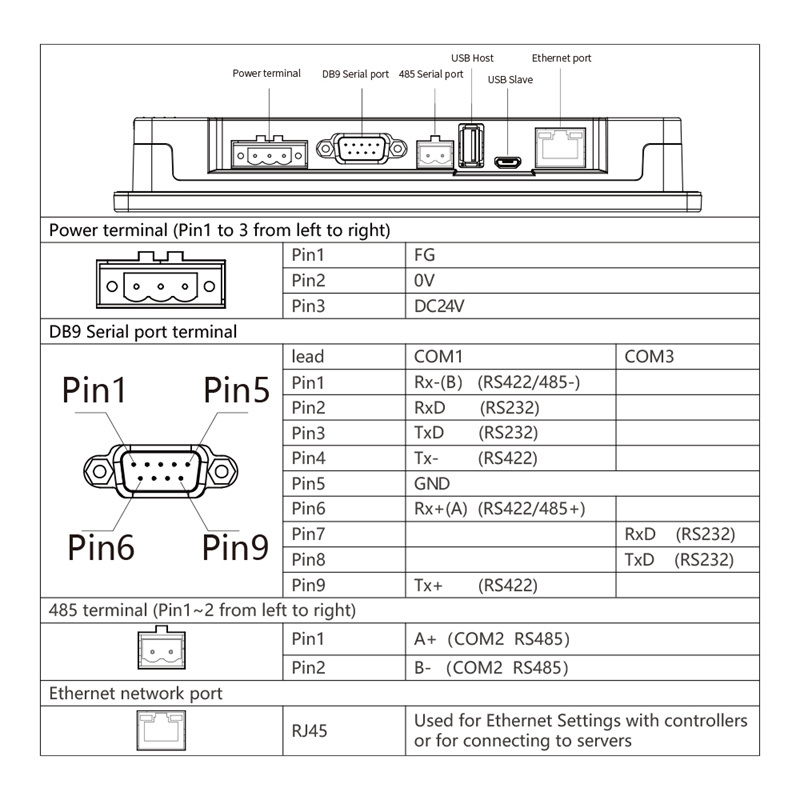

| Serial Communication Port | COM1：RS232/RS485/RS422； COM2：RS485/RS422 COM3：RS232 | |
| Specifications | Rated Power | < 10W |
| Rated Voltage | DC24V,working range DC 9V~28V | |
| Power Protection | Protect from lightning and surging. | |
| Allowable power-off time | < 5mS | |
| Certification | CE: Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards RoHS: Comply with RoHS EMC: Lightning surge±1KV, group pulse±2KV Electrostatic contact 4KV, air discharge:8KV | |
| Environment Specifications | Working Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| UV-Anti | It prohibits working under strong ultra-violet radiation environment， such as direct sunshine. | |
| Environment Humidity | 10~90%RH (non-condensing) | |
| Anti-vibration | 10~25Hz(X/Y/Z direction 2G/30minutes) | |
| Cooling | Natural Cooling | |
| Mechanical Parameters | Installation | Embedded Installation/VESA Installation |
| Protection | Front panel: comply to IP65 (based on embedded installation); Back cover: comply to IP20 | |
| Mechanical Structure | Aluminum alloy housing | |
| Cutout Size | 260mm×202mm | |
| Dimension | 274mm×214mm×39mm,thickness:26mm (without expansion) | |
| Weight | About 1450g | |

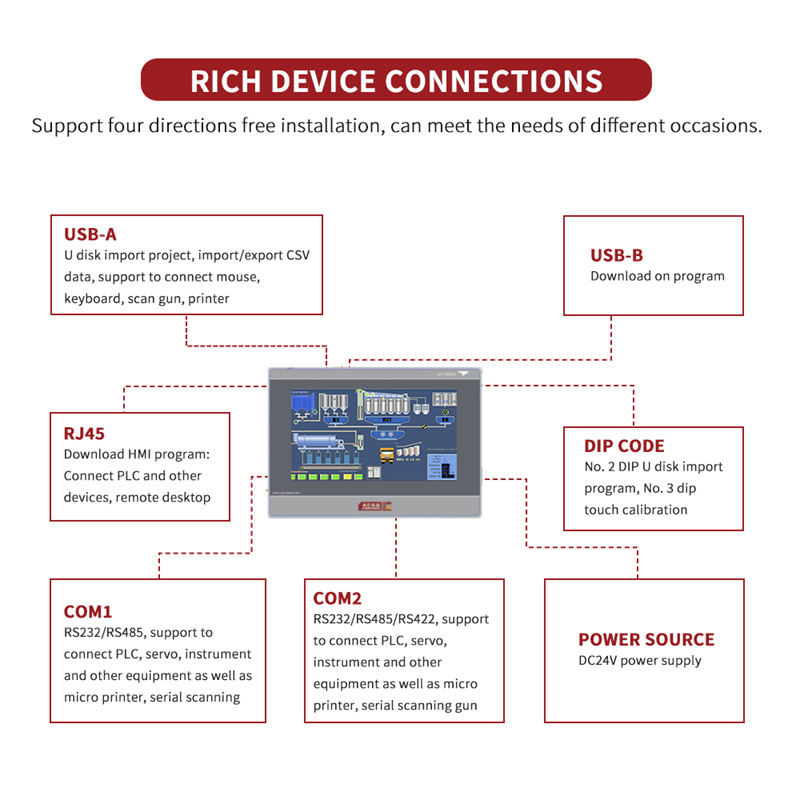

Product Display
