LCT5156WE Touch Screen HMI 15.6 Inch Touch Panel
Who is Lingchen? Can I trust a new supplier?
Suzhou Lingchen acquisition computer Co. LTD was established in 2006 and is located in suzhou city jiangsu provinceChina,enjoying convenient transportation and beautiful environment. Our company covers an area of 25000 square meters and has 420 employees. Our main products include industrial computer, PLC,Motion control card,remote lO,linear motor.Besides, we are making great efforts to develop new products to meet different requirements. In order to provide customers with satisfactory products and services, we have established a modern quality management system according to international standards.Our company has oscilloscope,high and low temperature test chamber.Motion control test bench equipment to strictly control the product quality.

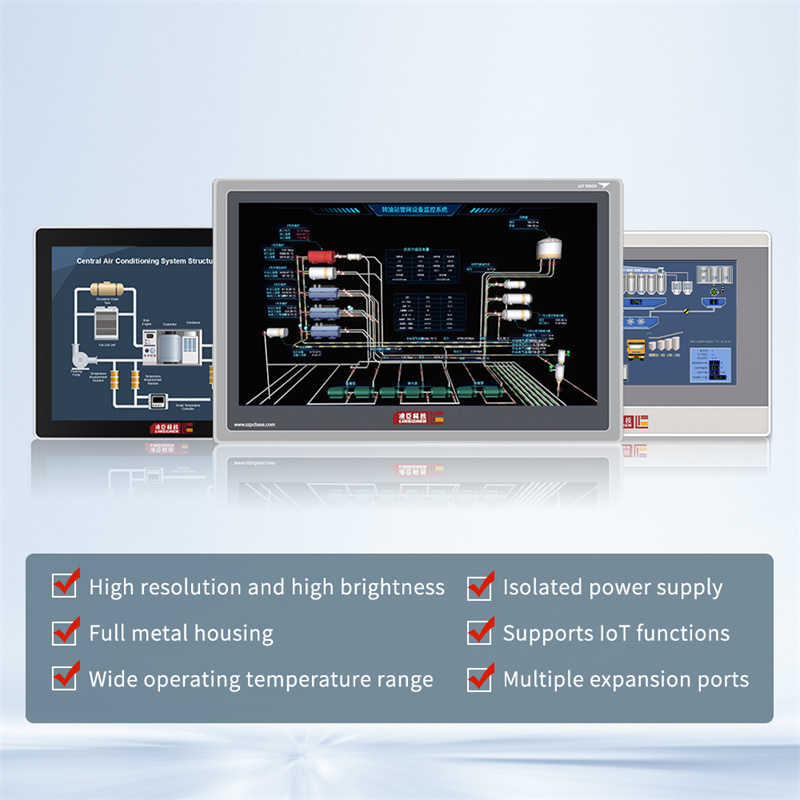

Product Features
The LCT series represents an innovative design in the industry by seamlessly integrating IoT gateways with human-machine interfaces (HMIs). This groundbreaking approach aims to provide customers with a more economical and convenient HMI solution that meets the demands of modern industrial applications.
1.Human-Machine Interaction:
At the core of the LCT series is the focus on enhancing human-machine interaction. By creating intuitive interfaces, users can easily navigate and control machinery, leading to improved operational efficiency. The design prioritizes user experience, ensuring that operators can quickly access the information they need and make informed decisions.
2.Internet of Things (IoT) Integration:
The LCT series is equipped with advanced IoT capabilities, allowing for real-time data collection and analysis. This integration enables businesses to monitor their operations continuously, facilitating proactive maintenance and reducing downtime. With IoT technology, users can gain insights into machine performance and operational trends, leading to better resource management and increased productivity.
3.VNC Functionality:
The inclusion of Virtual Network Computing (VNC) functionality further enhances the capabilities of the LCT series. This feature allows users to remotely access and control their HMIs from anywhere, providing flexibility and convenience. Whether troubleshooting an issue or adjusting settings, operators can manage their systems without being physically present, which is especially valuable in today’s fast-paced industrial environment.
4.Remote Monitoring:
The LCT series also supports comprehensive remote monitoring capabilities. This allows operators to keep an eye on their machinery and processes in real-time, ensuring that any potential issues are identified and addressed promptly. Remote monitoring not only enhances operational efficiency but also contributes to safety by reducing the need for personnel to be on-site in potentially hazardous environments.
In summary, the LCT series combines IoT gateways and human-machine interfaces in a unique and innovative way, providing customers with a cost-effective and convenient HMI solution. With a focus on human interaction, IoT integration, VNC functionality, and remote monitoring, the LCT series is poised to meet the evolving needs of modern industries, driving efficiency and productivity to new heights.
Product parameters
| LCT5156WE specifications | ||
| Hardware Parameters | Display | 15.6” 16:9 TFT LCD Screen |
| LCD View Angle （T/B/L/R） | 85'/85'/85'/85' | |
| Resolution | 1920×1080 | |
| Color | 16-bit | |
| Brightness | 250 cd/m² | |
| Backlight | LED | |
| LCD Life | 50000 Hours | |
| Touch Screen | 4-line Industrial Resistive Touch Screen | |
| CPU | 4-core 1.2G Cortex-A53 Processor | |
| Memory | 8GB Flash+1GB DDR | |
| RTC | Built-in | |
| SD Card | Micro SD (TF) Card | |
| Ethernet | 1-line 10M/100M adaptive | |
| USB port | 1 USB Slave 2.0 port, 1 USB Host 2.0 port | |
| Program Downloading | USB Slave/U-disc /Ethernet | |

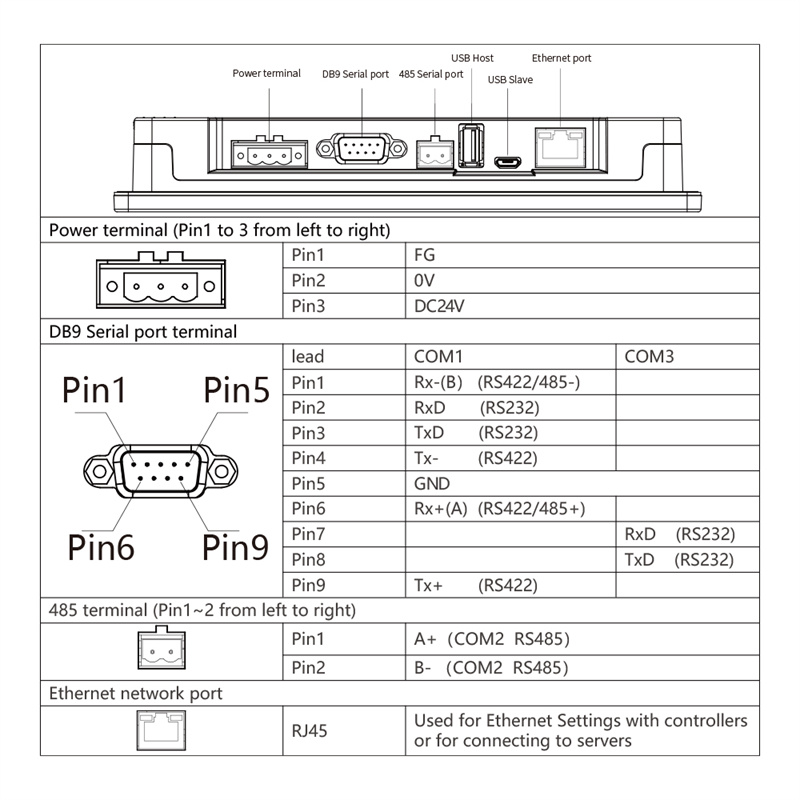

| Serial Ports | COM1:RS232/RS485/RS422； COM2:RS485/RS422 | |
| Electric Specifications | Rated Power | < 18W |
| Rated Voltage | DC24V,working range DC 18V~28V | |
| Power Protection | Isolated power adapter with lightning surge protection | |
| Allowable power-off time | < 5mS | |
| Certification | CE:Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards RoHS: Comply with RoHS EMC: Lightning surge±1KV, group pulse±2KV Electrostatic contact 4KV, air discharge:8KV | |
| Environment Specifications | Working Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ | |
| UV-Anti | It prohibits working under strong ultra-violet radiation environment ，such as direct sunshine. | |
| Environment Humidity | 10~90%RH(non-condensing) | |
| Anti-vibration | 10~25Hz (X/Y/Z direction 2G/30 minutes) | |
| Cooling | Natural Cooling | |
| Mechanical | Installation | Embedded Installation/VESA Installation |
| Parameters | Protection | Front panel: comply to IP65 (based on embedded installation);Back cover: comply to IP20 |
| Mechanical Structure | Aluminum alloy housing | |
| Cutout Size | 380mm×245mm | |
| Dimension | 394mm×256mm×36mm, thickness:22mm (without expansion) | |
| Weight | About 2250g | |
