LD1100 Remote IO Module Ethernet/EtherCAT Industrial I/O
Product Overview
Lingchen Technology’s remote IO solution is an efficient and flexible control and data collection tool that is widely used in various industrial situations. It is designed to meet the needs of modern industrial control systems for stability, network cabling convenience and ease of operation, and is especially suitable for industrial control scenarios with distributed layouts. By using Lingchen Technology’s remote IO, customers can significantly save the time and cost of system integration and improve production efficiency.
Diverse choices of remote IO
Lingchen Technology’s remote IO products provide a variety of options based on different needs and application scenarios:
Classification by bus protocol: Supports multiple industrial communication protocols such as Ethercat, Profinet, Ethernet IP and CC-LINK to ensure compatibility and flexibility with existing systems.
Classification by form: including combined IO modules, independent MINI IO modules and integrated valve island IO modules to meet different space and functional requirements.
Classification by function: Provides a wealth of functional modules, including digital IO, voltage acquisition, current acquisition, voltage output, current output, thermal resistance/thermocouple acquisition, encoder acquisition, pressure sensor acquisition and 422/485 communication etc., can fully support various industrial applications.
Overall solution
The combination of Lingchen Technology’s remote IO with PLC, bus motion control card or bus IO master card can provide customers with an overall solution with high stability and high cost performance. These products have been widely used in 3C manufacturing, lithium battery, semiconductor, photovoltaic, automotive and medical industries, and have been highly recognized and praised by customers.
Features
Small space occupation: A bus coupler can connect up to 31 IO modules and support up to 496 IO points, which greatly saves equipment space.
Flexible expansion combination: Different functional modules can be freely combined according to needs to meet diverse application scenarios.
Rich functions: The expanded IO module covers digital, analog, temperature, pressure, pulse and other functions, which can meet complex industrial control needs.
Wide compatibility: Supports TwinCAT, Codesys, OMRON, ACS, Trio, Siemens, Inovance PLC and other master stations to ensure seamless connection with a variety of control systems.

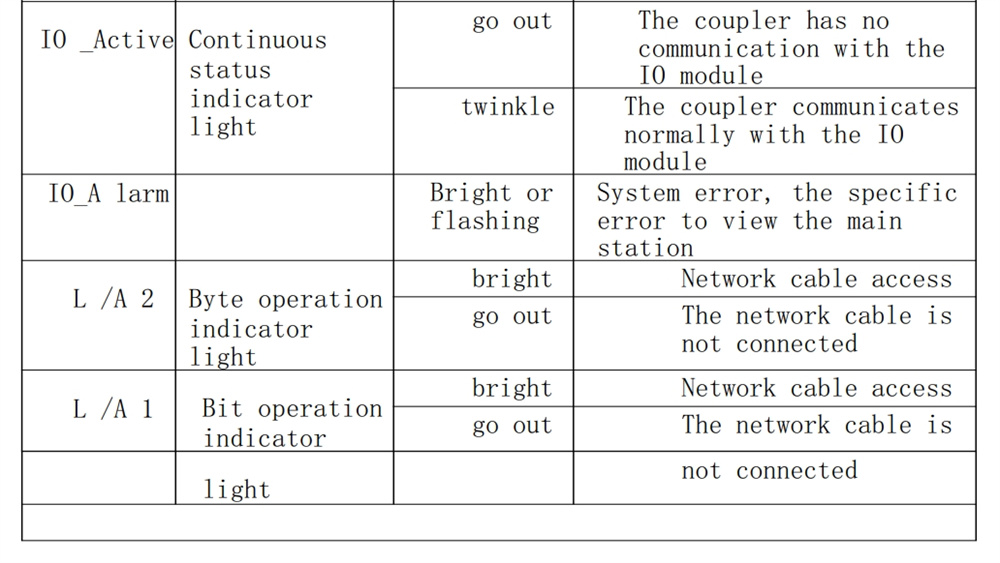

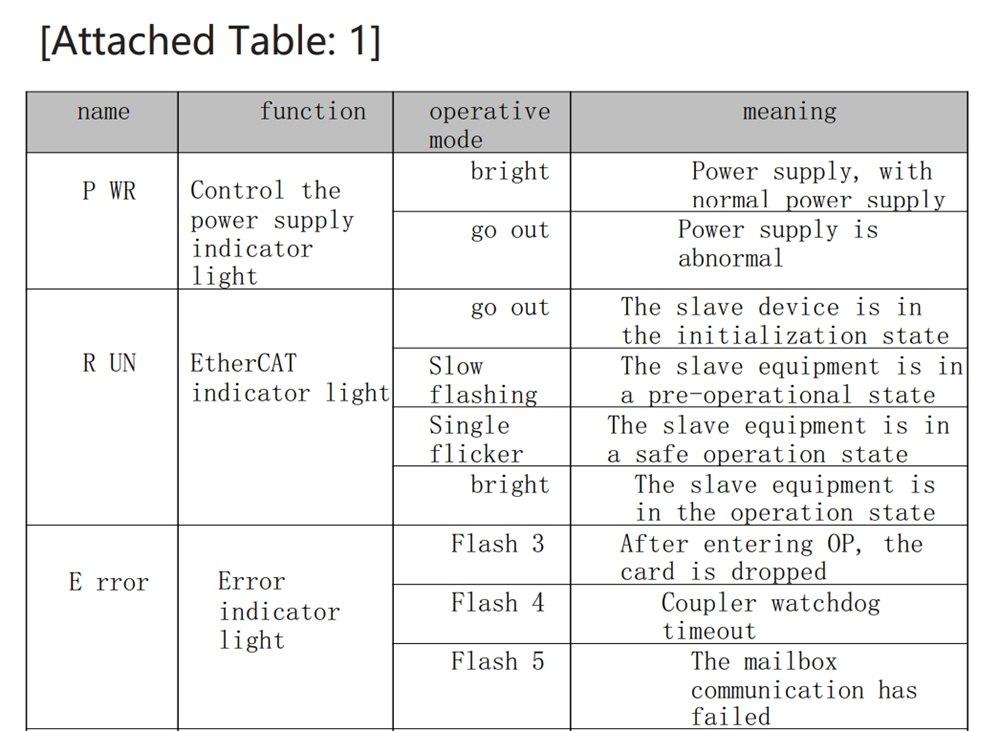

IO card offline monitoring function: It has the IO card offline monitoring function. When the IO card is offline, the alarm indicator light on the card will flash, which facilitates users to quickly troubleshoot problems and improves the reliability and maintenance efficiency of the system. .
Through these characteristics, Lingchen Technology’s remote IO products not only improve the efficiency of industrial automation, but also provide customers with more convenient and efficient solutions.
Specification parameters
| LD1100 specifications | |
| system parameter | EtherCAT / LD1100 |
| Number of adaptation modules | 32 |
| Data transmission medium | Ethernet/EtherCAT CAT5 Cable |
| Maximum cable length | 100 m （100BASE-TX） |
| Data transmission rate | 100Mbaud |
| Configuration method | EtherCAT |
| Power specifications | |

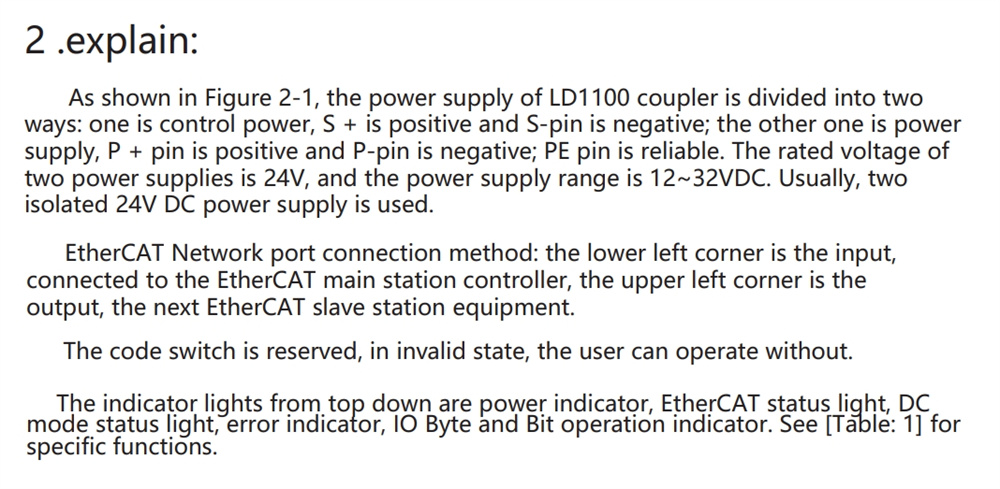

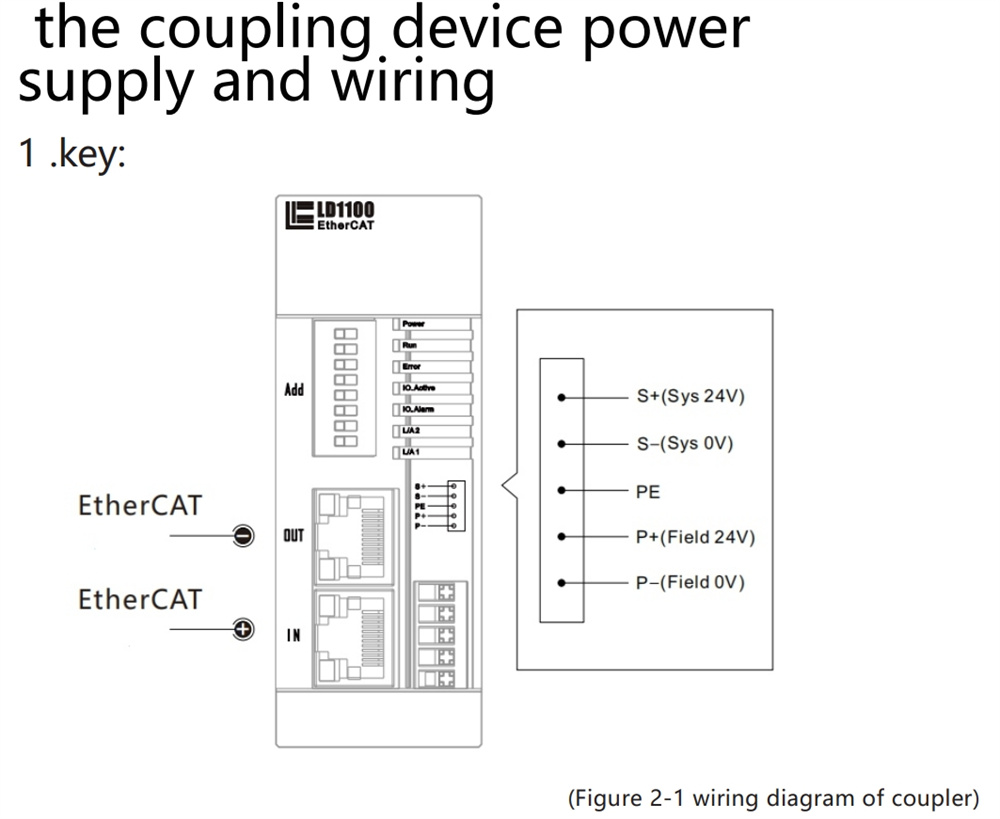

| System power supply | Rated voltage 24V DC（±20%） |
| Sys | Maximum output current 5V/700mA |
| Public end power supply | Rated voltage 24V DC (± 20%) |
| Field | Maximum input current 24V/10A |
| Communication parameters | |
| Bus interface | 2 × RJ45 |
| Communication cycle | Minimum 1ms, main station setting |
| Isolation level | |
| Isolation and voltage resistance | 500V |
| Isolation method | Isolation Transformer (RJ45 Communication) |
| physical characteristics | |

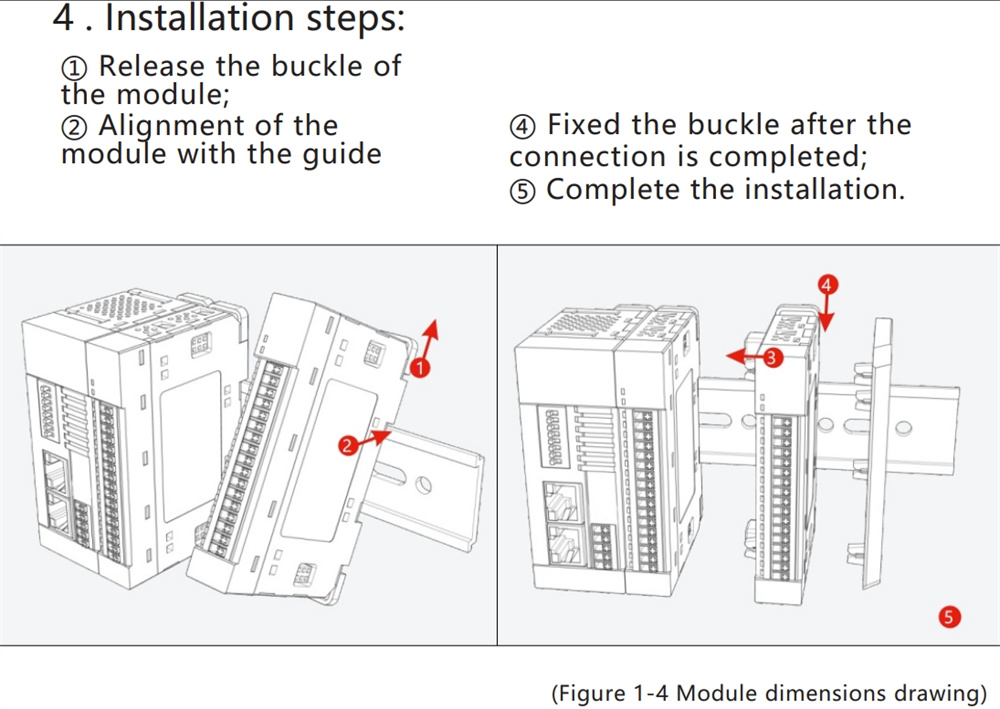

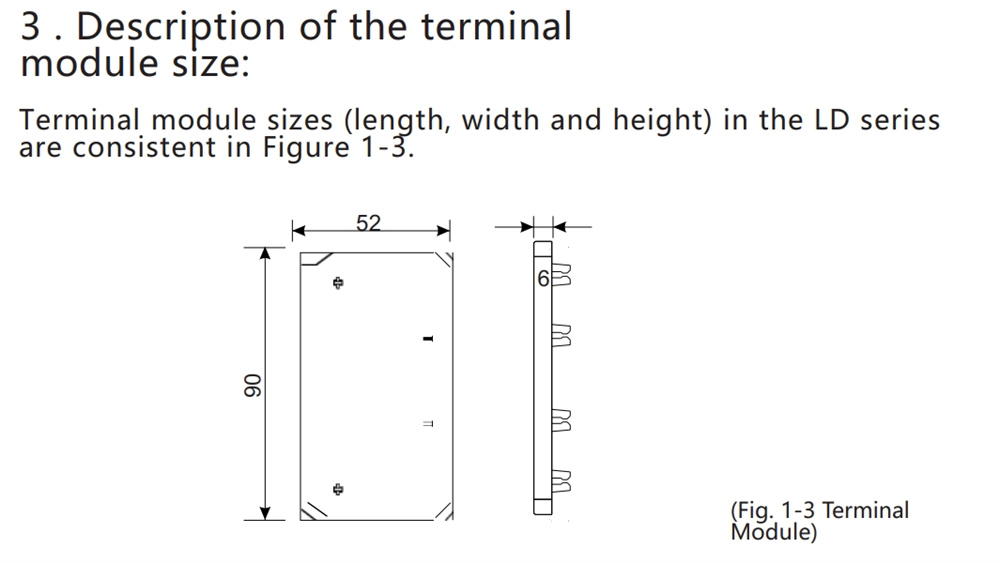

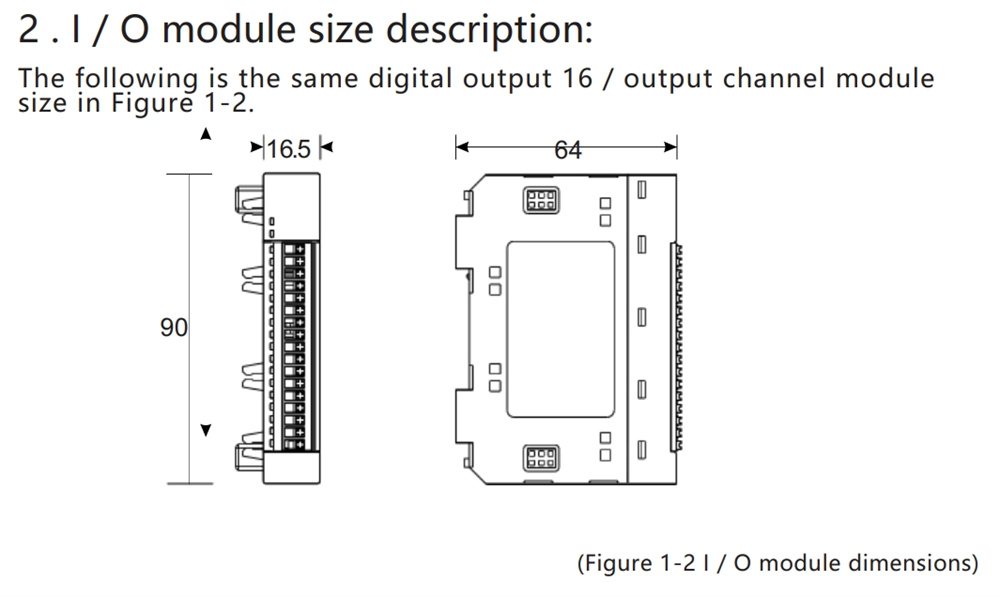

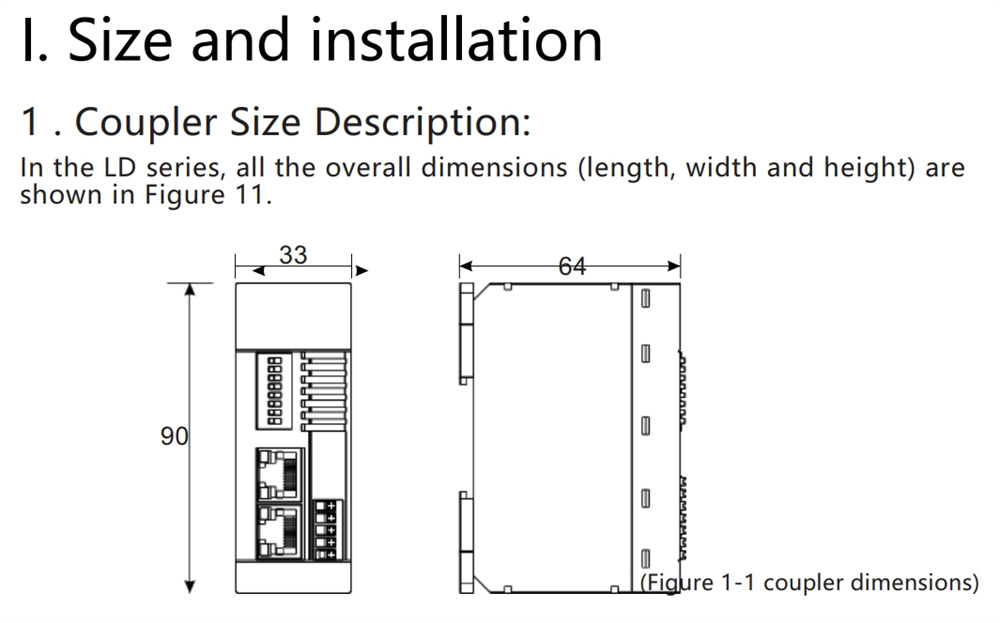

| Size specifications | 90mm x 33mm x 64mm (length x width x height) |
| Working temperature | 0~55℃ |
| Storage temperature | -25~85℃ |
| Relative humidity | 95%, no condensation |
| Protection level | Ip20 |

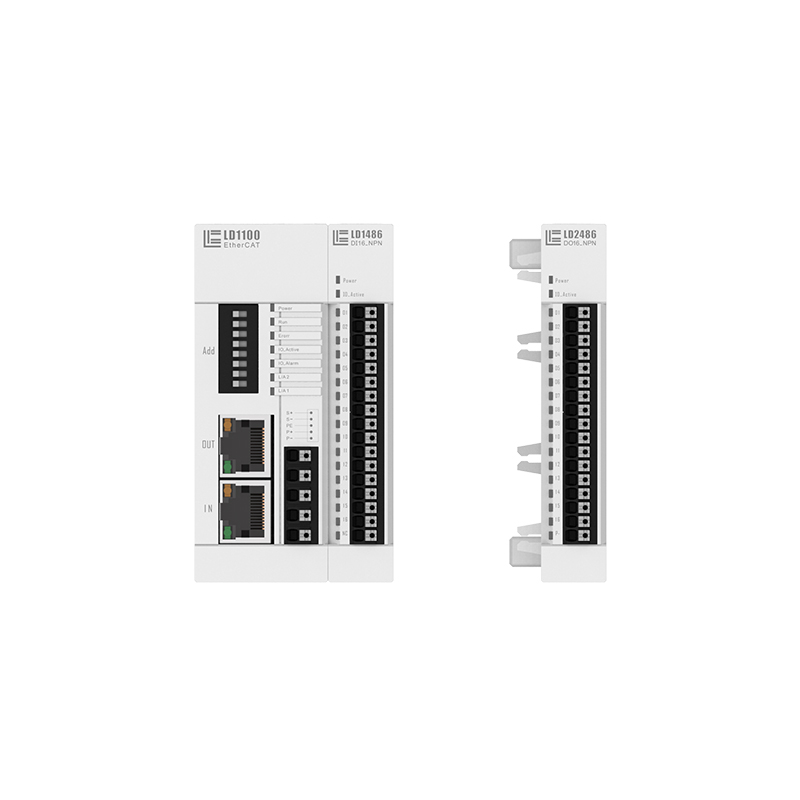

Product Display
