Micro-ATX Industrial mainboard H110 Windows 7/10 Linux
product description
Specification parameters
| LH643-H110 Specification | |
| System | |
| Processor | Intel® 6th/7th/8th/9th Generation Core™ i3/i5/i7/i9 Pentium®/ Celeron® CPU, supporting up to 95W TDP |
| Chipset | H110 |
| Memory | 2x DDR4 2133/2400/2666 MHz, supporting up to 64GB |
| Graphics | Intel® Integrated Graphics |
| Storage | 4x SATA 3.0 |
| Operating System | Windows 7/10, Linux |
| Watchdog Timer | Programmable 255-level timer interval, from 1 to 255 seconds/minutes |

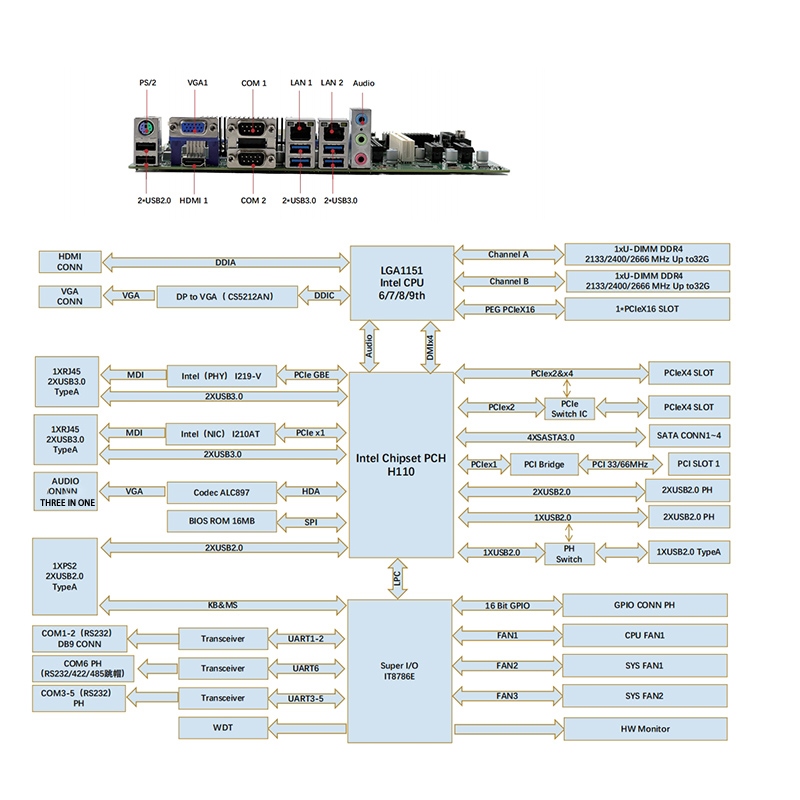

| External Interface | |
| Network Port | 1x RJ45® I219-V Intel® (10/100/1000 Mbps) PHY 1x RJ45® I210AT Intel® (10/100/1000 Mbps) |
| Display | 1x HDMI: Maximum resolution 4096x2160@ 30Hz 1x VGA: Maximum resolution 1920x1200@ 60Hz |
| Audio | 1x Line-in& 1x Line-out& 1x Mic-in |
| Serial Port | 2x RS232(COM1/2） |
| PS/2 | Keyboard/Mouse |
| USB | 4x USB3.0，2 x USB2.0 |
| Internal Interface | |
| Expansion Interfaces | 1x PCIe x16 (Gen3), 2x PCIe x4 (Gen2, 1 x4 signal or 2 x2 signals), 1x PCI |
| USB | 4x USB 2.0 ports (including 1x internal Type-A direct-plug shared USB 2.0 signal) |
| SATA | 4x SATA3.0 |
| Serial Port | 3x RS232 (COM3~5), 1x RS232/422/485 (COM6, mode jumper selectable) |
| GPIO | 1x 16-bit programmable GPIO |
| TPM | TPM2.0 SPI pin header |
| Front Panel Connectors | 1x Front Panel Power Switch/Reset; Power LED/1x HDD LED |
| Power Switch/Power LED | Power-SW and Power-LED (2x PH2.0 sockets) |
| Fan Header | 1x CPU fan, 2x SYS fans |
| Environment | |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | Operation humidity: 95%@40°C, non-condensing Storage humidity: 95%@60°C, non-condensing |
| Power Supply | |
| Power Supply Input | ATX Power Supply |
| Institution | |
| Dimensions | 244x244 mm |
| Certification | |
| Safety Certification | CE, FCC |
