LCTLaser Laser Cutting Software — Empowering Precision Machining
In the field of precision glass processing, the cutting quality of products—such as instrument lenses, mobile phone cover glass, and optical glass—directly determines the optical performance and aesthetic caliber of the final finished goods. Traditional methods, relying on mechanical scribing followed by manual breaking, suffer from significant drawbacks, including excessive edge chipping, low efficiency, and unstable yield rates. LCTLaser, the proprietary laser cutting software developed by Lingchen Technology, is built upon a core foundation of industrial-grade, high-precision control. By integrating features such as intelligent layout optimization, automated process editing, end-to-end data traceability, and modular design, it delivers a comprehensive, one-stop solution for the glass cutting industry. This software supports a path accuracy of ±0.02 mm and multi-axis coordinated control; furthermore, its built-in oscilloscope function enables real-time comparison between commanded motion points and actual positions, ensuring that every single cut is executed with precision and complete control.
Core Strengths
1. Industrial-Grade High-Precision Control: Path accuracy rated at ±0.02 mm. Suited for precision machining applications—such as those involving semiconductors and optical lenses—and capable of meeting sub-micron-level cutting requirements.
Multi-Axis Coordinated Control: The travel range, speed, and precision of the X and Y axes can be independently adjusted, enabling the system to effortlessly handle complex trajectory cutting tasks.

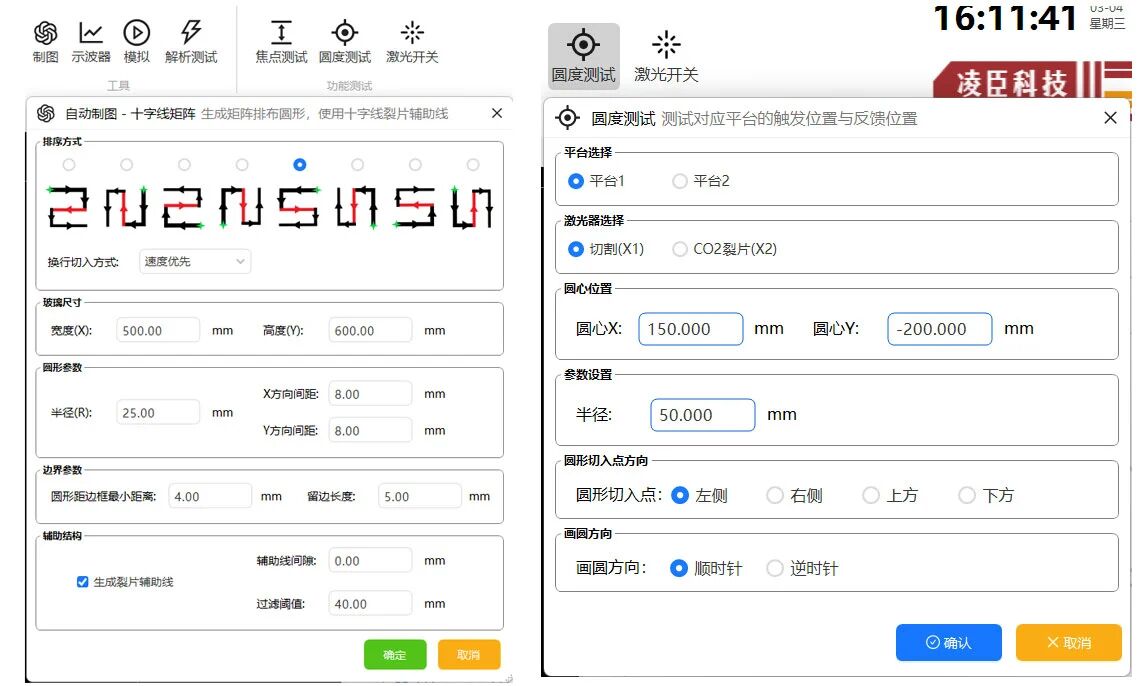

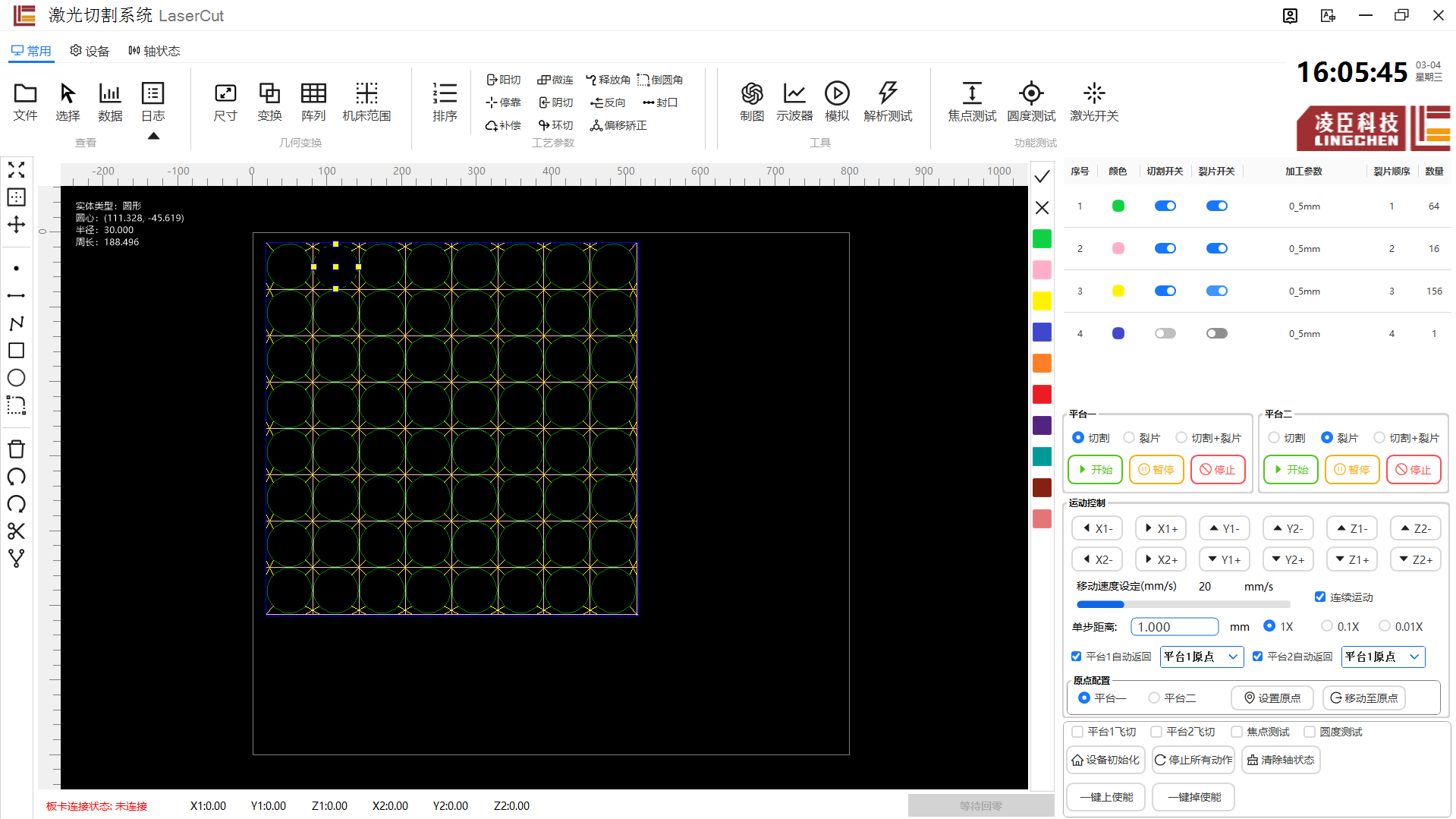

2. Efficient Production Management & Intelligent Layout Optimization: Supports circular and rectangular array layouts, reducing material waste by up to 30% (e.g., for the batch cutting of water meter glass).

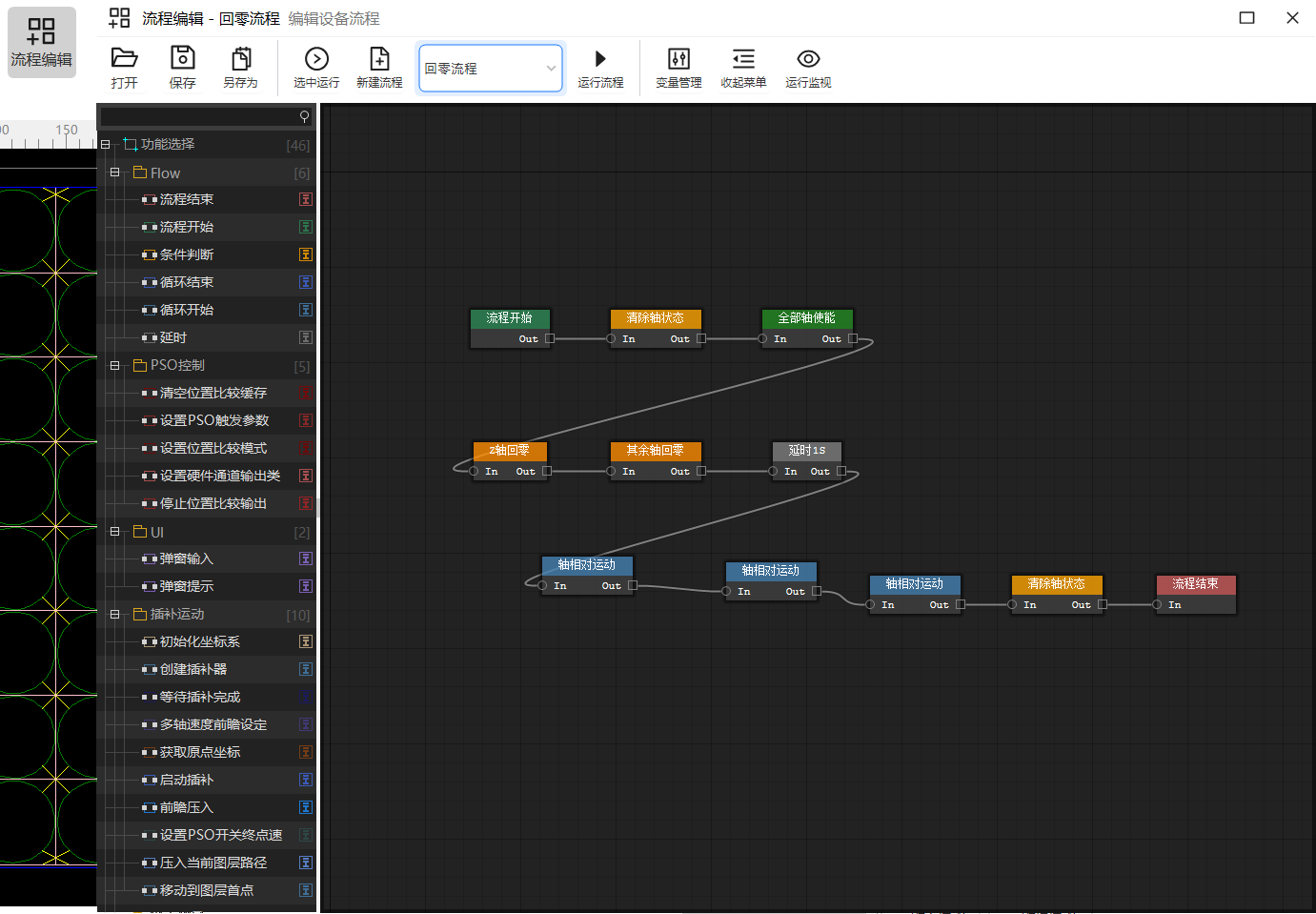

Automated Process Editing: Enables flexible sequencing of operations; allows for one-click configuration of the entire workflow—from pre-cutting to main cutting and final separation—thereby significantly boosting production efficiency.

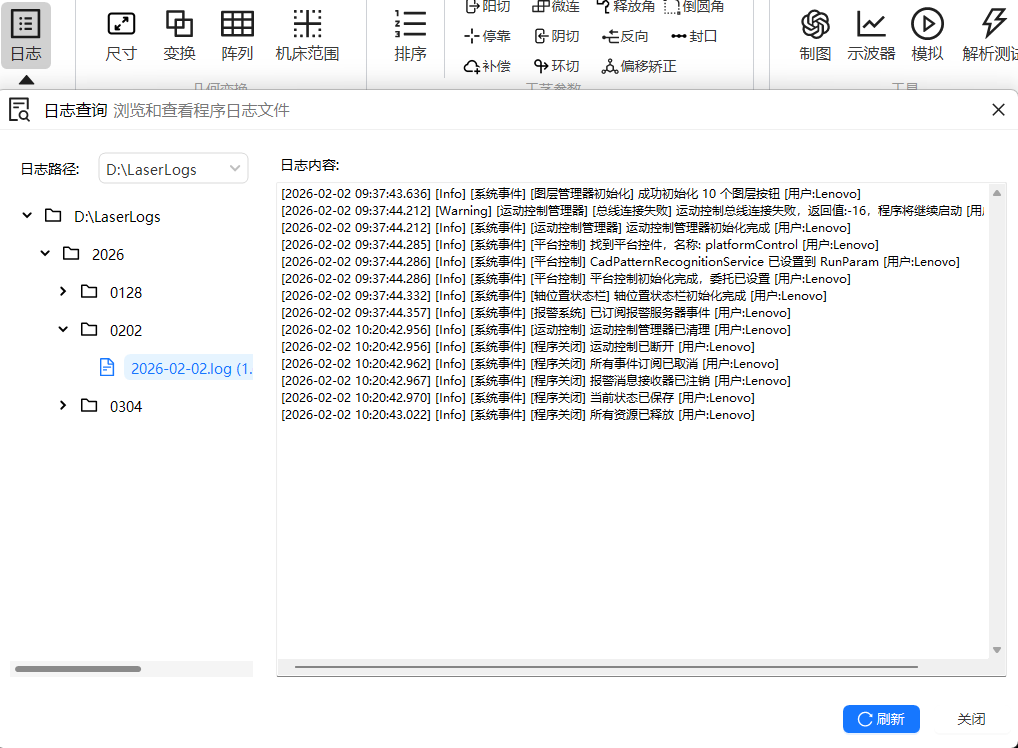

3. End-to-End Data Traceability and Cutting Log Recording: Automatically tracks operating time, processing volume, and alarm events, providing a clear and comprehensive overview of production data.
Simulation Verification: Simulates cutting paths to detect potential collision risks in advance, ensuring the safety of both the equipment and the workpiece.
4. Modular Design and Drawing Compatibility: Supports the import and creation of DXF drawings, ensuring seamless integration with mainstream design software.
Customizable Processing Parameters: Laser power, frequency, slicing speed, and other parameters can be flexibly adjusted to suit various materials.

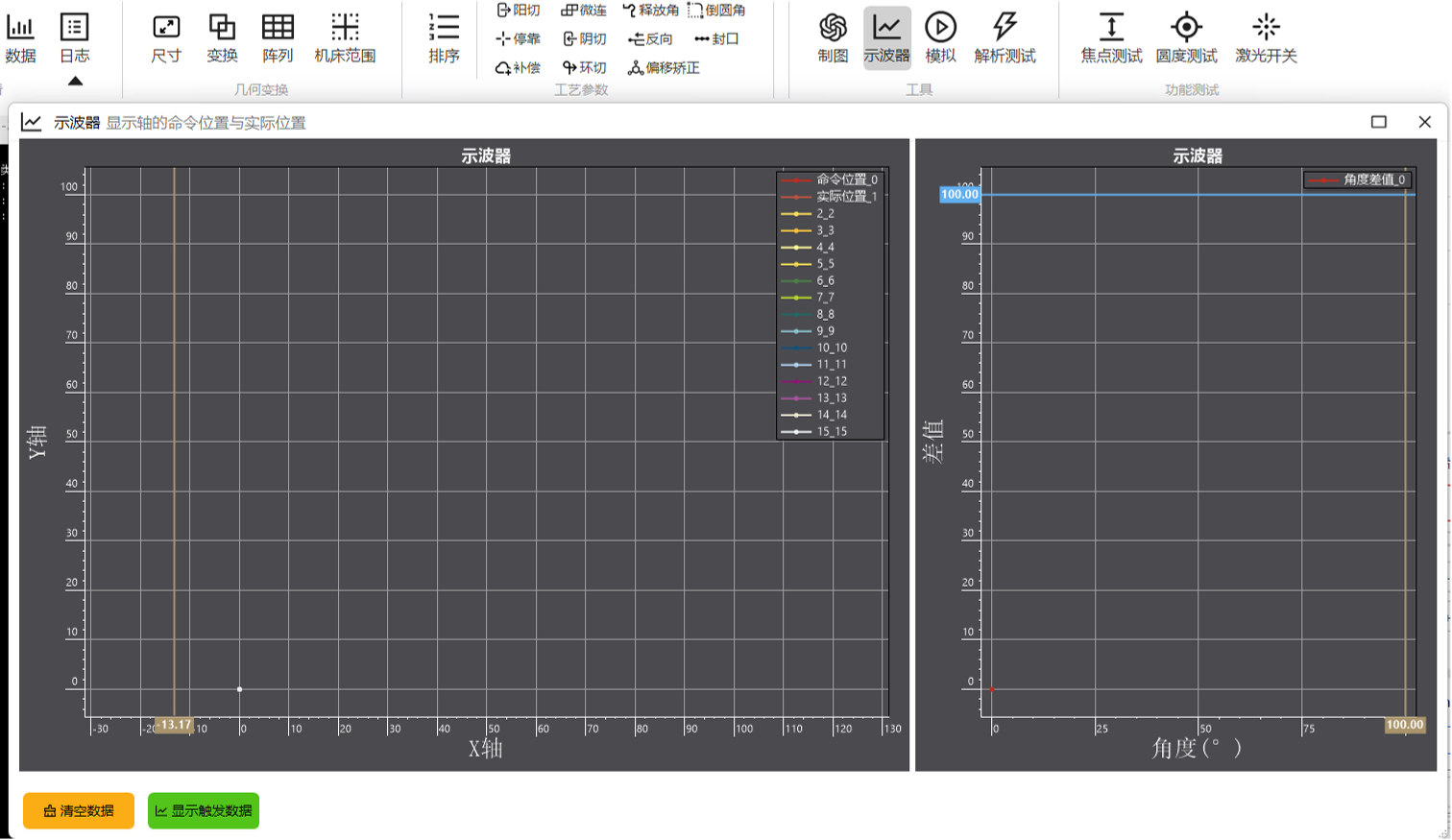

Built-in Oscilloscope Function: Real-time monitoring and comparison of target motion points with actual positions facilitates efficient debugging and precise verification.
Typical Application Scenarios
Small-Format Glass Lenses for Instrumentation
High-precision contour cutting and alignment line processing for various instrument panels, display windows, optical filters, and sensor windows.
Features: ±0.02mm cutting precision, minimal edge chipping, and clear, precisely aligned positioning lines.
Mass Production of Small-Format Precision Glass
Automated mass production involving array layout and batch cutting for small circular pieces (5–50mm diameter), small square pieces (3–30mm side length), and small irregularly shaped pieces (custom shapes).
Features: Intelligent layout optimization saves 30% on material usage; supports continuous processing; single-machine daily output reaches thousands of pieces; serves as a superior alternative to traditional diamond scribing and manual breaking processes, significantly boosting yield rates and production efficiency.
Summarize
LCTLaser cutting software specializes in the field of precision cutting, distinguished by core strengths such as industrial-grade accuracy of ±0.02mm, multi-axis coordinated control, intelligent nesting that saves up to 30% on material usage, and end-to-end data traceability. Whether the task involves high-precision contour cutting of small lenses for instrumentation or the automated mass production of small circular, square, or irregularly shaped pieces, this software delivers stable, highly efficient cutting solutions. Its built-in oscilloscope function enables real-time comparison between intended motion points and actual deviations, making the debugging process more intuitive; furthermore, its modular design allows for the flexible customization of process parameters to accommodate diverse materials and production requirements. Moving forward, we will continue to deepen our expertise in the industrial software sector, empowering the fields of precision glass processing and intelligent manufacturing.
About Us
Established in 2006, Suzhou Lingchen Data Acquisition & Computer Co., Ltd. operates under a business philosophy centered on creating value for clients and fostering win-win partnerships. The company provides customers with core components and system solutions for a wide range of automation equipment, including industrial computers, motion control systems, test and measurement instruments, machine vision systems, and robotics. Currently, Lingchen oversees two wholly-owned subsidiaries: Suzhou Xun'ya Automation Technology Co., Ltd. and T.O.K. Robotics (Suzhou) Co., Ltd., which specialize in the sales of robotic systems and the R&D, manufacturing, and sales of linear motion products, respectively.
Product System Network
Within the hierarchical structure of automated control networks, Lingchen Technology offers a comprehensive range of products spanning the device, control, and information layers.
01 Industrial Computers
Lingchen Industrial Chassis provides comprehensive physical protection for critical computing cores through its industrial-grade robust structure, exceptional thermal management, and dust-proof design, ensuring enduring and stable operation even in harsh industrial environments characterized by vibration, dust, and extreme temperatures.
02 Embedded Industrial PC
Lingchen Embedded Industrial PCs feature a compact and rugged industrial design, integrating high-performance computing, extensive I/O interfaces, and broad tolerance for wide temperature and voltage ranges. Specifically engineered for embedded applications—such as machine vision, edge computing, and automation equipment—these systems provide a stable and reliable intelligent core within limited spaces, empowering smart manufacturing and IoT applications.
03 Motion Control Card
The Lingchen motion control card is capable of controlling up to 32 motion axes and simultaneously supports the control of up to 512 DI points and 512 DO points, with a maximum bus communication cycle of 250 µs. In terms of motion control, it supports functions such as single-axis relative motion, absolute motion, jogging, and drive-based homing; multi-axis interpolation; multi-axis point table motion; and electronic gearing.
04 LMC Series Motion Controllers
The Lingchen LMC series motion controllers are designed around an open, hard real-time kernel (with jitter < ±0.3 µs). This design thoroughly resolves the non-real-time limitations inherent in traditional Windows-based platforms, ensuring both determinism and instantaneous response for multi-axis commands. Installation is remarkably simple, requiring only a single Ethernet cable for connection; furthermore, utilizing highly efficient asynchronous communication technology, the system enables the synchronized issuance and control of motion commands for up to 12 axes within just 1 millisecond.
05 NAC Series High-Performance Motion Controllers
At the core of the Lingchen NAC controller lies a powerful bus expansion capability, supporting four EtherCAT masters to enable the precise control of 256 axes per station—totaling 4,096 I/O channels. Its motion control capabilities are both comprehensive and robust: beyond standard point-to-point, linear, and circular interpolation, it features advanced functions such as 5-axis interpolation, spline-based trajectory smoothing, and dynamic coordinate systems. Furthermore, it integrates vibration suppression, "soft landing" capabilities, and high-precision position comparison outputs; combined with eight independent interpolation groups and continuous interpolation functionality, it effectively meets the demands of complex trajectories and high-speed synchronization. The development environment is open and flexible, supporting multiple programming languages—including C++, C#, and Python—and allows for direct programming within the real-time operating system, thereby significantly enhancing integration and debugging efficiency.
06 PLC Motion Controller
Lingchen PLC controllers strictly adhere to PLCopen specifications and the IEC 61131-3 international standard, combining high performance, a compact footprint, and a modular design to facilitate easy development and flexible deployment. Widely applicable to automation equipment and production line systems across sectors such as 3C electronics, lithium-ion batteries, packaging, and printing, these controllers can also be extended to serve as network communication nodes within integrated production lines for logistics, automotive, and consumer goods industries. By meeting requirements for internal/external network isolation, high-speed bus communication, and real-time data processing, they provide a stable and reliable control core for a diverse range of industrial environments.
07 Industrial Network Cards
Lingchen industrial network cards are specifically engineered for harsh industrial environments, featuring 10/100/1000Mbps auto-negotiation capabilities to deliver stable and reliable high-speed network connectivity. Characterized by robust anti-interference, surge protection, and wide-temperature operation, these cards are widely deployed in critical applications such as motion control, machine vision, and automation systems. The products feature a flexible installation design—including a standard full-height bracket and an optional half-height bracket—enabling seamless integration into a wide range of smart manufacturing equipment and industrial networks.
08 IO Module
Lingchen Technology offers a comprehensive range of I/O module solutions, designed to meet the diverse requirements of industrial automation flexibly.
LC/LD Series Expandable I/O Modules: Supporting multiple protocols—including EtherCAT, Profinet, Ethernet/IP, and Modbus TCP—these modules allow for the flexible expansion of data acquisition capabilities covering digital signals, analog signals, temperature, pressure, and pulses. They are widely applied across sectors such as 3C electronics, lithium-ion batteries, semiconductors, automotive manufacturing, and medical equipment.
MINI Series I/O Modules: Characterized by their compact size and high real-time performance, this series encompasses digital I/O, analog I/O, temperature modules, and communication modules. They are ideally suited for control and data acquisition scenarios where space constraints and real-time responsiveness are critical requirements.
GWS Series Cabinet-Free I/O Modules: Featuring exceptional stability and convenient network cabling capabilities, these modules are designed for distributed system layouts, enabling significant reductions in both system integration time and costs.
Our entire product portfolio is dedicated to providing users with reliable, easy-to-integrate, and adaptable I/O module support for a wide variety of application scenarios.
