Lingchen Servo Pressure-Free Lead-Edge Feeding Solution
In a corrugated cardboard printing production line, the lead-edge feeding unit serves as a critical component that determines the overall efficiency and precision of the entire line. Its operating principle involves utilizing vacuum suction to firmly secure the stacked cardboard against the feed wheels, while a servo control system governs the reciprocating motion of these wheels to precisely convey the cardboard to the subsequent printing units.

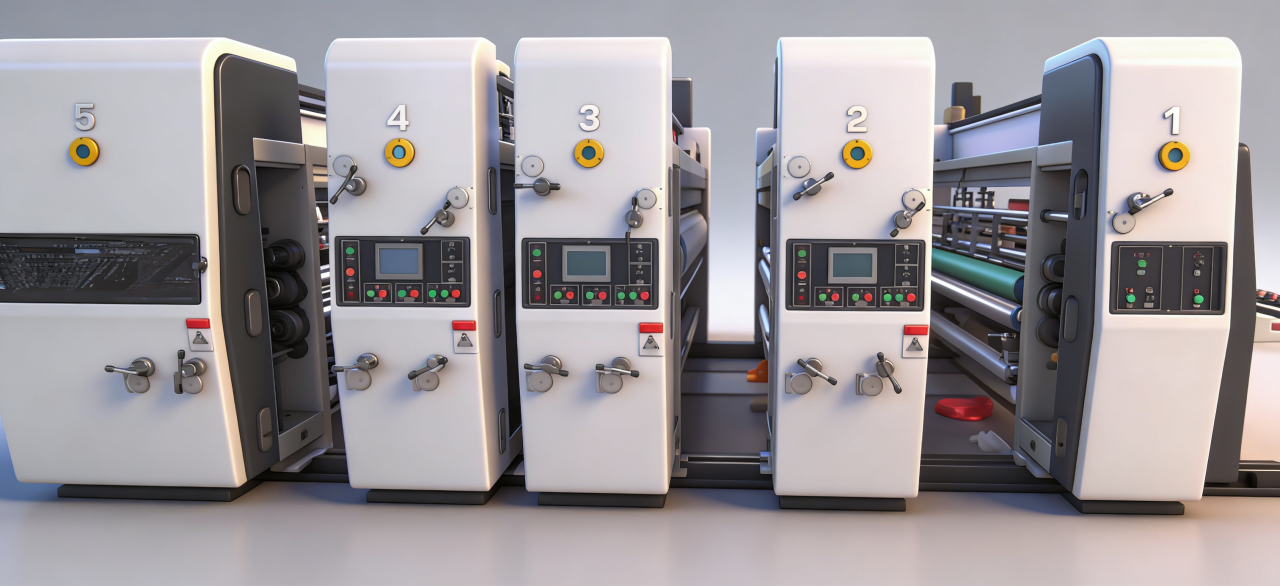

Centered around a Lingchen PLC acting as the core controller and integrated with a Lingchen servo drive system, this solution delivers a comprehensive, pressure-free servo lead-edge feeding package. It is specifically tailored to meet the operational requirements of Model 480 printing equipment—characterized by a running speed of approximately 200 meters per minute and a precision tolerance of ±0.75 mm. After undergoing phase alignment within the lead-edge feeding unit, the cardboard is fed into three distinct printing units to complete the multi-color printing process and is finally processed by a forming unit to produce the finished product.
The Pain Points of Traditional Paper Feeding Methods
Traditional mechanical or standard pneumatic lead-edge feeding systems have long suffered from the following persistent issues during high-speed printing production:
◆ Paper Slippage: Under high acceleration, relative slippage frequently occurs between the feed wheels and the cardboard surface, leading to deviations in transport positioning and compromising color registration accuracy. This slippage is particularly severe when handling cardboard with smooth surfaces or thick coating layers.
◆ Friction Marks: The rigid contact and sliding friction between the feed wheels and the cardboard surface often leave behind indentations or scuff marks, negatively impacting the aesthetic quality of the finished product—a flaw that is especially detrimental for high-end packaging applications.
◆ Static-Induced Sticking: Electrostatic charges or adhesive forces generated by friction between adjacent sheets of cardboard make sheet separation difficult; this frequently results in multiple sheets feeding through simultaneously, thereby driving up the reject rate.
◆ Inertial Impact: During sudden stops at high speeds, the cardboard continues to surge forward due to inertia, often resulting in misaligned stacking or physical damage to the sheets, which subsequently compromises positioning accuracy for the printing process.
◆ Accumulated Phase Deviation: Traditional systems lack real-time closed-loop correction capabilities; consequently, feeding errors increase linearly as operating speeds rise, making it difficult to maintain consistent precision across the entire speed range.
Lingchen Technology’s Servo-Driven, Pressure-Free Lead-Edge Feeding Solution is specifically designed to address these critical pain points. By employing innovative control strategies—such as synchronized startup, graduated deceleration, intelligent sheet retraction, and fully closed-loop dynamic phase alignment—this solution effectively and comprehensively resolves the inherent flaws associated with traditional feeding methods.
Client Requirements and Process Challenges

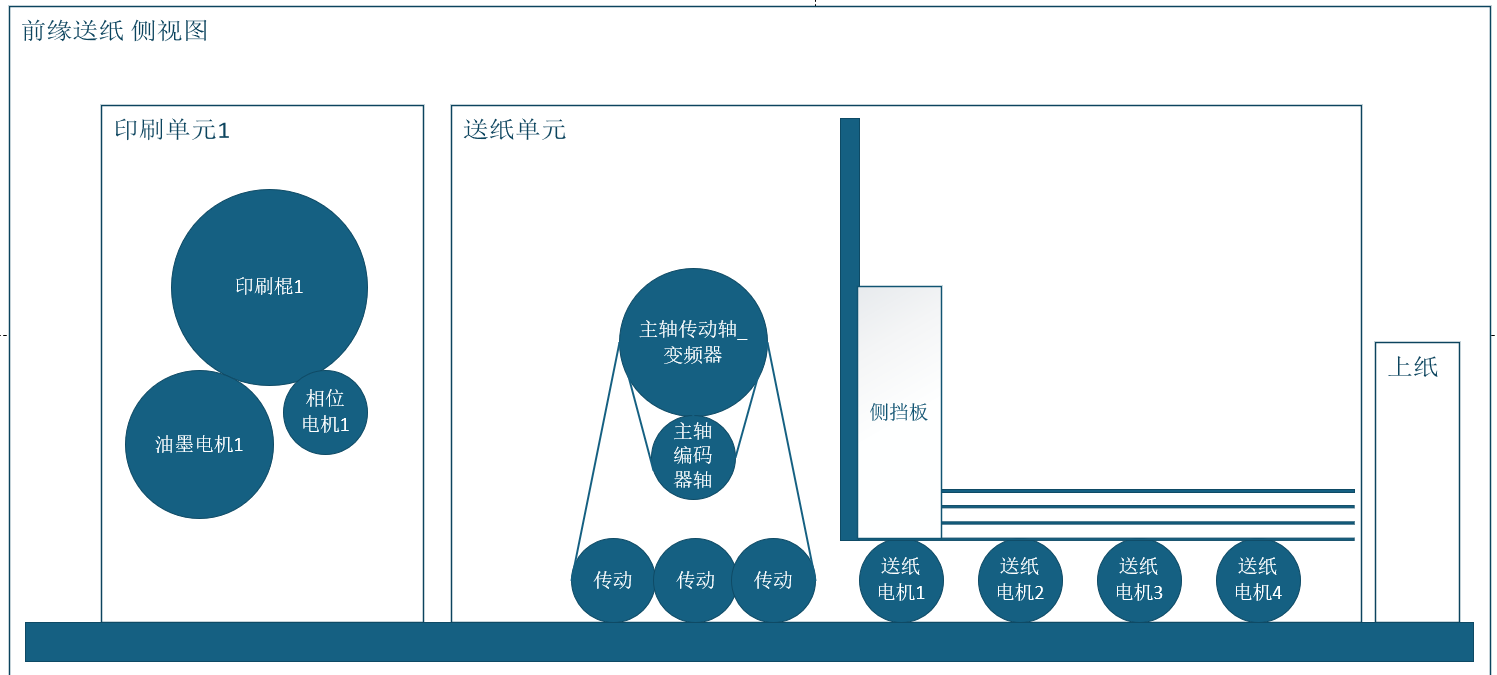

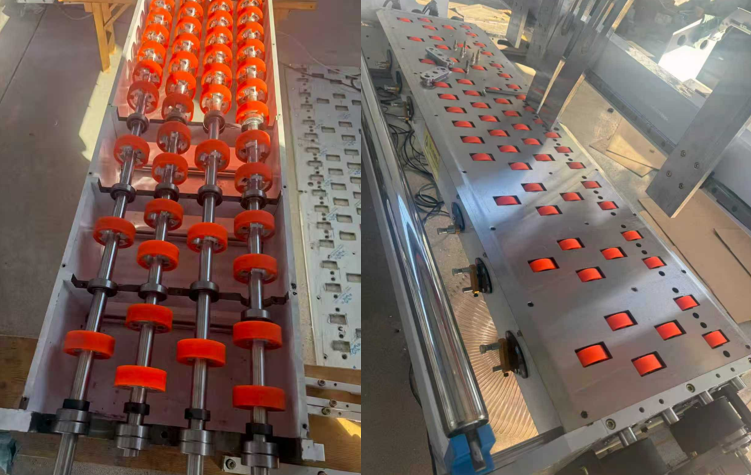

The core requirement of the client centers on the lead-edge feeding process, which utilizes vacuum suction to firmly secure stacked cardboard against the feed wheels. Through servo control, these wheels execute a reciprocating motion to precisely convey the cardboard to the printing section. The system comprises a vacuum suction unit, feed wheels, a servo drive mechanism, and a front baffle; these components must operate in perfect coordination to ensure the accuracy and stability of the cardboard conveyance.
Under high-speed operating conditions—where the client mandates an equipment speed of 200 meters per minute and a feeding precision maintained within ±0.75 mm—the system must simultaneously address several critical challenges: mechanical backlash issues during the synchronized startup of multiple axes, the inertial impact on the cardboard during high-speed stops, and the phenomenon of "double feeding" (multiple sheets sticking together) caused by inter-sheet adhesion or static electricity.
Technical Implementation Challenges: Traditional lead-edge feeding systems operating at high speeds frequently face three major technical challenges:
◆ Start-up Delay: Mechanical clearances result in unsynchronized multi-axis startup, compromising the alignment of the cardboard's leading edge.
◆ Inertial Impact: During high-speed emergency stops, the significant inertia of the cardboard often leads to multiple sheets being dragged along or overlapping.
◆ Static Adhesion: Adhesive forces or static electricity between sheets of cardboard hinder complete separation, thereby increasing the reject rate.
Lingchen Non-Crush Leading-Edge Feeding Solution

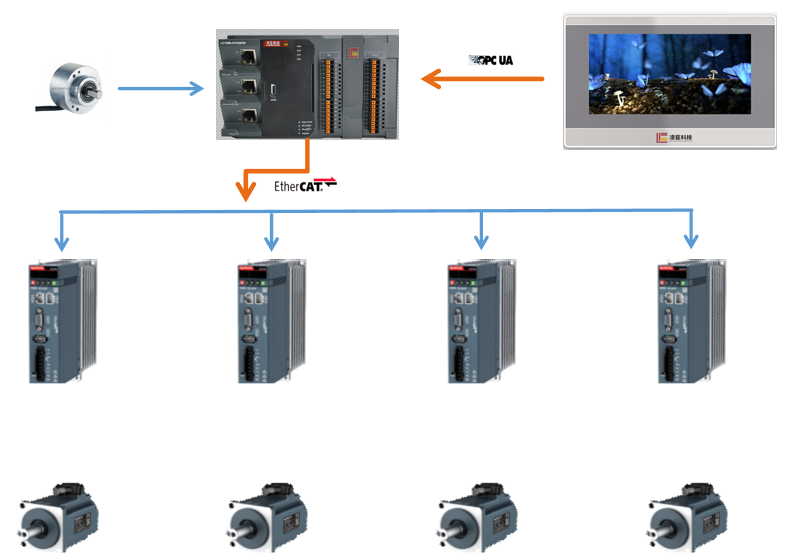

Hardware Configuration: This solution utilizes a comprehensive suite of motion control products from Lingchen Technology. The Lingchen PLC series serves as the main controller, paired with Lingchen series servo drives specifically matched to the load characteristics of the paper-feeding wheels. By employing an incremental encoder scheme, the system achieves high-speed and high-precision control.
Core Control Strategies

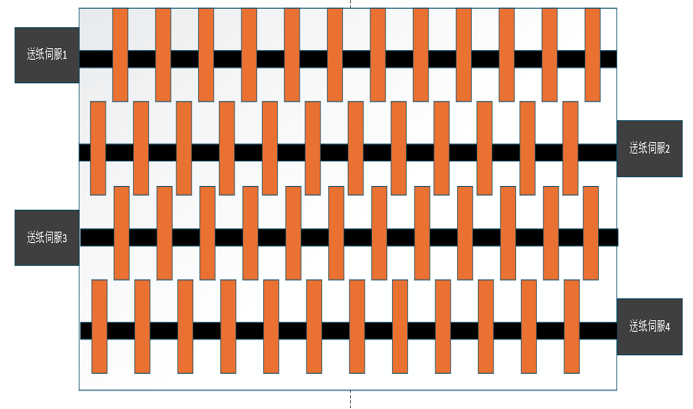

① Synchronous Start, Millisecond-Level Response: Four sets of paper-feeding shafts achieve absolute synchronous startup, eliminating startup delays caused by mechanical backlash. This ensures precise alignment of the cardboard's leading edge and significantly enhances initial feeding accuracy.

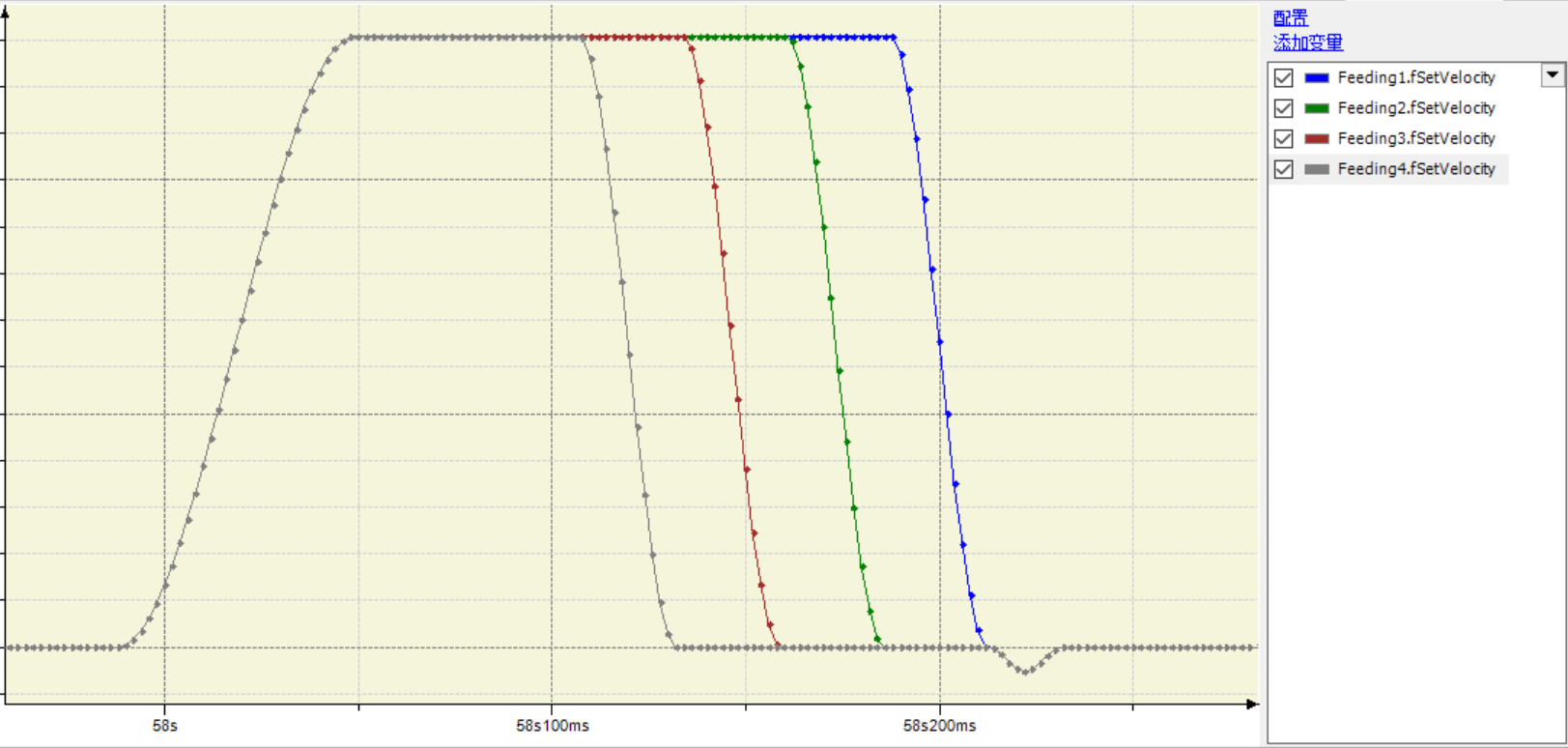

② Timed Stop, Graduated Deceleration: Each shaft decelerates and halts sequentially according to a preset timing sequence. This effectively mitigates the inertial impact of the cardboard, prevents multiple sheets from being dragged along or overlapping, and ensures a smooth transition through the paper path.
③ Intelligent Back-Stacking, Anti-Drag Reversal: An instantaneous, minute reversal is executed the moment the shafts stop. This completely severs any adhesive forces or electrostatic attraction between sheets—phenomena that can cause sheets to drag one another—thereby ensuring clean, crisp separation of individual sheets and effectively reducing the scrap rate.
Fully Closed-Loop Dynamic Phase Alignment: This solution employs fully closed-loop dynamic phase alignment technology to achieve precise, real-time control of the paper feeding position.

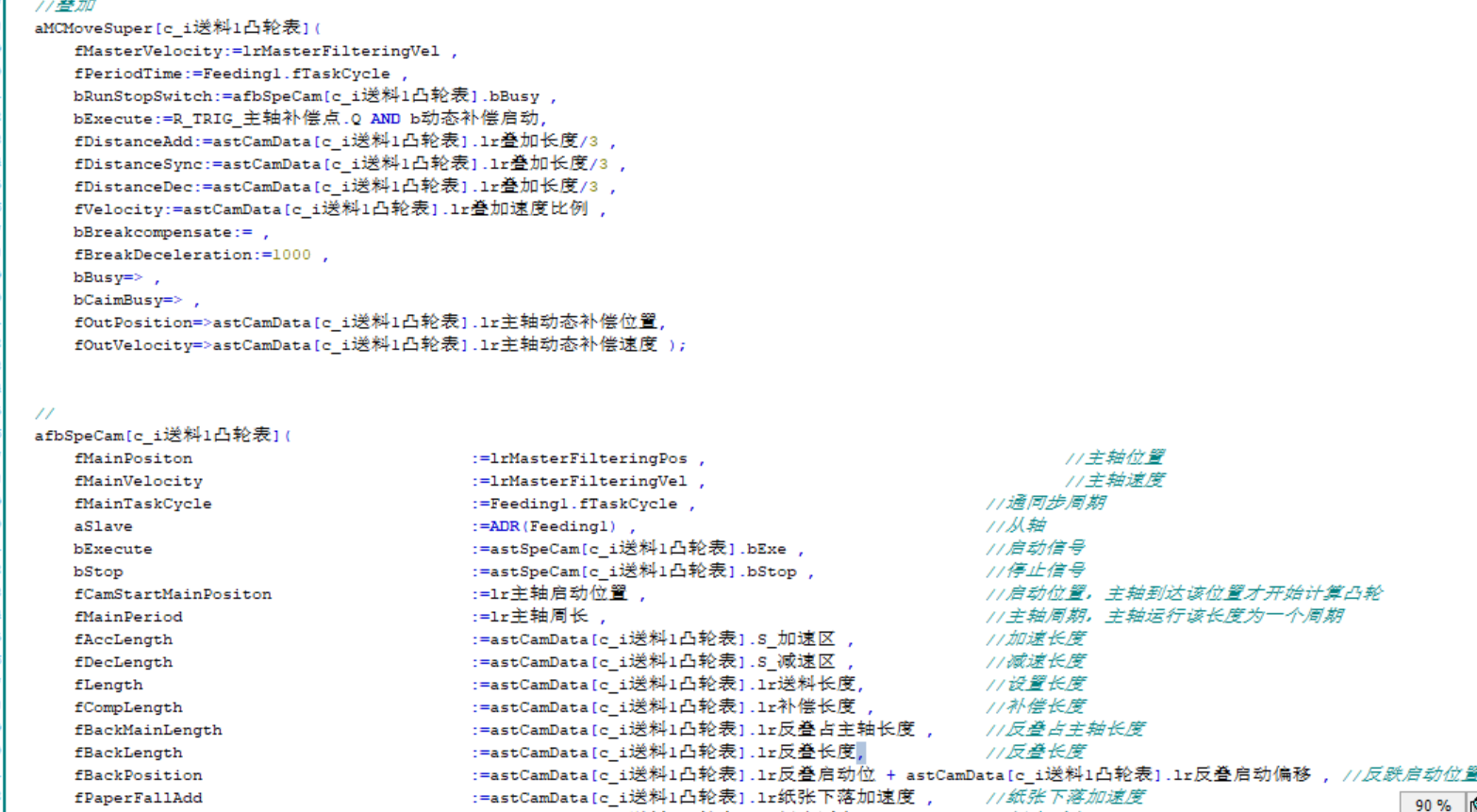

◇ High-Speed Capture: Utilizes servo frequency-division outputs to provide real-time feedback on the slave axis position, thereby establishing a high-frequency position feedback loop.
◇ Intelligent Alignment: Calculates the deviation between the actual position and the theoretical phase—accurate to the millisecond—and automatically computes the optimal compensation increment.
◇ Seamless Correction: Through phase-feed compensation, real-time deviation correction is executed during the motion process, ensuring absolute consistency in the paper feeding position.
Performance Metrics Verified via Field Testing: This solution demonstrates exceptional performance across all key metrics:
◆ Equipment Speed: Approximately 200 meters/minute, meeting the specified requirement of 200 meters/minute.
◆ Paper Feeding Accuracy: ±0.75 mm, fully satisfying client requirements.
◆ Control Response: Millisecond-level synchronized startup and staggered shutdown, effectively eliminating inertial shock.
◆ Anti-Drag Effect: The reverse-rotation anti-drag function effectively resolves issues related to static-induced paper dragging.
Summarize
Lead-edge feeding constitutes a core process link in printing equipment—where synchronized startup tests multi-axis coordination, high-speed stopping challenges inertial control, and electrostatic adhesion complicates single-sheet separation. Centering on its proprietary industrial PLCs and servo systems, Lingchen Technology has successfully resolved the technical hurdles inherent in traditional feeding solutions through a series of innovations. These include millisecond-level response for synchronized startup, staged deceleration for timed stopping, intelligent reverse-stacking to prevent sheet drag, and full-closed-loop dynamic phase alignment. This solution achieves absolute synchronization across four sets of feeding shafts, thereby eliminating startup delays caused by mechanical backlash; employs staged deceleration to mitigate the inertial impact of cardboard effectively; utilizes reverse-stacking to neutralize the effects of inter-sheet adhesion and static electricity completely; and implements full-closed-loop dynamic phase alignment to correct phase deviations in real-time, ensuring consistent and precise feeding positioning. Moving forward, Lingchen Technology will continue to deepen its expertise in motion control technology, leveraging a more comprehensive suite of integrated product systems to empower a wider range of industries—including printing, packaging, textiles, and 3C electronics—and to grow alongside China's intelligent manufacturing sector.
