Lingchen Technology PLC Overlock Machine Solution

In the textile industry, towel overlocking machines have long faced a critical challenge: the need for manual calculation of trajectory interpolation coordinates for complex patterns. Under traditional G-code interpolation schemes, operators are required to manually calculate the coordinates for every interpolation point based on the pattern graphic—a process that is tedious, time-consuming, and prone to error. Furthermore, changing patterns or dimensions necessitates a complete recalibration, placing extremely high demands on the operator's professional expertise. Drawing upon over two decades of accumulated expertise in motion control technology, Lingchen Technology has successfully developed a new type of overlocking machine—centered around its proprietary industrial PLC—that features "one-click pattern import for complex designs." By employing inverse kinematics trajectory algorithms to automatically calculate interpolation coordinates, the machine achieves highly simplified operation and robust pattern compatibility, thereby completely eliminating the cumbersome manual process of calculating interpolation trajectories.

Key Process Points and Performance Indicators

Process Logic
Multi-axis Coordination: Synchronized operation of the sewing machine axis and the trajectory axis.
Critical Alignment: Precise matching of the sewing machine stitch pitch with the trajectory step length (Core Quality Assurance).
Action Synchronization: Synchronized control across the entire workflow—feeding, sewing, cutting, and material collection.

Performance Specifications
Linear Speed: 150 mm/s
Arc Speed: 50 mm/s
Thread Feeding Speed: 100 mm/s
Slow Start Speed: 10 mm/s
Slow Start Stitch Count: 1–3 stitches (Configurable)
Stitch Length: Configurable
Reinforcement Stitch Length: Configurable
Core Function: One-Touch Pattern Import

Key Technical Challenges:

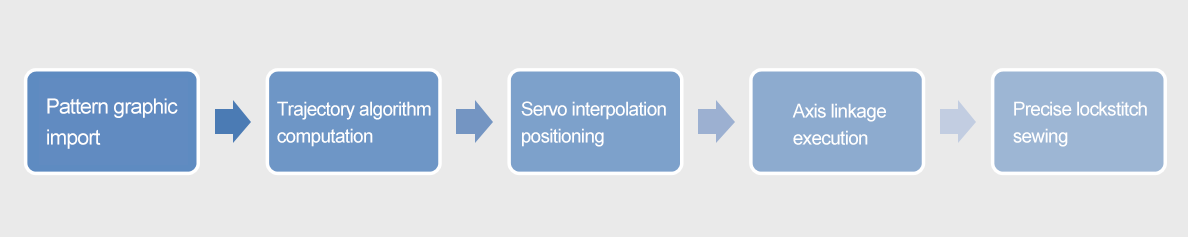

Automated G-code generation from graphic data → Inverse kinematics coordinate transformation → Servo interpolation and positioning. Core challenge for multi-pattern compatibility: precisely matching stitch pitch with trajectory step length to prevent fabric puckering and thread tension issues, thereby ensuring optimal sewing quality.

Customer Pain Points

❌ No Visual Guidance: Traditional CNC interpolation calculations are cumbersome and inefficient.
❌ Complex Debugging: Changing patterns or dimensions requires extensive debugging and is time-consuming.
❌ High Barrier to Entry: The multitude of parameters demands a high level of professional expertise from operators.
❌ Precision Unreliable: Manual calculations are prone to error, resulting in low overlocking precision and poor product consistency.

Lingchen Technology Solutions

The integrated hardware and software solution—comprising the Lingchen PLC1000 series, Lingchen servo drives, and Lingchen touchscreens—has successfully met all performance benchmarks, including a linear speed of 150 mm/s and an arc speed of 50 mm/s. The system operates with exceptional stability and zero step loss; sewing is free from puckering or tension-related distortion, while overlocking precision and product consistency have been significantly enhanced.

Core Functional Modules

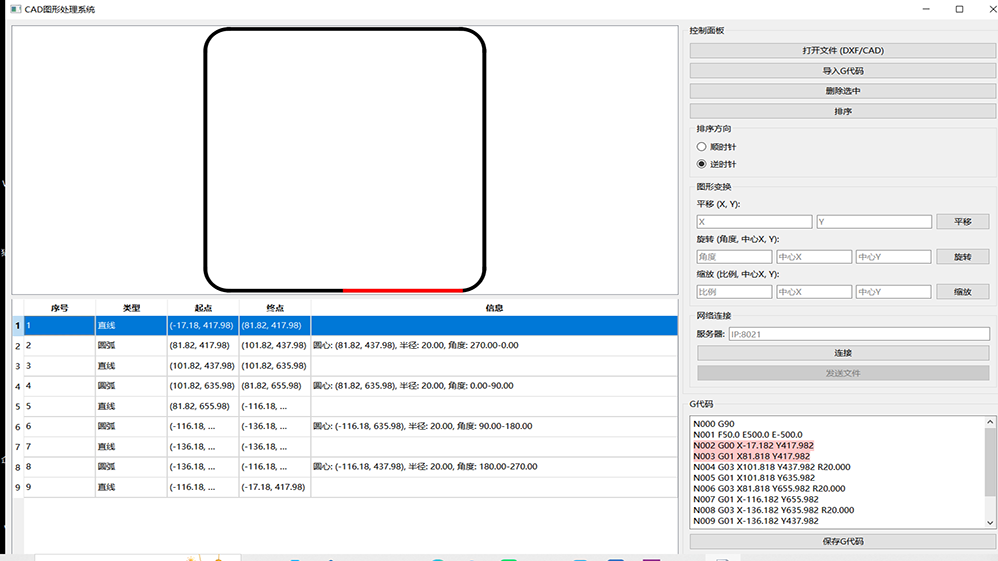

① The One-Touch Import Module supports the direct import of DXF/CAD graphics, featuring automated parsing that eliminates the need for manual programming.

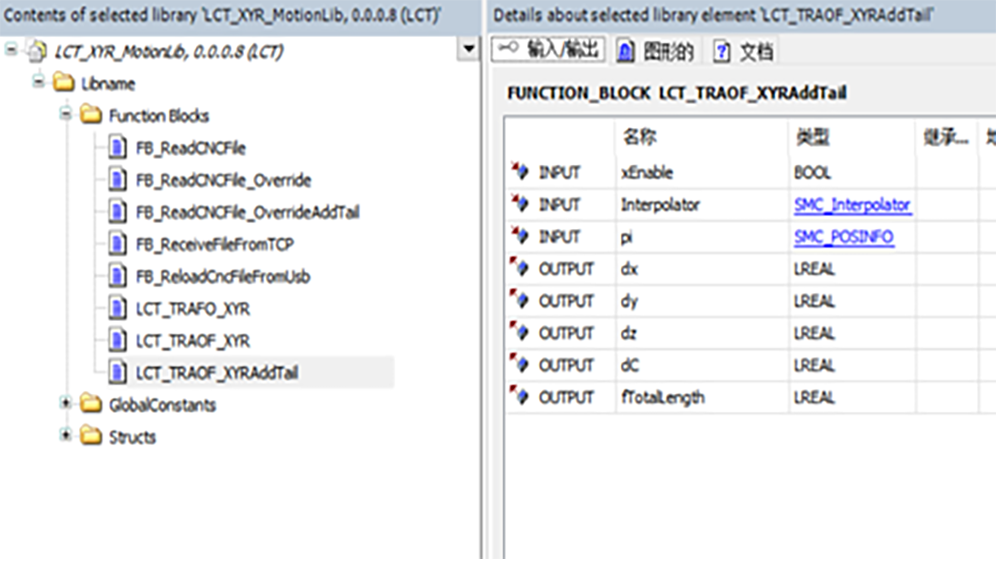

② A proprietary inverse kinematics algorithm powers the LCT_TRAOF_XYR inverse kinematics function block, enabling automatic coordinate calculation and the precise generation of interpolation trajectories.

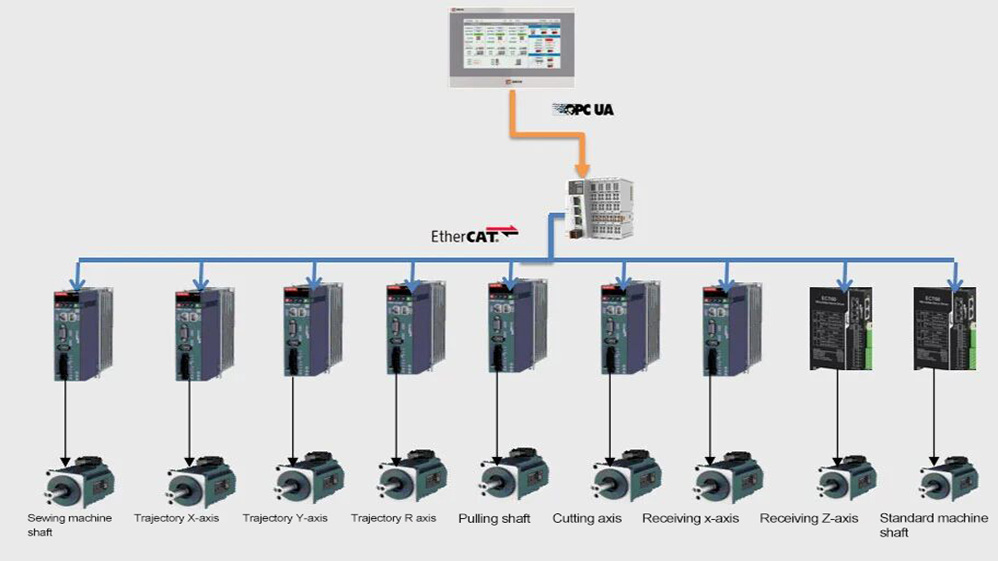

③ The multi-axis servo linkage architecture is built upon an EtherCAT-based multi-axis servo system, ensuring a precise match between stitch pitch and trajectory step length—thereby fundamentally resolving issues related to fabric puckering.
④ A streamlined Human-Machine Interface (HMI) design features an intuitive touchscreen, offering parameter visualization and "foolproof" operation that allows even operators with zero prior experience to quickly master the system.

Value and Advantages

① One-touch pattern import enables operators with zero prior experience to get started immediately; a proprietary algorithm eliminates manual errors; versatile compatibility supports rapid pattern switching across multiple graphic formats; and multi-axis linkage fundamentally resolves the industry-wide pain point of fabric puckering. Furthermore, a complete suite of proprietary hardware and software ensures convenient maintenance and controllable costs.
② This system lowers operational barriers and labor costs, boosts the efficiency of pattern changes and equipment utilization, guarantees the quality standards required for high-end textiles, and enhances the capacity to rapidly respond to diverse production demands.

Empowering Intelligent Textile Manufacturing Through Technological Innovation

From manual point calculation to one-touch pattern loading, and from complex commissioning to ultra-simple operation, Lingchen Technology has completely revolutionized the user experience of towel overlocking machines through a comprehensive solution integrating PLCs, servo drives, and touchscreens. This represents far more than a mere equipment upgrade; it signifies a paradigm shift in production processes. We firmly believe that Lingchen’s solutions—anchored by industrial PLCs, driven by proprietary algorithms, and underpinned by seamless hardware-software integration—will continue to inject new momentum for intelligent manufacturing across industries such as textiles, 3C electronics, semiconductors, and new energy.
