Lingchen's complete family of frame grabbers
In 2023, Lingchen Technology launched a series of image capture cards based on Intel I210-AT main controller, including G4PL-I210, G04L-I210 and G02L-I210. G04L-I210 supports Gigabit 4 LAN, G4PL-I210 supports POE (Power over Ethernet) Gigabit 4 LAN, and G02L-I210 supports Gigabit 2 LAN, which have cost-effective performance. Ethernet ports, and G02L-I210 supports Gigabit 2 Ethernet ports, which are cost-effective. All three products support full-height and half-height stopper mounting, so customers can choose according to their needs.Recently, Lingsen Technology has launched G4PL-I350, G04L-I350 and X02L-X550 series of new products. G4PL-I350 and G04L-I350 adopt Intel I350 main control chip, and X02L-X550 adopts Intel X550 main control chip. The new products have enriched the product line to meet the needs of different applications; the RJ45 interface of the I350 series is designed with wider spacing, while the X02L-X550 10Gbps image capture card is characterised by high bandwidth, low latency and high reliability.
Recently, Lingchen Technology has launched G4PL-I350, G04L-I350 and X02L-X550 series of new products. G4PL-I350 and G04L-I350 adopt Intel I350 main control chip, and X02L-X550 adopts Intel X550 main control chip. The new products have enriched the product line to meet the needs of different applications; the RJ45 interface of the I350 series is designed with wider spacing, while the X02L-X550 10Gbps image capture card is characterised by high bandwidth, low latency and high reliability.
Product Advantages
NO.1 Advantage of Intel Controller
Lingchen Technology's full range of frame grabbers use Intel chipsets, including the I210, I350, and X550, which ensures stability, high speed, reliability, and low latency, ensuring that users have a high quality of experience during use.
NO.2 Abundant Product Choices
Customers can choose I210, I350 or X550 series products according to different master control platforms. Among them, I210 and I350 support Gigabit network, while X550 supports 10 Gigabit network. In addition, users can also choose different numbers of RJ45 interfaces according to their needs. The G4PL and G04L series support four network ports, while the G02L and X02L support two network ports. It is worth mentioning that G4PL series capture cards also support POE function, which further enhances the flexibility and applicability of the product.
NO.3 Optimised Product Design

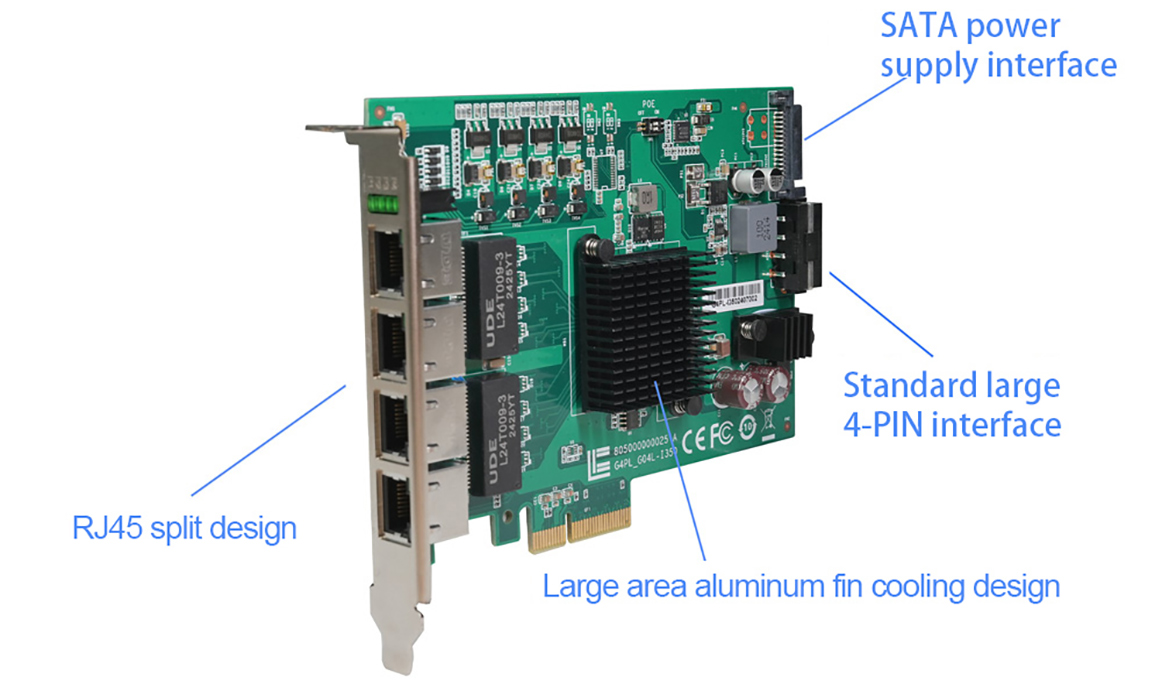

The G4PL-I350, G04L-I350, G02L-I210 and X02L-X550 series of image capture cards have been optimised in terms of design, with the RJ45 interface adopting a separated design to provide a more open connection space. In addition, the product also adopts a large area of aluminium fins heat dissipation design, effectively ensure the efficient and stable operation for a long time, the RJ45 interface is chosen to thicken the sinking gold material, to ensure that the connection is firm and reliable.
NO.4 Support POE Function
G4PL-I210 and G4PL-I350 series of image capture cards support POE power supply function, in line with IEEE 1588 and IEEE 802.3at specifications, to provide a standard external large 4Pin power supply auxiliary power interface. Among them, G4PL-I350 also supports SATA power supply interface. Providing power directly through the Ethernet cable eliminates the need for additional power harnesses, reduces wiring clutter, saves space, lowers installation and routine maintenance costs, solves the pain point of needing additional power supply for NICs, and makes industrial site deployments neater and more efficient.
NO.5 Powerful Compatibility
The full series of image capture cards support a variety of operating systems, including Windows 7, Windows 10 and Linux. In terms of hardware, all capture cards are adapted to PCIe x4 slot, and at the same time compatible with PCIe x1, x8 and x16 channels, able to connect to different motherboards through the PCIe slot, providing flexible and high-performance solutions for bandwidth and network reliability.G4PL, G04L and G02L series of frame grabbers are equipped with 10/100/1000Mbps self-adaptive transmission characteristics, which can be quickly compatible with different rates of network equipment. The G4PL, G04L and G02L series capture cards are equipped with 10/100/1000Mbps adaptive transmission feature, which can be quickly compatible with different rates of network devices. The X02L-X550 capture card supports the highest 10Gbps Ethernet transmission rate, and is backward compatible with 5000Mbps, 2500Mbps, 1000Mbps and 100Mbps rates, which further strengthens the scalability and reliability of the product.
NO.6 Multiple Application Scenarios
Thanks to their excellent performance, our image capture cards are widely used in key industries such as intelligent transport, semiconductor, lithium-ion, medical, 3C and automotive. The reliable technical support and high adaptability of our cards have strongly promoted the digital and intelligent development process of various industries.
With its profound technology accumulation, comprehensive product matrix, careful design optimisation and excellent system compatibility, Lingchen's image capture card series can not only provide customers with efficient and reliable solutions, but also promote the innovative development of the industry and fully satisfy the growing diversified needs of the market!
