TOKK Linear Modules Empower Automotive Parts Dispensing Equipment
Today, as automotive manufacturing accelerates its transformation towards electrification, intelligence, and lightweighting, the bonding, sealing, and fixing processes of components are facing unprecedented challenges in precision and reliability. As high-precision automated fluid control equipment, dispensing machines play a key role in scenarios such as sensor packaging, controller protection, and speaker fixing by precisely applying fluids like glue, grease, and sealants. The precision and stability of the motion module directly determine the accuracy of the dispensing path and the consistency of the glue volume. TOKK linear modules, with their high-rigidity structure, micron-level repeat positioning accuracy, and high dynamic response characteristics, provide a reliable motion core for automotive parts dispensing equipment, helping the industry achieve a process upgrade from 'precision gluing' to 'quality assurance'.
Automotive Parts Dispensing
The dispensing process for automotive electronics and components is extremely demanding. Electronic devices such as sensors and controllers need to be encapsulated with precise glue volume control and positioning to protect internal circuits and components from vibration, moisture, and temperature changes. The fixing and sealing of speakers in automotive audio systems also rely on high-precision dispensing operations.
Unlike traditional industrial dispensing, automotive parts dispensing faces three core challenges:
- High precision required: The dispensing position for precision components like sensors and ECUs must be accurate to the micron level. Glue volume deviations can lead to seal failure or electrical faults.
- Strict reliability requirements: Automotive components operate under harsh conditions such as high temperature, high pressure, and vibration for extended periods. The bonding strength and durability of the dispensing directly affect vehicle safety.
- Balancing efficiency and flexibility: With a wide variety of automotive part models, dispensing equipment must support quick changeovers and adapt to multiple product types.

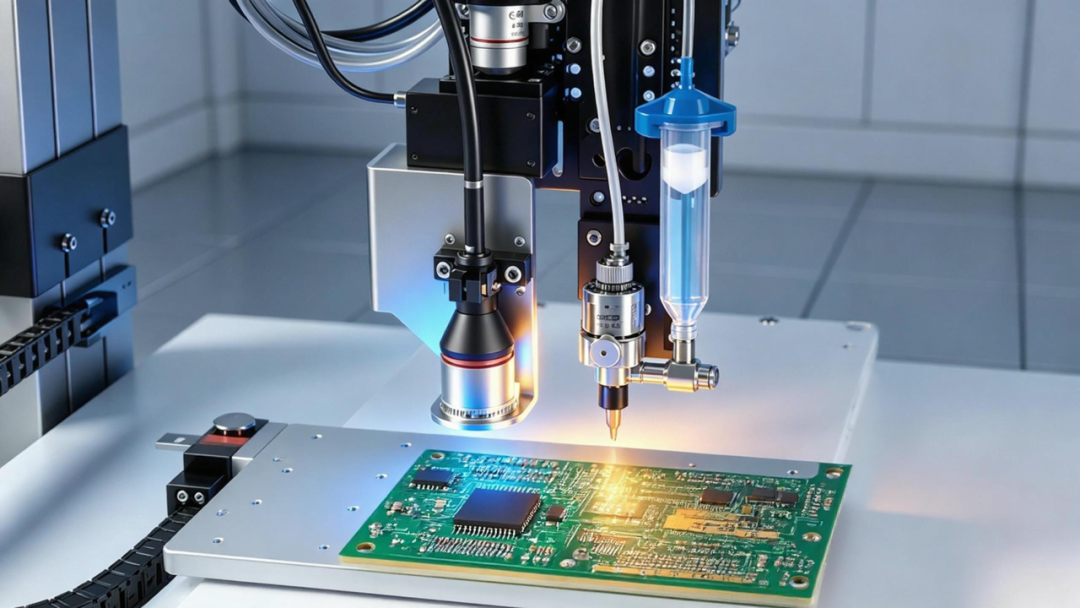

To address these challenges, modern automotive dispensing equipment commonly features CCD vision positioning systems. These use high-definition cameras and image processing algorithms to accurately identify product positions, enabling precise dispensing on complex shapes or tiny components and effectively avoiding human error. The linear module, which carries the dispensing head to perform precise trajectory movements, is the 'precision cornerstone' of the entire system.
TOKK Linear Modules
TOKK linear modules feature a high-precision ball screw and linear guide integrated design, widely used in dispensing, handling, and inspection applications within the 3C, lithium battery, and photovoltaic industries. For the demanding conditions of automotive parts dispensing, TOKK modules offer the following core advantages:
- High Rigidity Structure to Withstand Dispensing Reaction Forces – During dispensing, the contact or jetting of the dispensing head with the workpiece generates reaction forces that can cause trajectory deviations. TOKK linear modules utilize a high-rigidity structural design to effectively handle these reaction forces, ensuring trajectory accuracy. Whether for contact dispensing or non-contact jetting, the module maintains smooth motion, preventing glue path deviations or overflow caused by vibration.
- Micron-Level Repeat Positioning Accuracy for Dispensing Consistency – TOKK linear modules achieve micron-level repeat positioning accuracy, ensuring the dispensing head reaches the predetermined coordinates precisely every time. In scenarios requiring repeated dispensing, such as sensor packaging and controller protection, this characteristic ensures consistency and reliability for every product, significantly reducing the risk of faults caused by poor dispensing.
- High Dynamic Response for Complex Dispensing Trajectories – Automotive components come in diverse shapes, and dispensing paths often involve complex trajectories like curves and slopes. TOKK linear modules feature high acceleration and fast start-stop response. Combined with real-time positioning and deviation compensation from the CCD vision system, they enable precise gluing on complex workpiece surfaces. The multi-axis combination capability of the modules also allows flexible integration into 3-axis, 4-axis, or even 5-axis dispensing systems.
- Long-Life, Maintenance-Free for Continuous Production – Automotive parts production typically involves high-volume, continuous operations where equipment downtime causes significant capacity loss. TOKK linear modules use high-quality screws and dust-proof structures, offering excellent wear resistance and precision retention. The long maintenance cycles effectively reduce equipment upkeep frequency, ensuring stable, long-term production line operation.
Application Value
Automotive parts dispensing equipment equipped with TOKK linear modules delivers significant benefits in actual production:
- Improved Dispensing Accuracy: Micron-level repeat positioning accuracy combined with CCD vision positioning ensures precise glue dot placement and accurate volume control, effectively preventing issues like overflow or missed glue.
- Enhanced Product Reliability: Precise sealing and bonding effectively protect electronic components like sensors and controllers, improving the durability of automotive parts under harsh conditions like high temperature and vibration.
- Increased Production Efficiency: High dynamic response and fast start-stop capabilities shorten the single-piece dispensing cycle, significantly improving overall equipment effectiveness.
- Quick Changeover Adaptability: The modular design supports rapid changeovers, flexibly adapting to dispensing needs for components of different specifications and shortening production line switching time.
This solution is widely used in automotive parts dispensing scenarios such as sensor packaging, controller protection, speaker fixing, and seal coating, helping customers achieve a smooth upgrade from traditional manual or low-precision equipment to high-precision automated dispensing.
Conclusion
From the precise packaging of a sensor to the reliable sealing of a controller, every dispensing operation on automotive components is critical to overall vehicle safety and performance. TOKK linear modules, with their high-rigidity structure, micron-level repeat positioning accuracy, and high dynamic response as core advantages, provide a stable and reliable motion solution for automotive parts dispensing equipment. In the future, TOKK will continue to delve into the field of precision motion control, helping automotive manufacturing move towards higher quality and greater efficiency.
