TOKK Linear Modules Empower PCB In‑line Marking Machines

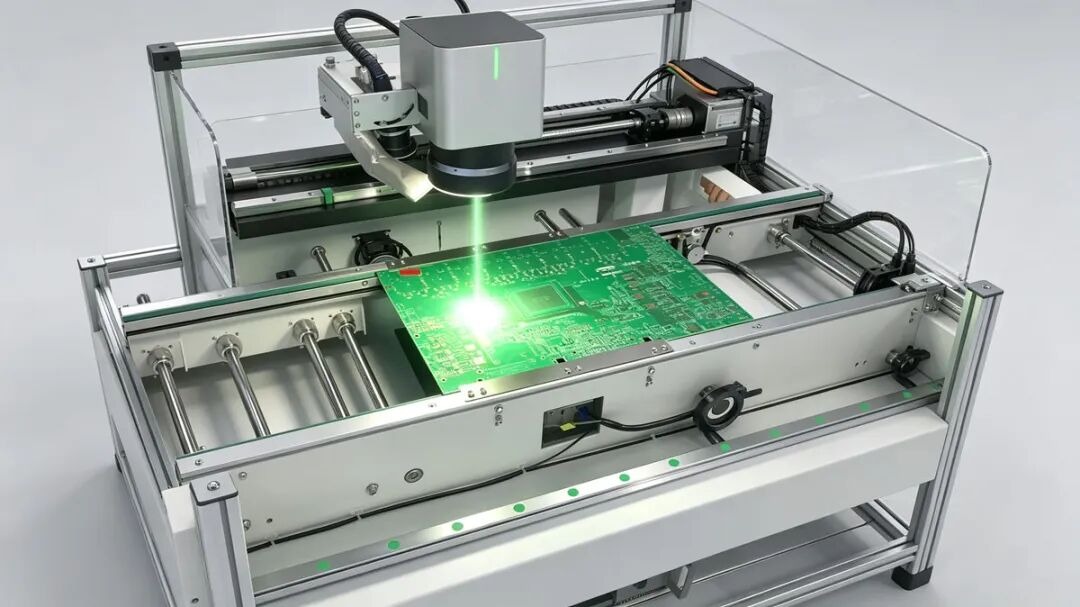

PCB online marking equipment uses CO₂ lasers and can adapt to fiber, ultraviolet, green, and other laser sources to meet the marking needs of PCBs made of different materials. The marking process is fully automated, with fast and precise CCD positioning; it can be connected online to SMT lines or work offline with loading/unloading. The coordinated operation of functional modules—dual upper/lower marking heads, CCD vision positioning, automatic focusing, conveyor flow, and fume purifier—enables high-speed, high-quality marking across a large format.

As electronic products move toward miniaturization and high density, component layouts on PCBs are becoming increasingly compact, leaving smaller areas available for marking and demanding ever-higher marking precision. At the same time, the stringent requirements for reliability and traceability in automotive electronics, aerospace, and other fields mean PCB markings must remain clearly legible under harsh conditions such as high temperature, high humidity, and vibration—posing severe challenges to the positioning accuracy, repeatability, and long-term stability of marking equipment.

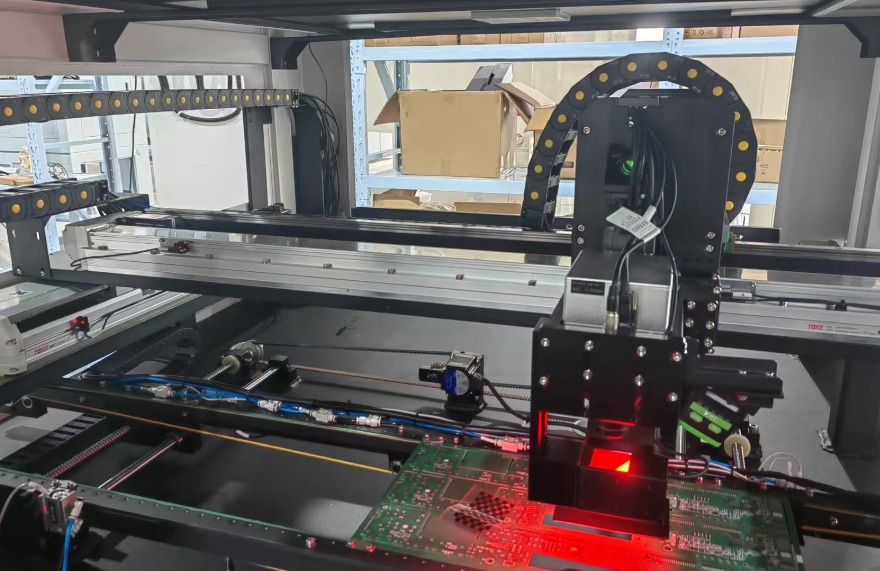

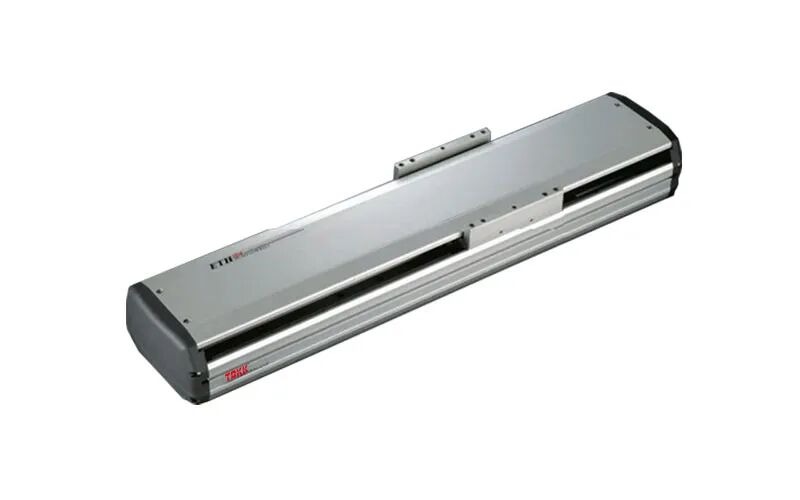

In a PCB online marking machine, the laser marking system moves along the X and Y axes to achieve large-format marking, and its motion accuracy directly determines the correctness and consistency of marking positions. With their high precision, high rigidity, and high dynamic response, TOKK linear modules have become the core motion components of PCB online marking equipment.

1. High-Precision Positioning for Accurate Marking Placement

The area available for marking on a PCB is usually very limited, and on high-end PCBs with extremely high component density, even a slight marking deviation may cover a pad or component. TOKK linear modules achieve micron-level repeatability, ensuring the laser head reaches the intended coordinate position precisely with every movement. In high-precision marking scenarios for automotive electronic PCBs, this characteristic keeps marking content within the designated area, avoiding marking defects or scrapping caused by positional offset.

2. High-Rigidity Structure Ensuring Stability at High Speed

PCB online marking equipment typically operates online connected to SMT lines, with fast production beats and long continuous running times. TOKK linear modules adopt a high-rigidity structural design that maintains smooth, jitter-free motion even under high-speed reciprocating movement and heavy loads, ensuring the laser focus does not shift during marking and keeping marking lines clear with sharp edges. This is especially important for high-quality marking of aerospace PCBs—under extreme conditions, legible markings are the basic prerequisite for full life-cycle product traceability.

3. High Dynamic Response for Large-Format High-Speed Marking

PCB online marking equipment must complete multi-point marking across a large format, with the laser marking system moving rapidly and starting/stopping frequently along the X and Y axes. TOKK linear modules feature excellent dynamic response, enabling fast start/stop and high-speed translation, and work with the CCD vision positioning system for flying-shot positioning, greatly shortening the marking cycle per board. Whether for QR codes, 1D barcodes, characters, or graphic marking, the linear modules achieve precise positioning at high speed and high acceleration, significantly improving overall equipment throughput.

4. Long Life and Maintenance-Free Operation for 7×24 Continuous Production

Electronics manufacturing lines typically run continuously, and equipment downtime causes significant capacity loss. TOKK linear modules use high-quality screws and dust-proof structures with good wear resistance and excellent precision retention over long maintenance intervals, effectively reducing downtime for maintenance and ensuring consistent accuracy during prolonged continuous operation, meeting the high-reliability requirements of SMT lines.

PCB online marking machines equipped with TOKK linear modules deliver significant benefits in real production:

Improved marking precision: micron-level repeatability ensures accurate placement of marking content, avoiding marking defects caused by positional offset and reducing PCB marking defect rates.

Increased production efficiency: high dynamic response and fast start/stop characteristics shorten the marking cycle per board, significantly boosting equipment throughput to meet the high-speed production needs of SMT lines.

Enhanced traceability reliability: clear and durable markings ensure products remain traceable throughout their life cycle, satisfying the strict quality-traceability requirements of automotive electronics, aerospace, and other fields.

Stable equipment operation: the long-life, maintenance-free design maintains accuracy consistency during 7×24 continuous operation and reduces maintenance costs.

This solution has been widely applied in PCB online marking equipment across electronics manufacturing, automotive electronics, aerospace, and other fields, helping customers achieve efficient, accurate, and traceable marking operations.

From the rapid iteration of consumer electronics to the safety and reliability of automotive electronics, from the high standards of aerospace to the strict requirements of industrial control, the marking on every PCB carries the product's quality promise and traceability mission. Behind this clear imprint is the day-to-day stable commitment of a precision motion system. With high precision, high rigidity, and high dynamic response as its core advantages, TOKK linear modules provide a reliable motion solution for PCB online marking equipment. In the future, TOKK will continue to deepen its expertise in precision motion control, helping electronics manufacturing move toward higher efficiency and higher quality.
