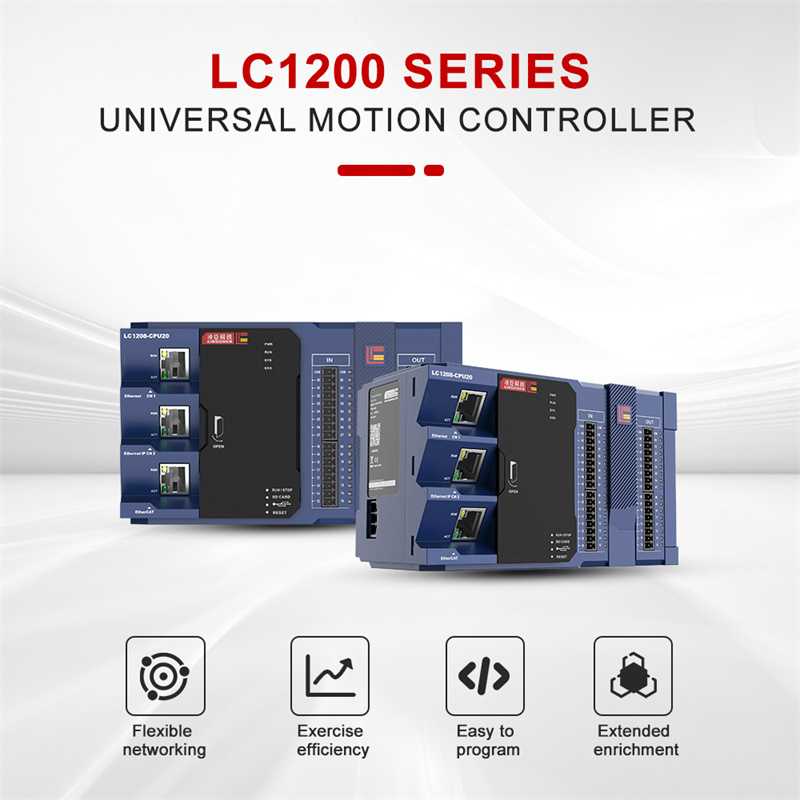

PLC1200 Industrial Motion Control Plc Programming Controller
Product Features
As the concepts of Industry 4.0 and Real-Time Operating Systems (RTOS) gain traction, the development trend of motion control systems is shifting towards ease of use, miniaturization, and high cost-effectiveness. In response to these trends, Lingchen has launched the next generation of the LC1200 series motion controllers.
1.ample connectivity
The LC1200 series PLC offers 16 input channels and 16 output channels, and supports Modbus TCP/EtherNet IP/OPC UA Server/Adbus RTU universal protocols. It provides ample connectivity for various sensors and actuators, facilitating stable data interaction with other devices and systems.
2.High Computing Power:
The LC1200 series PLC is equipped with high-end processors from internationally renowned brands, featuring a 1GHz main frequency and a dual-core architecture. This powerful processing capability ensures that the controller can handle complex tasks and execute multiple operations simultaneously, making it ideal for demanding industrial applications.

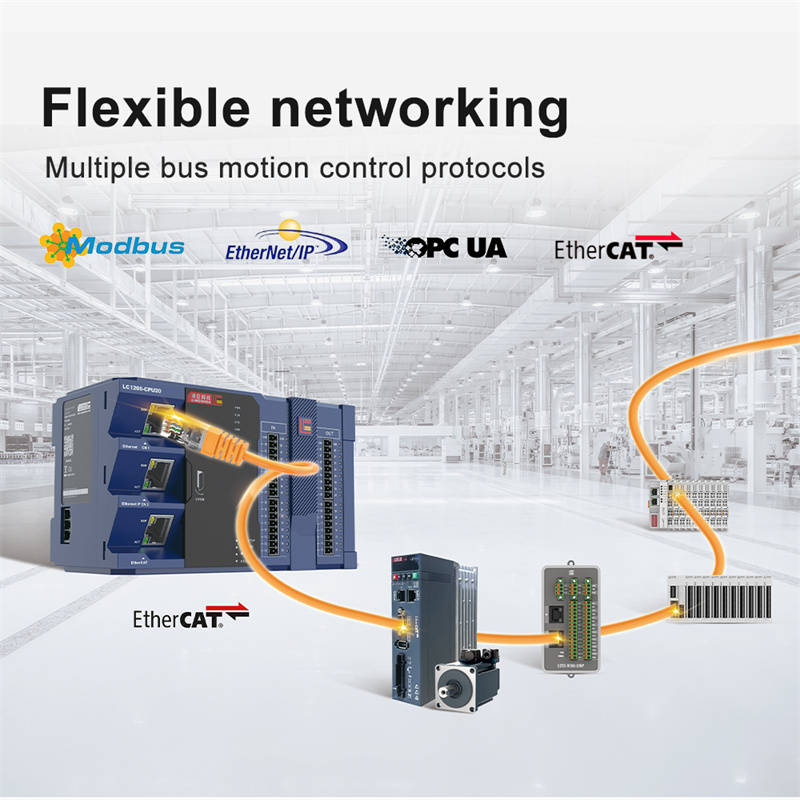

3.Rich Fieldbus Support:
The LC1200 series supports a variety of fieldbus protocols, including EtherCAT, EtherNet/IP, OPC UA Server, Modbus TCP, and Modbus serial communication. This extensive compatibility allows for seamless integration with a wide range of devices and systems, facilitating efficient communication and data exchange in diverse automation environments.
4.Expansion Capabilities:
The LC1200 series offers significant expansion capabilities. Users can locally expand the system with our LD1100 series I/O modules, or they can remotely extend it with the LC1100 and LD1100 series control modules. This flexibility allows for tailored solutions that can grow with the needs of the application, ensuring that the system remains scalable and adaptable.
5.Powerful Motion Control Functions:
The LC1200 series PLC boasts robust motion control features, including G-code execution for CNC functions such as linear, circular, and helical interpolation. It also supports electronic gearing and electronic cam multi-axis linkage, enabling precise and coordinated motion across multiple axes. Additionally, the controller includes standard function blocks for basic single-axis motion, providing users with a comprehensive toolkit for implementing complex motion control tasks.
6.Application Areas
The LC1200 series is designed to seamlessly integrate motion control technology with information technology, leveraging the capabilities of the CODESYS industrial automation software platform. This integration allows for enhanced performance and flexibility, making it an ideal solution for a wide range of applications, including non-standard automation, 3C (computer, communication, and consumer electronics), photovoltaic systems, logistics, and lithium battery production.
In summary, the LC1200 series PLC is designed to meet the evolving demands of modern automation. With its high computing power, rich fieldbus support, extensive expansion capabilities, and powerful motion control functions, it is well-equipped to handle a wide range of applications in various industries, including manufacturing, logistics, and beyond. This makes it an ideal choice for engineers and system integrators looking to implement efficient and reliable automation solutions.Lingchen is committed to delivering solutions that meet the evolving needs of modern industries.
Specification parameters
| LC1200 Series product specifications | ||
| System | Processor | Cortex-A7 Dual core main frequency 1G |
| Memory | DDR3L 1GB | |
| Hard disk storage | 8GB | |
| Operating system | Linux | |
| Power down hold space | 512KB | |
| User program storage space | 8MB | |
| User data storage space | 16MB | |
| Interface | network | LAN11000Mbps LAN2/LAN3 100Mbps 2-wayEthernet，1-wayEtherCAT |
| serial port | 2x RS485；1x RS232 | |
| USB | 1x USB HOST 2.0 | |
| TF | USB | |
| LED | POWER、SYS、RUN、ERR、IO | |
| IO | 16x DI ；16x DO | |
| button | KEY- Run/Stop；KEY-RST | |
| RTC | support | |
| Extend interface | The local I/O expansion interface expands the LD1100 series DI/DO and AI/AO module | |
| Motion control | control axis | 8axis、16axis、32axis |
| EC synchronization jitter | +/-50μs | |
| EC DC method | Servo DC-Distributed clock | |
| EC transmission distance | <100m | |
| EC transmission speed | 100Mbit/s | |
| EC synchronization period | 500μs (1ms 8axis 2ms16axis 4ms 32axis) | |
| Dual master station functionunsupport | unsupport | |
| power | 24V DC(±20 %) 1A | |
| Power | size | 192 x 90 x 71(mm³) |
| Mechanical | operating temperature | 0…+50℃ |
| Ambient temperature | storage temperature | -40…+75℃ |
| relative humidity | 95% | |
| environmental suitability | IEC 91131-2 | |
| Others | EMC | IEC 91131-2/GB 4824 |
| Class | IP 20 | |
