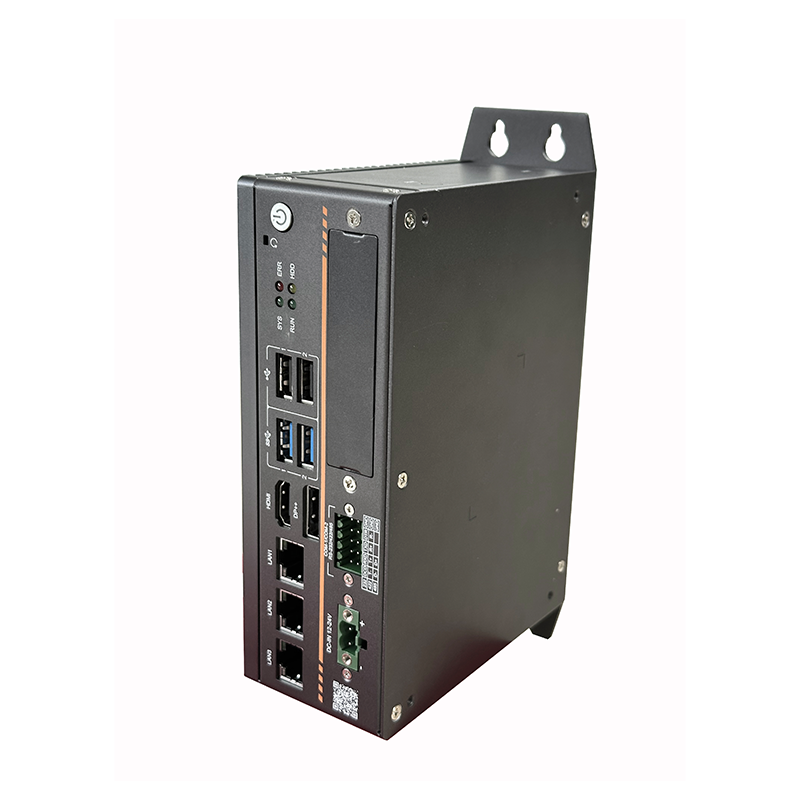

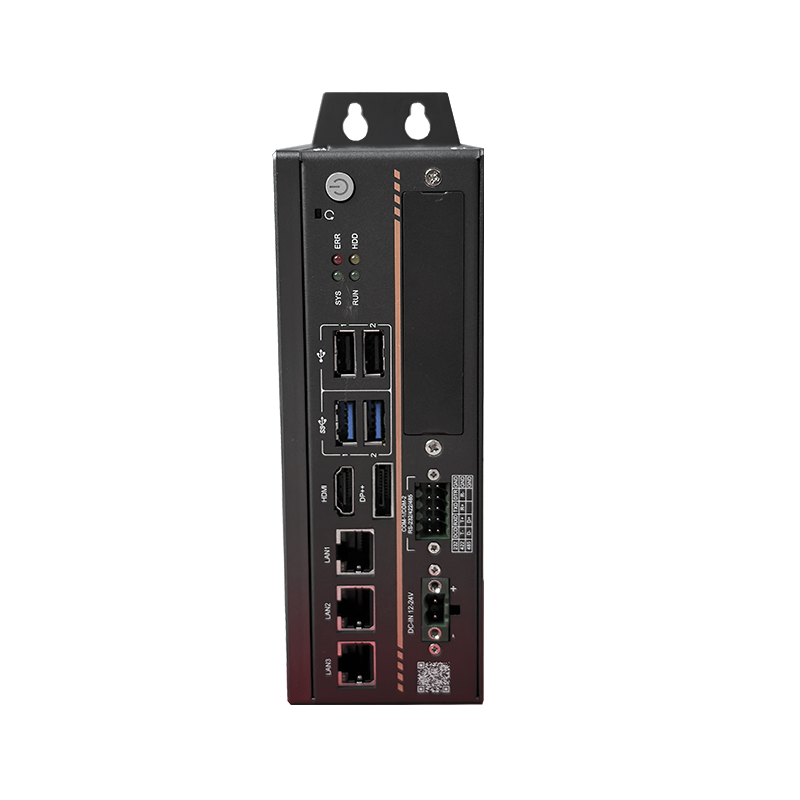

PLC1800 series intelligent mechanical controller
PLC1800 series intelligent mechanical controller
Intel J6413 4 Cores CPU
1. Dual EtherCAT master station design, with super simple informationization and digitization, capable of supporting up to 128 axes and a synchronization period of 1ms for 32 axes
2. Built in UPS design, no need for external connection, saving the cost of UPS
3. Provide an easy-to-use EtherCAT control+driver solution and programming template program suitable for scenarios such as point and cam.
4. The EtherCAT cycle can be set to a minimum of 500us (depending on the driver), with a 32 axis synchronization cycle of 1ms.
5. Three port design (EtherNet+2 * EtherCAT)

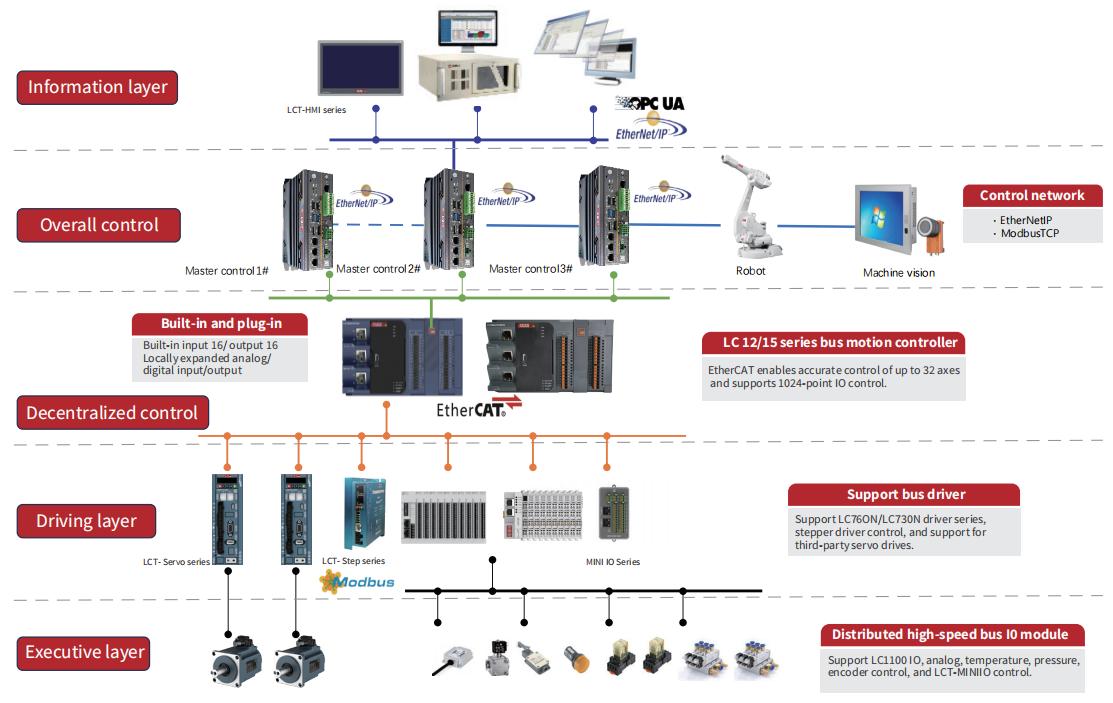

6. Network connection based on EtherNet/IP and OPC UA, compatible with traditional Ethernet and supporting high real-time transmission for industrial control, making it easy to build production line level network communication
LC1800 series product specifications and parameters |
||
| system | processor | Intel Celeron J6413 dominant frequency1.8G |
| Memory | DDR4-4G | |
| storage | SSD128G | |
| Maintain space in case of power failure | 5MB | |
| User program storage space | 128MB | |
| User data storage space | 128MB | |
| operating system | Linux | |
| interface | Network interface | 3个,1个EtherNet/2个EtherCAT |
| Serial port | RS232x1;RS485 x 1 | |
| USB | 4个 2个USB3.0;2个USB2.0 | |
| LED | SYS、 HDD、RUN、ERR | |
| key | Power button, RST reset function button | |
| RTC | have | |
| IO expansion interface | Cannot be locally extended | |
| Motion control | Number of motion axes | 16axis、32axis、48axis、64axis、128axis |
| EtherCAT maximum synchronous jitter | +/-50us | |
| EtherCAT synchronization method | Servo DC - Distributed Clock | |
| EtherCAT transmission distance | Less than 100m between two nodes | |
| EtherCAT transmission rate | 100Mbit/s | |
| EtherCAT minimum synchronization period | 500μs | |
| Dual master station function | support | |
| Ring network function | Only supports EthereCAT coupling module | |
| power supply | power supply | 9-36V DC |
| machinery | size | Dimensions:170mm*120mm*62.5mm |
| ambient temperature | operation temperature | 0...+50°C |
| Storage temperature | -40...+75°C | |
| relative humidity | 95%,No condensation | |
| other | Environmental adaptability | Compliant with IEC 61131-2 standard |
| EMC performance | Compliant with IEC 61131-2/GB 4824 standard | |
| protection grade | IP 20 | |
