Single-axis precision linear stage series

The single-axis precision linear stage series is an advanced device designed for high-precision positioning. With its high performance and low-cost solutions, this series of products has become an ideal choice in many industries. Its high-rigidity mechanical structure ensures stability and reliability in various working environments. At the same time, the flexible configuration options allow users to choose different strokes and widths according to specific needs. The stroke can reach up to 300mm, meeting a variety of application scenarios.

In terms of structural design, the positioning platform adopts linear motor drive technology, which has fast movement speed and excellent dynamic performance. Due to low friction, this device can easily achieve precise position control, which is particularly suitable for applications that require large stroke, high precision and high speed. Whether in automated production lines, laboratory equipment or high-end manufacturing, the direct drive motor high-precision positioning platform can show excellent performance.

In addition, in order to meet the needs of different customers, we also provide customized services, and users can choose a larger stroke according to specific application requirements. This flexibility enables our products to adapt to various complex working environments, further enhancing their market competitiveness. In short, the direct-drive motor high-precision positioning platform is an ideal choice for those who pursue efficiency, precision and flexibility.

    Contact us
    product details
    download

    PM115LS

    PLAM-XY series Overlay air flotation platform
    Parameter Table
    Platform model PLAM-XY-300-300
    Effective stroke 300mm*300mm
    positioning accuracy ±0.3 μm
    Bi directional repetitive positioning accuracy  ±0.2 μm
    pitch  ±3 arc sec
    yaw ±3 arc sec
    roll ±3 arc sec
    Straightness ±1 μm
    Flatness ±1 μm
    resolution 1nm
    Maximum acceleration 2g
    maximum speed 1000 mm/s
    Maximum horizontal load 60 kg
    Maximum radial load 30 kg
    Continuous thrust Upper shaft    78 N
    lower shaft   156 N
    Peak thrust Upper shaft   432 N
    lower shaft    864 N
    on-bottom stability ±10 nm
    Working pressure 5.5 bar (recommended dry air, filter water and oil, filter dust to below 0.5 μm)
    Platform quality 75kg
    Platform material Aluminium
    mean time between failures 25000Hours

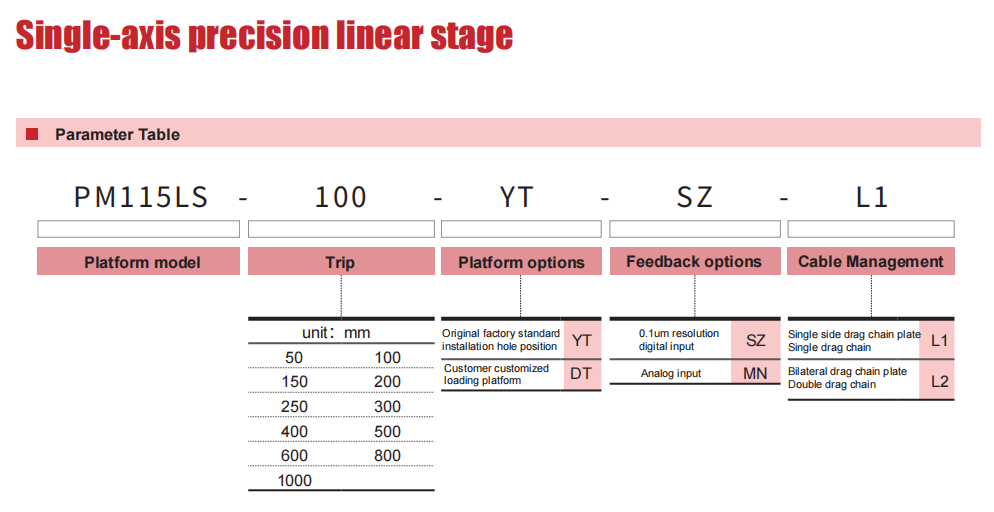

    17443619004061744361945159

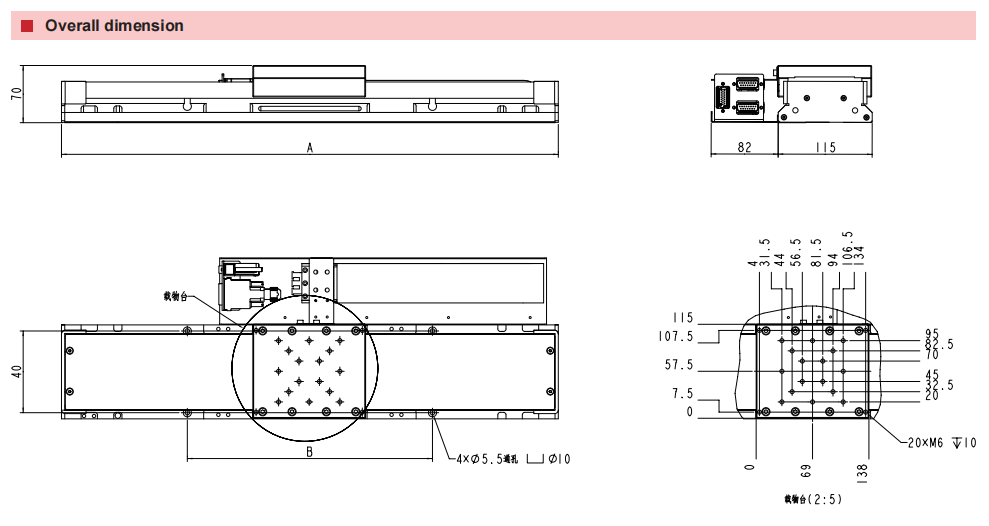

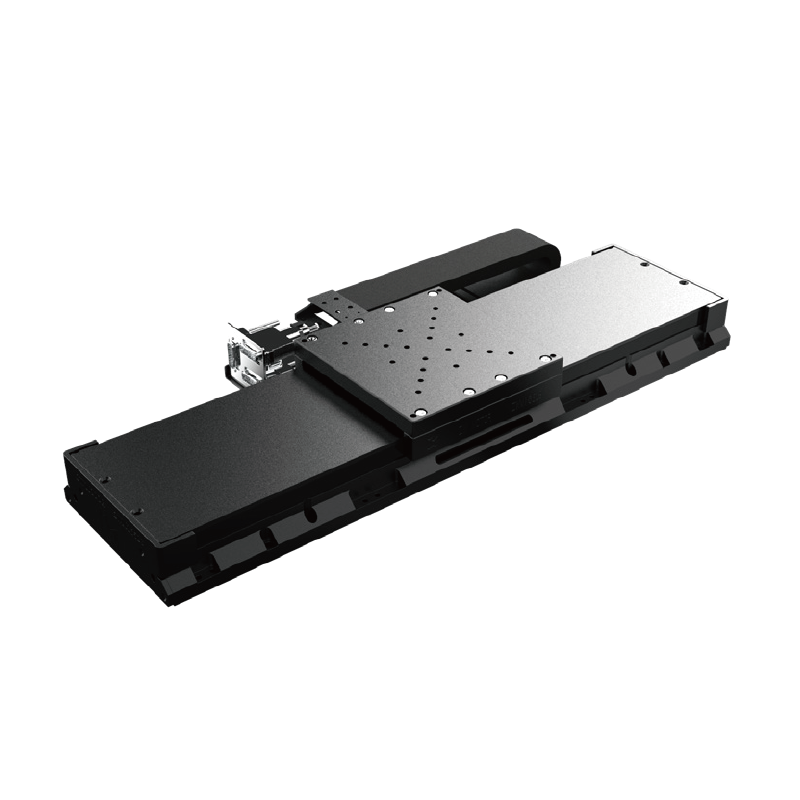

    PM165LS

    PM165LS specification Single axis precision linear platform
    Parameter Table
    Platform model PM165LS-100 PM165LS-200 PM165LS-300 PM165LS-400 PM165LS-500 PM165LS-600 PM165LS-800 PM165LS-1000
    Effective stroke 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm
    positioning accuracy ±1 μm ±1.5 μm ±1.5 μm ±1.5 μm ±2 μm ±2 μm ±2 μm ±2 μm
    Bi directional repetitive positioning accuracy  ±0.4 μm ±0.5 μm ±0.5 μm ±0.5μm ±0.5 μm ±0.5 μm ±0.5 μm ±0.5 μm
    pitch 6 arc sec 8.5 arc sec 12 arc sec 14.5 arc sec 16.5 arc sec 19 arc sec 21 arc sec 25 arc sec
    yaw 6 arc sec 8.5 arc sec 12 arc sec 14.5 arc sec 16.5 arc sec 19 arc sec 21 arc sec 25 arc sec
    roll 6 arc sec 8.5 arc sec 12 arc sec 14.5 arc sec 16.5 arc sec 19 arc sec 21 arc sec 25 arc sec
    Straightness ±2.5 μm ±4 μm ±6 μm ±8 μm ±9 μm ±10 μm ±12 μm ±14 μm
    resolution 100nm
    Maximum acceleration 2m/s
    maximum speed 2g
    Maximum horizontal load 45 kg
    Maximum radial load 45 kg
    Continuous thrust 104 N
    Peak thrust 576 N
    Minimum step quantity 75 nm
    Platform quality 8 kg 9.7 kg 11.4 kg 13.1 kg 15.5 kg 18.1 kg 20.4 kg 22.7 kg
    Platform material Aluminium
    mean time between failures 20000Hours

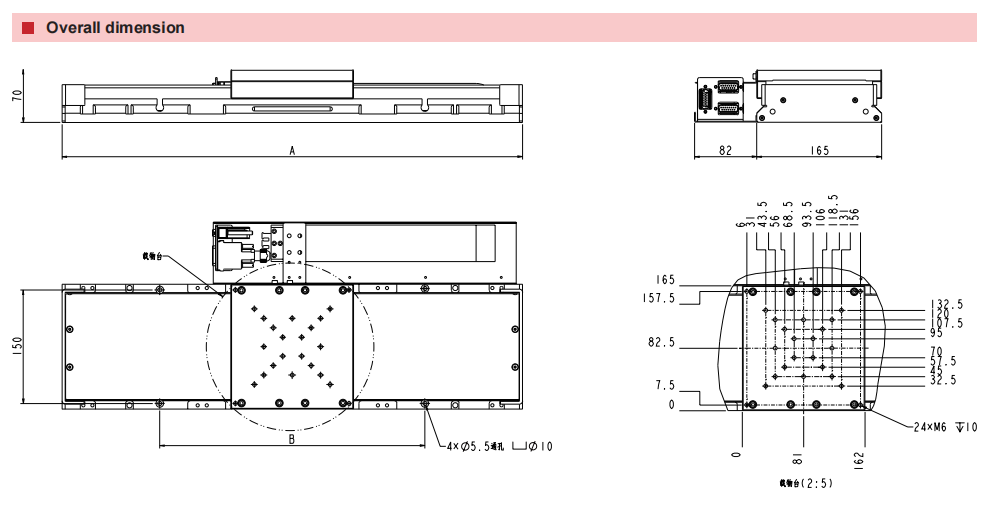

    1744362126389

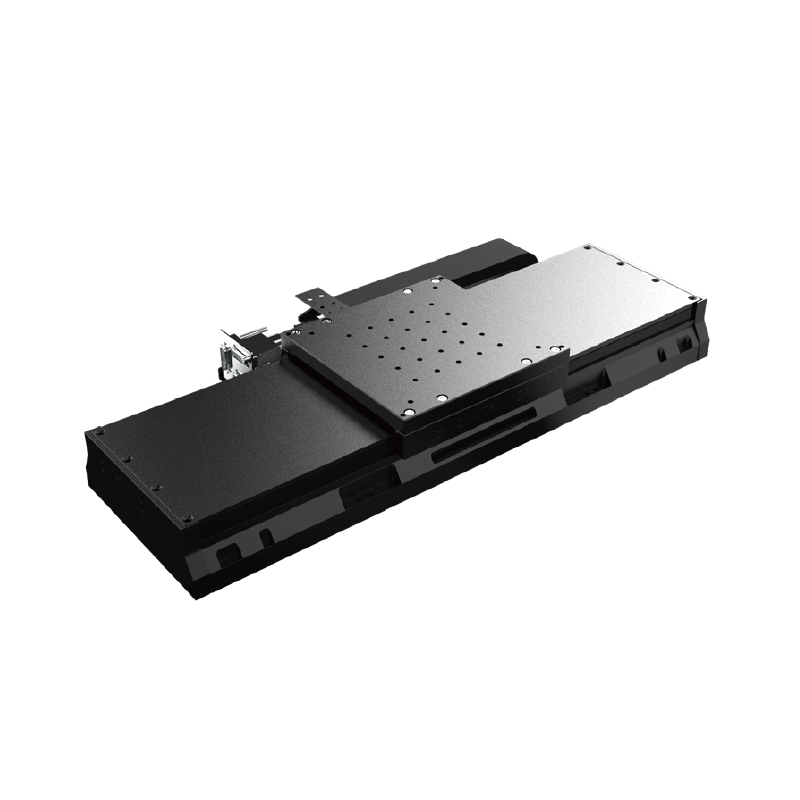

    PM190LS

    PM190LS specification Single axis precision linear platform
    Parameter Table
    Platform model PM190LS-100 PM190LS-200 PM190LS-300 PM190LS-400 PM190LS-500 PM190LS-600 PM190LS-800 PM190LS-1000
    Effective stroke 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm
    positioning accuracy ±1 μm ±1 μm ±1 μm ±1 μm ±1 μm ±1 μm ±1.5 μm ±1.5 μm
    Bi directional repetitive positioning accuracy  ±0.3 μm ±0.4 μm ±0.4 μm ±0.4μm ±0.4 μm ±0.4 μm ±0.5 μm ±0.5 μm
    pitch 6 arc sec 8 arc sec 10.5 arc sec 12 arc sec 14 arc sec 16 arc sec 20 arc sec 24 arc sec
    yaw 6 arc sec 8 arc sec 10.5 arc sec 12 arc sec 14 arc sec 16 arc sec 20 arc sec 24 arc sec
    roll 6 arc sec 8 arc sec 10.5 arc sec 12 arc sec 14 arc sec 16 arc sec 20 arc sec 24 arc sec
    Straightness ±1.5 μm ±2.5 μm ±3.5 μm ±4.5 μm ±5.5 μm ±6.5 μm ±8 μm ±10 μm
    resolution 100nm
    Maximum acceleration 3g
    maximum speed 2m/s
    Maximum horizontal load 45 kg
    Maximum radial load 45 kg
    Continuous thrust 130 N
    Peak thrust 720 N
    Minimum step quantity 75 nm
    Platform quality 14.5 kg 16.8 kg 19.4 kg 21.8 kg 24.2 kg 26.6 kg 29.4 kg 32 kg
    Platform material Aluminium
    mean time between failures 27000Hours

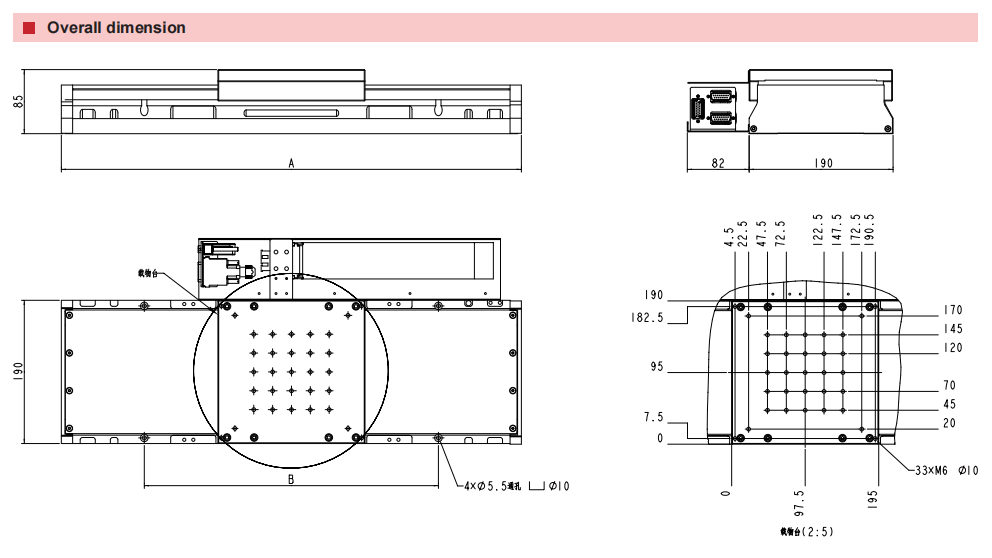

    1744362159133

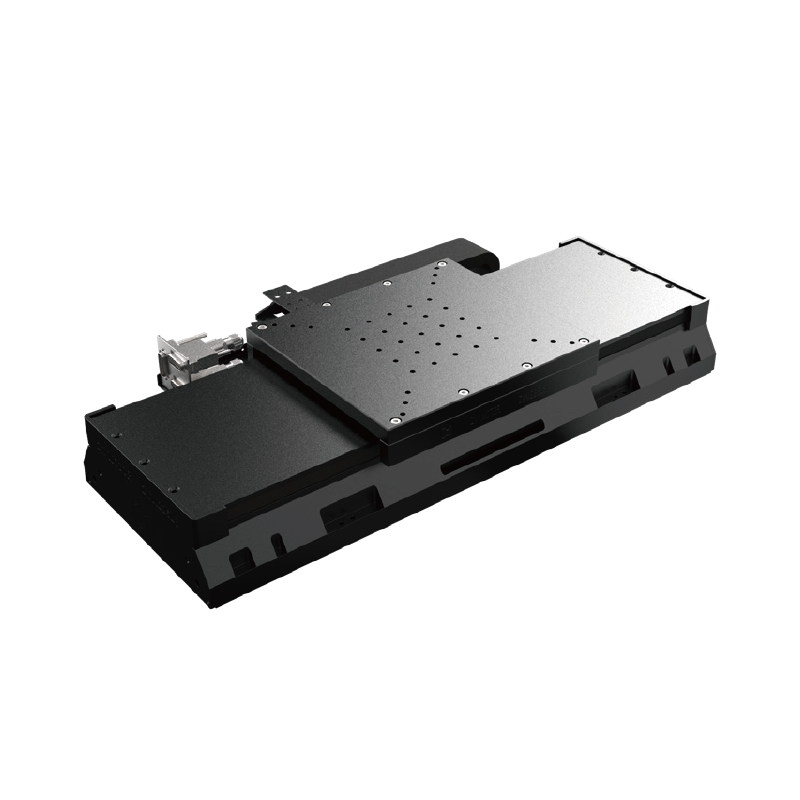

    PM225LS

    PM225LS specification Single axis precision linear platform
    Parameter Table
    Platform model PM225LS-100 PM225LS-200 PM225LS-300 PM225LS-400 PM225LS-500 PM225LS-600 PM225LS-800 PM225LS-1000
    Effective stroke 100mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm
    positioning accuracy ±1 μm ±1 μm ±1 μm ±1 μm ±1 μm ±1 μm ±1.5 μm ±1.5 μm
    Bi directional repetitive positioning accuracy  ±0.3 μm ±0.4 μm ±0.4 μm ±0.4μm ±0.4 μm ±0.4 μm ±0.5 μm ±0.5 μm
    pitch 6 arc sec 8 arc sec 10.5 arc sec 14 arc sec 15 arc sec 18 arc sec 20 arc sec 24 arc sec
    yaw 6 arc sec 8 arc sec 10.5 arc sec 14 arc sec 15 arc sec 18 arc sec 20 arc sec 24 arc sec
    roll 6 arc sec 8 arc sec 10.5 arc sec 14 arc sec 15 arc sec 18 arc sec 20 arc sec 24 arc sec
    Straightness ±2.5 μm ±4 μm ±4.5 μm ±7.5 μm ±8 μm ±9 μm ±10 μm ±12 μm
    resolution 100nm
    Maximum acceleration 3g
    maximum speed 2m/s
    Maximum horizontal load 45 kg
    Maximum radial load 45 kg
    Continuous thrust 204 N
    Peak thrust 1152 N
    Minimum step quantity 100 nm
    Platform quality 14.5 kg 16.8 kg 19.4 kg 21.8 kg 24.2 kg 26.6 kg 29.4 kg 32 kg
    Platform material Aluminium
    mean time between failures 27000Hours

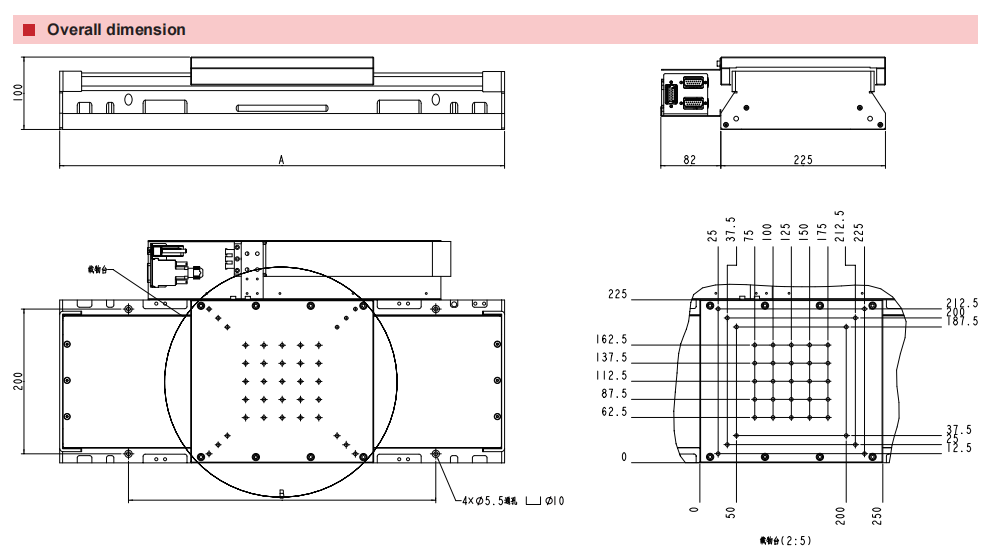

    1744362195629

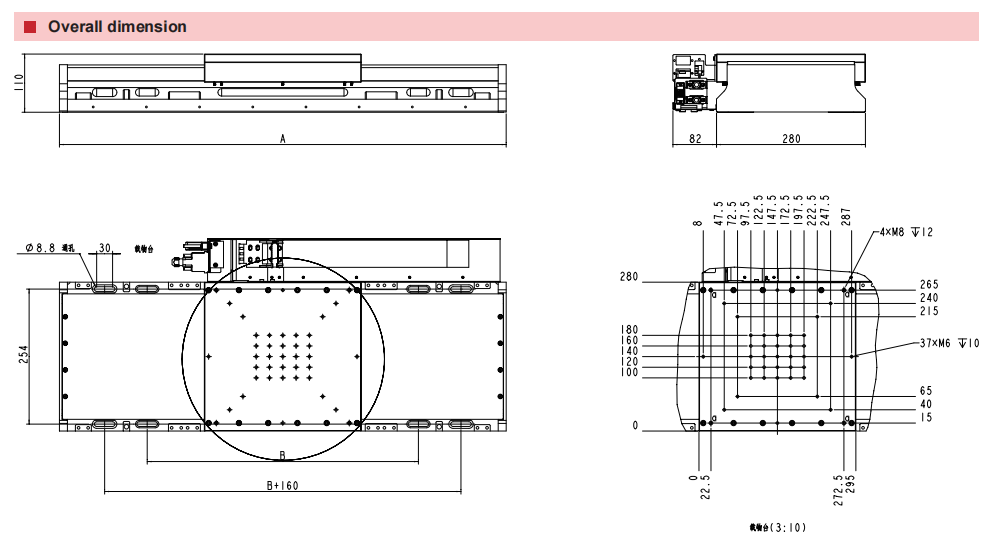

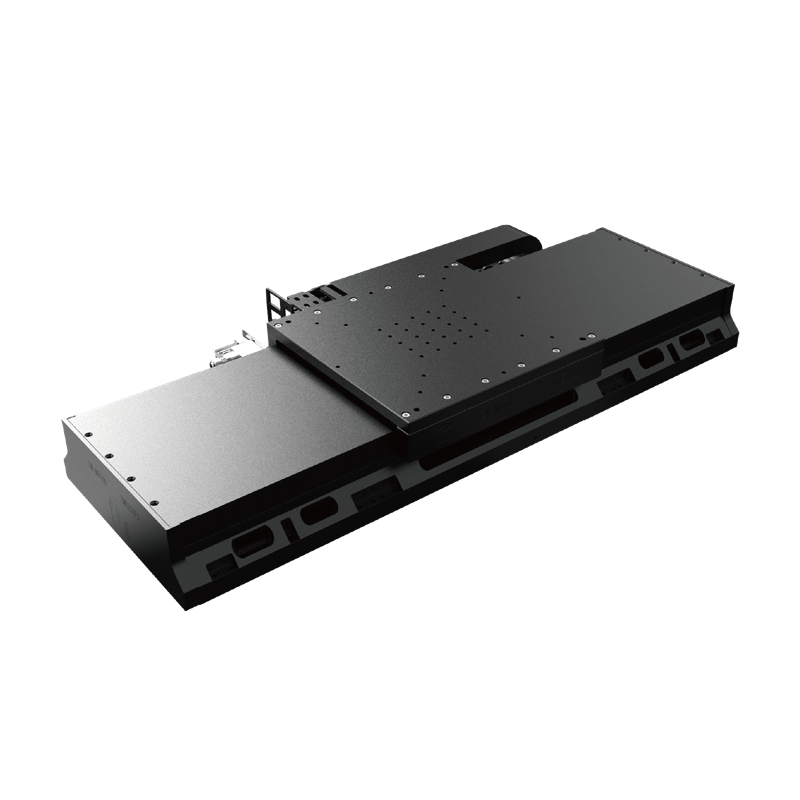

    PM280LS

    PM280LS specification Single axis precision linear platform
    Parameter Table
    Platform model PM280LS-300 PM280LS-400 PM280LS-500 PM280LS-600 PM280LS-700 PM280LS-800
    Effective stroke 300mm 400mm 500mm 600mm 700mm 800mm
    positioning accuracy ±1 μm ±1 μm ±2 μm ±2 μm ±2 μm ±2 μm
    Bi directional repetitive positioning accuracy  ±0.5 μm ±0.5 μm ±0.6 μm ±0.6μm ±0.6 μm ±0.8 μm
    pitch 12 arc sec 16 arc sec 18 arc sec 20 arc sec 22 arc sec 25 arc sec
    yaw 12 arc sec 16 arc sec 18 arc sec 20 arc sec 22 arc sec 25 arc sec
    roll 12 arc sec 16 arc sec 18 arc sec 20 arc sec 22 arc sec 25 arc sec
    Straightness ±4 μm ±4 μm ±6 μm ±6.5 μm ±7 μm ±8 μm
    resolution 100nm
    Maximum acceleration 3g
    maximum speed 2m/s
    Maximum horizontal load 150 kg
    Maximum radial load 150 kg
    Continuous thrust 255 N
    Peak thrust 1440 N
    Minimum step quantity 200 nm
    Platform quality 55 kg 60 kg 65 kg 71 kg 76 kg 81 kg
    Platform material Aluminium
    mean time between failures 27000Hours
    1744362303236
