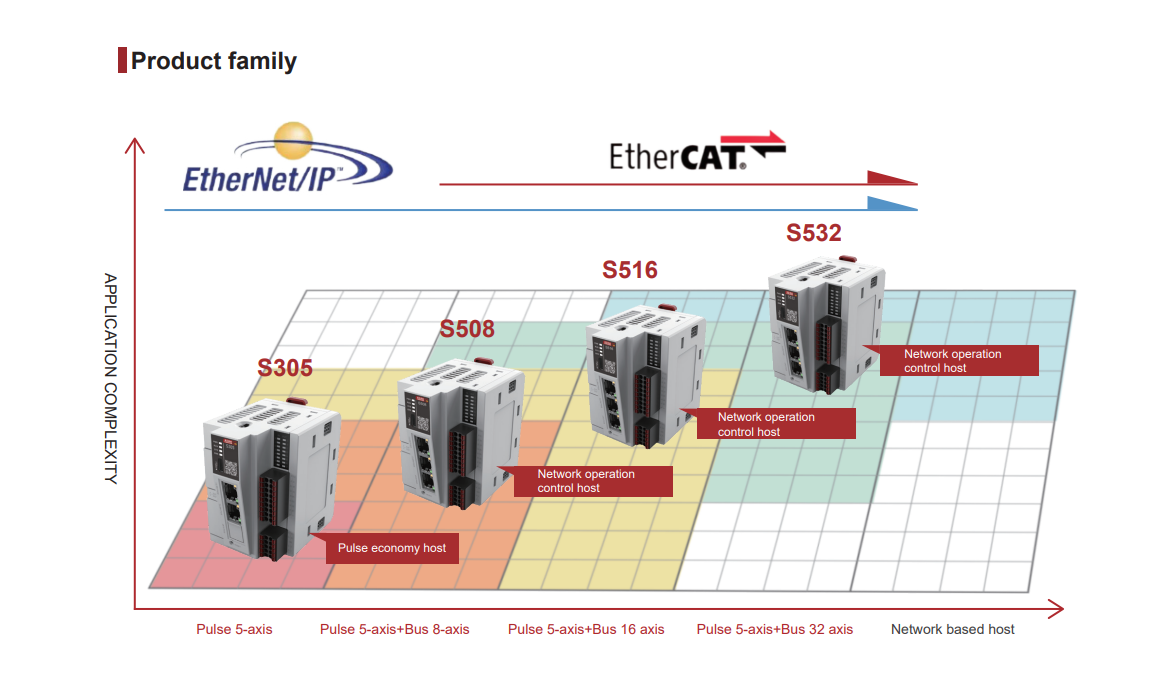

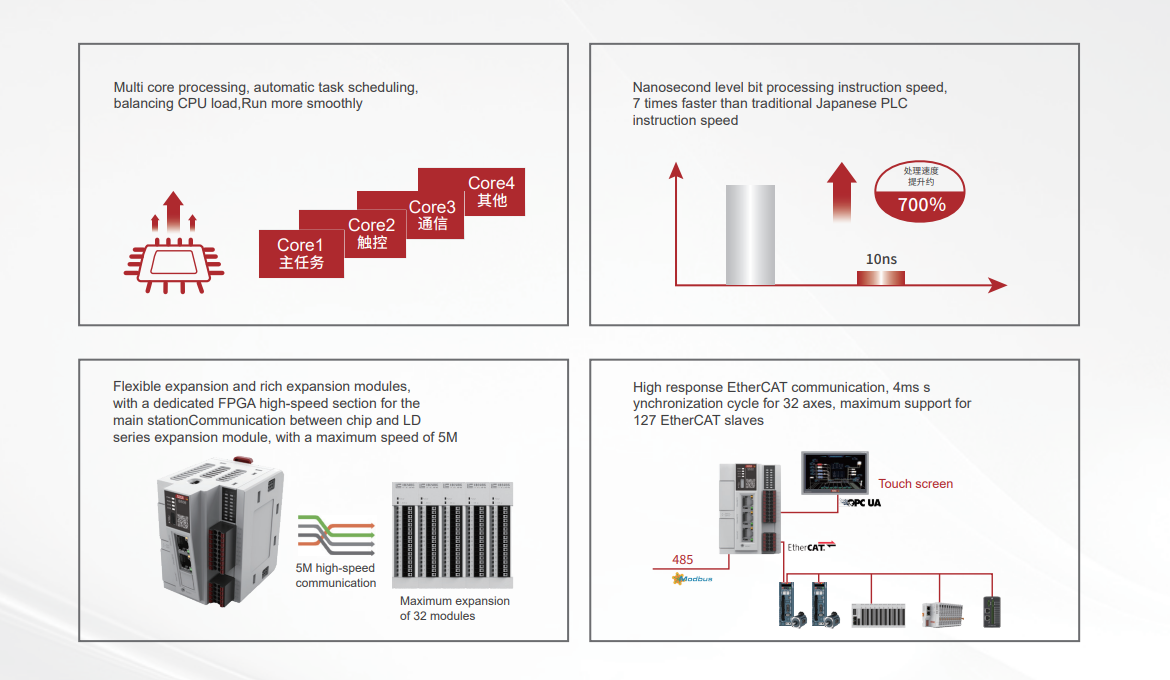

Super Functional S Series Small PLC
Specification parameters

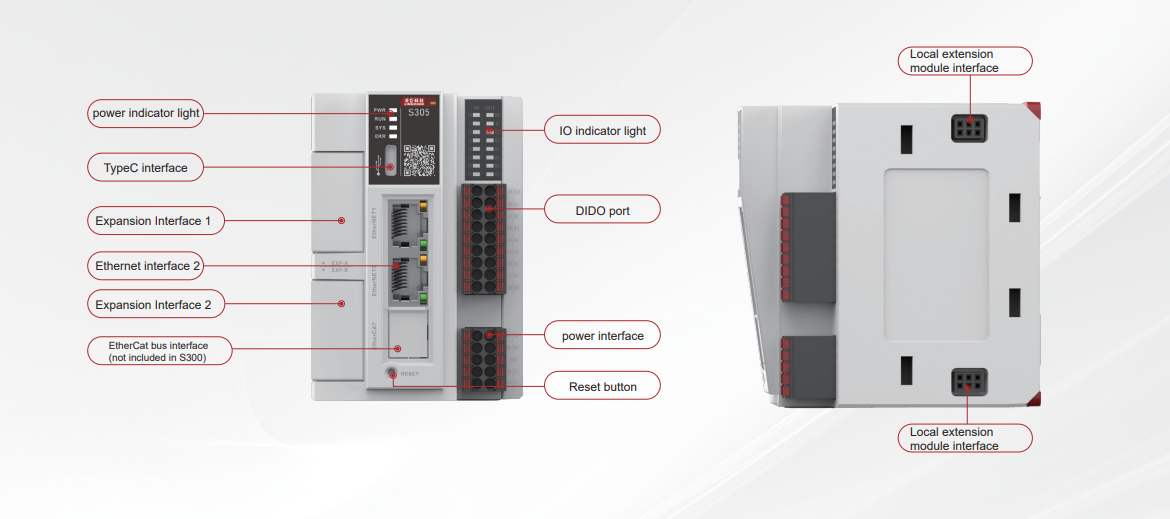

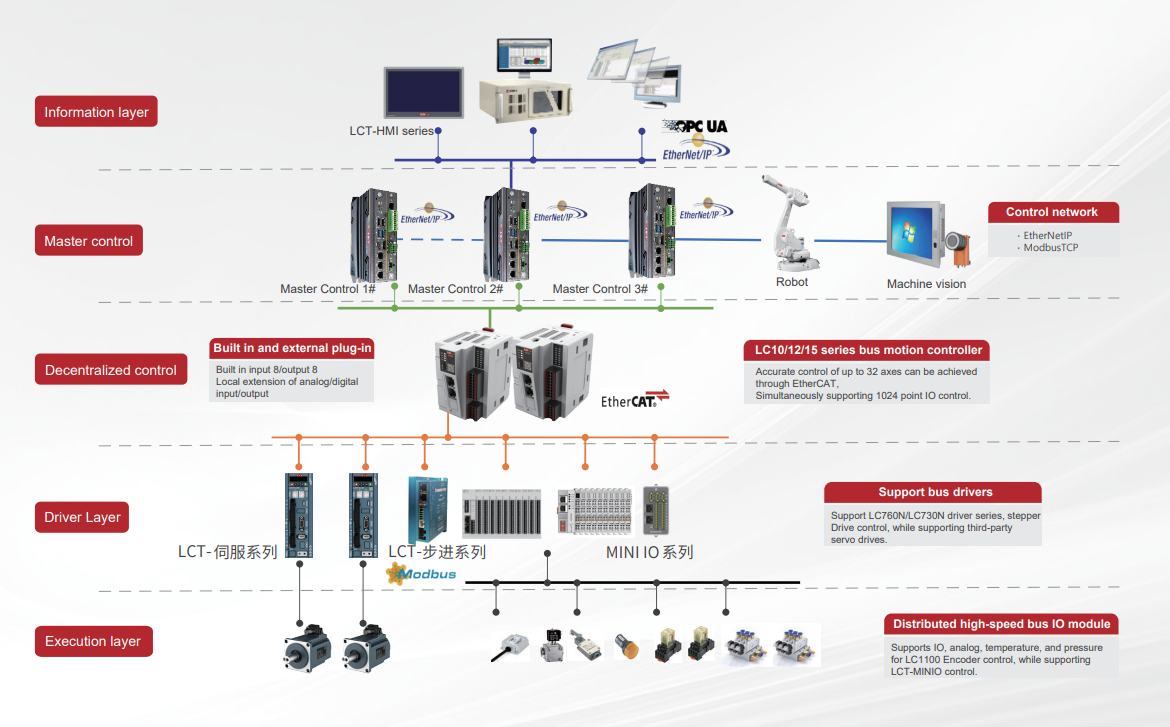

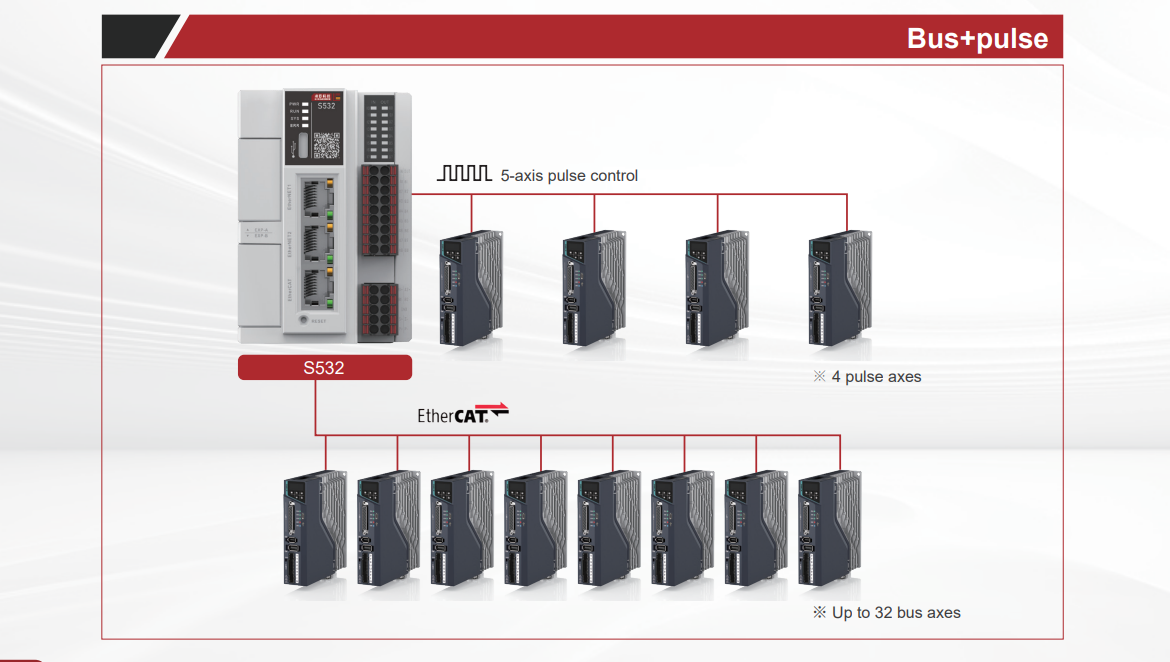

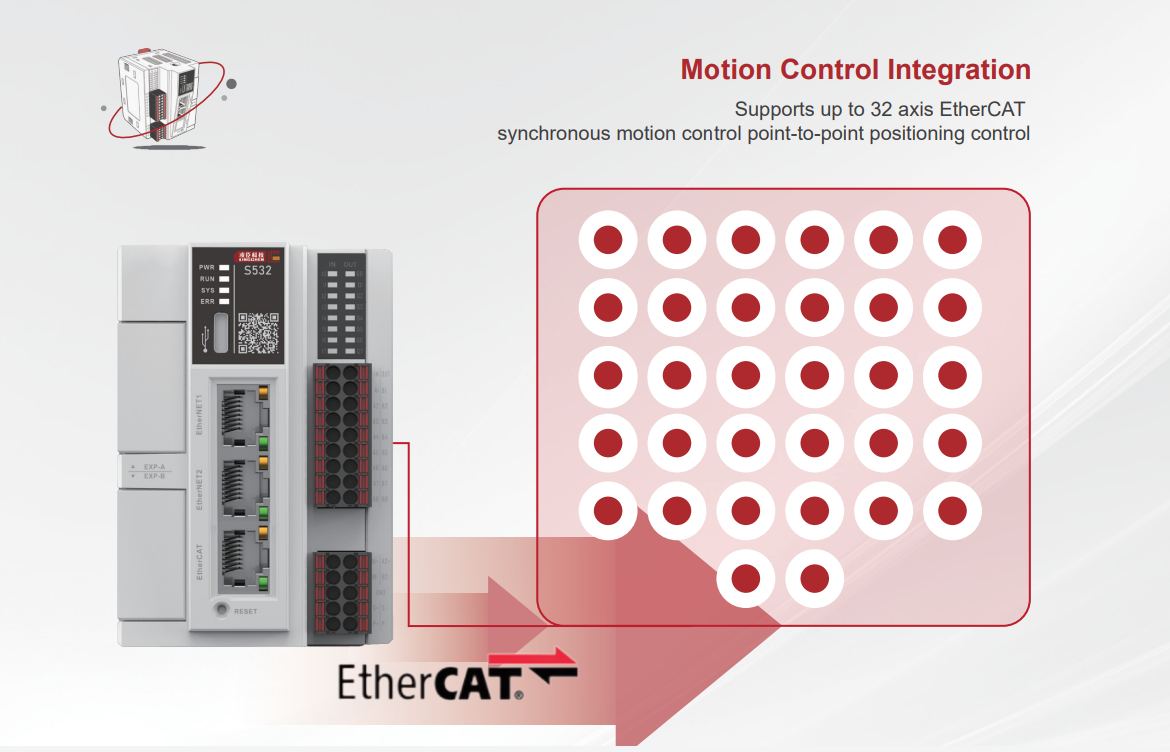

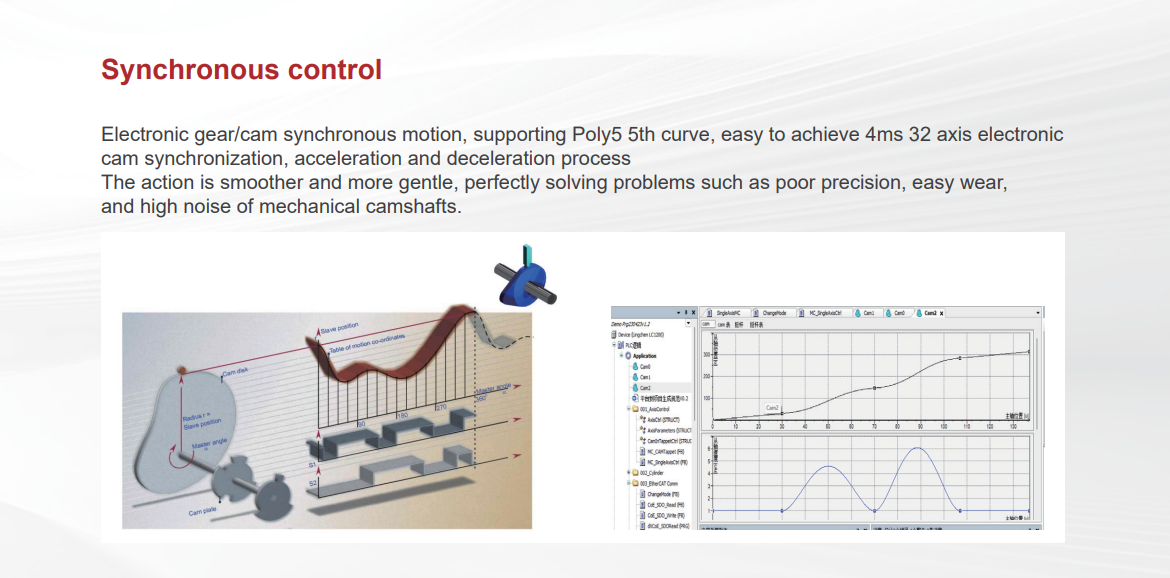

| PLC S Series specification | ||||||
| Product model | S305-0808TN | S508-0808TN | S516-0808TN | S532-0808TN | ||
| Input power | DC 24V+ 10%,1A, supports short circuit/reverse connection protection | |||||
| Ontology I/O | 8 inputs (source/drain), 8 outputs (drain) | |||||
| Data/program storage capacity | 40M program capacity, 20M data capacity (512K Byte power down hold space) | |||||
| Instruction processing speed |
Bit processing instruction | 9.9ns | ||||
| Word processing instruction | 14.3ns | |||||
| Four operations on integers(average) |
16.2ns | |||||
| RJ45 port | EtherNet | EtherNet * 2 (dual lP, independent network end) | ||||
| EtherCAT | EtherCAT*1 | |||||
| Number of serial ports | RS485 * 2 (built-in with 2 channels)/The left expansion card can expand RS485 * 1/RS232 *1 | |||||
| EtherCAT Bus specifications |
EtherCAT axis count | Not supported | 8 bus axis (excluding pulse axis) | 16 bus axis (excluding pulse axis) | 32 bus axis (excluding pulse axis） | |
| EtherCAT Slave | Not supported | Supports up to 127 EtherCAT slaves | ||||
| Typical values of communication cycle |
Not supported | 500us cycle 4-axis/4ms cycle 32 axis synchronization | ||||

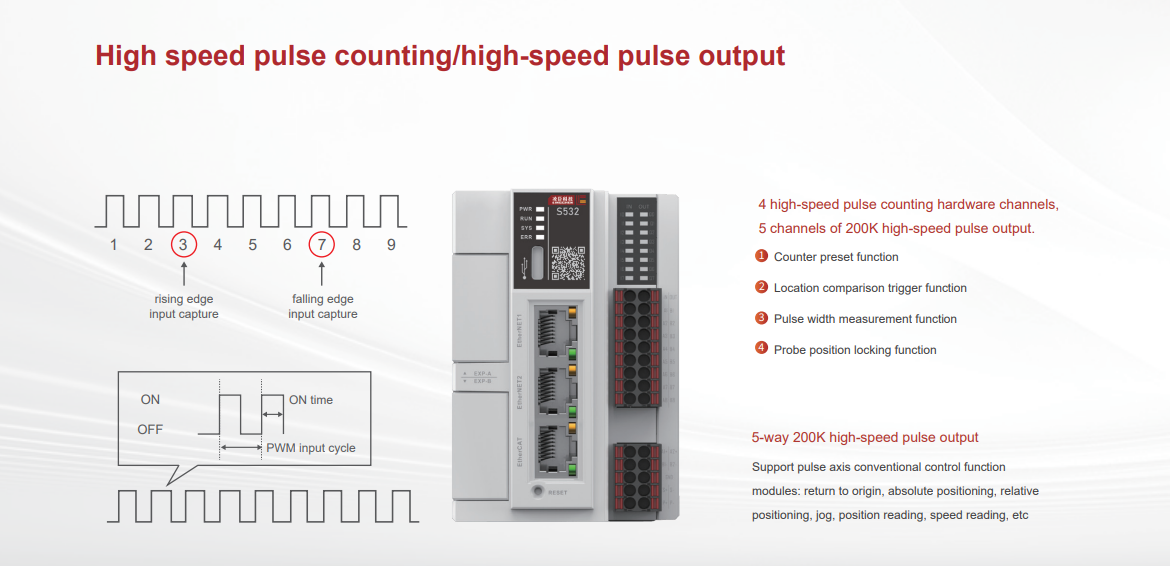

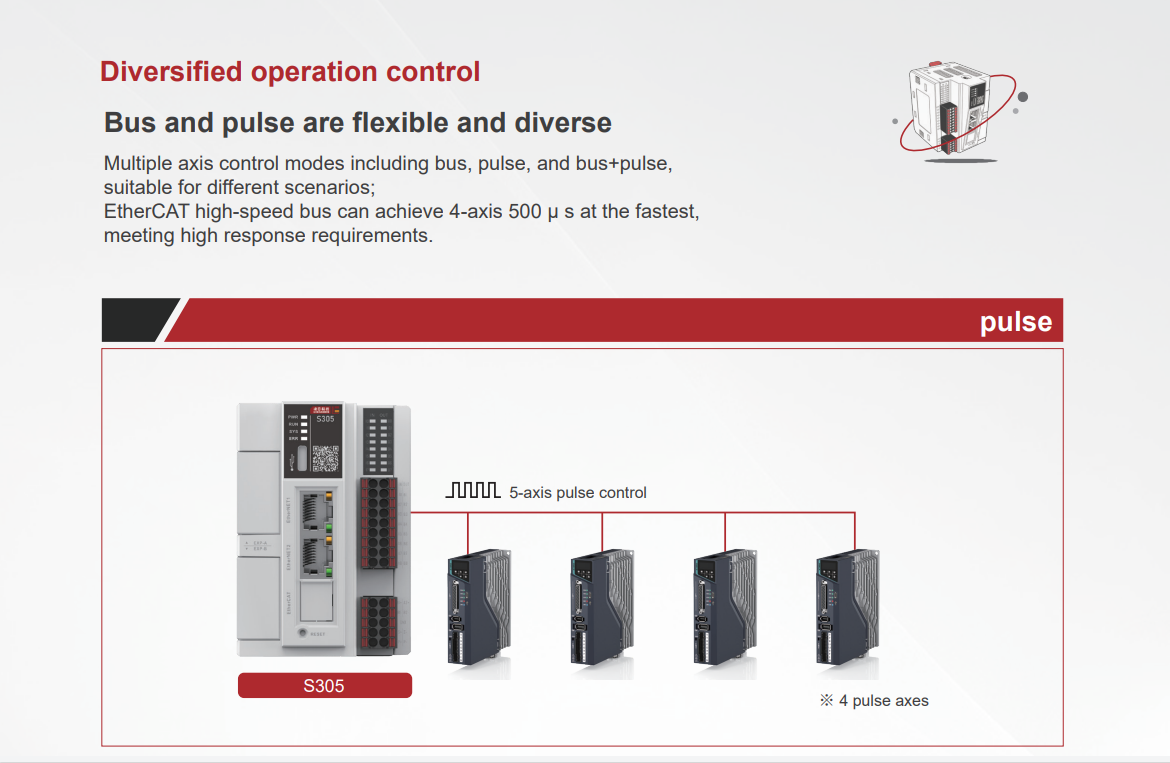

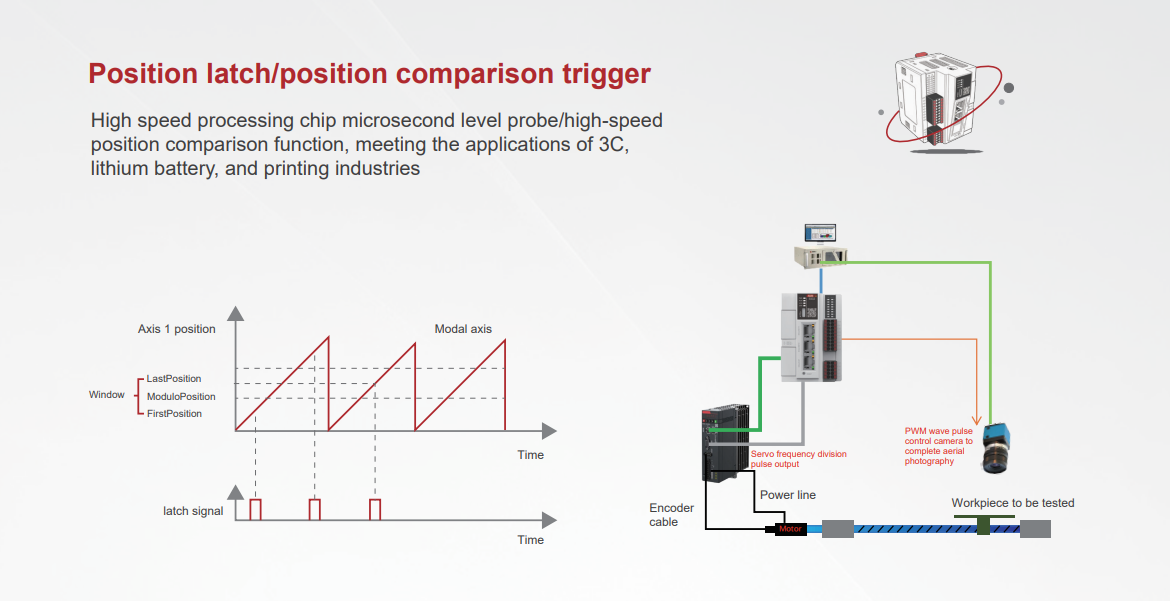

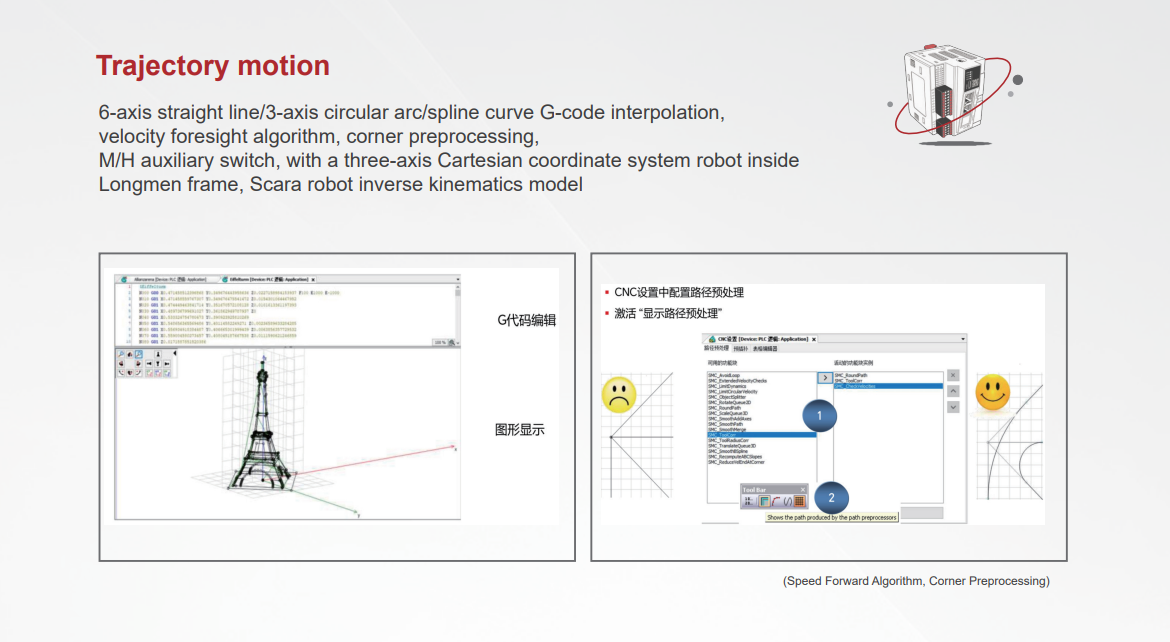

| High speed IO | High speed input | Supports pulse input, up to 4 channels, (counting encoder axis)/8 channels 200k, supports AB phase, pulse+direction CW/Ccw Single phase addition and subtraction counting/two-phase two input. |
||||
| High speed output | Supports up to 5 channels of pulse output (4 pulse motion axes are recommended, with unified instructions with the bus axis /8 channels of 200K,supporting AB phase, pulse+direction CW/CCW, Supports PWM pulse width modulation (4 channels). |
|||||
| Other functions | Position comparison trigger/position latch/pulse width measurement. | |||||
| Scalability | Expand lO module expansion card |
The main body can expand up to 32 LD series IO modules | ||||
| Support SD card download of applications | ||||||
| Other interfaces | Host power supply/firmware debugging | |||||
| Engineering configuration software | LCControlStudio (standard lEC 61131-3) | |||||
