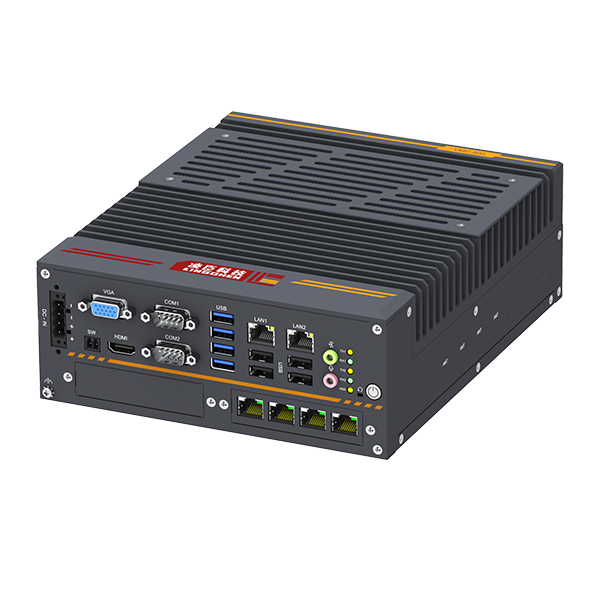

VMC-1000F Series High-Performance Embedded Industrial PC
Product Features

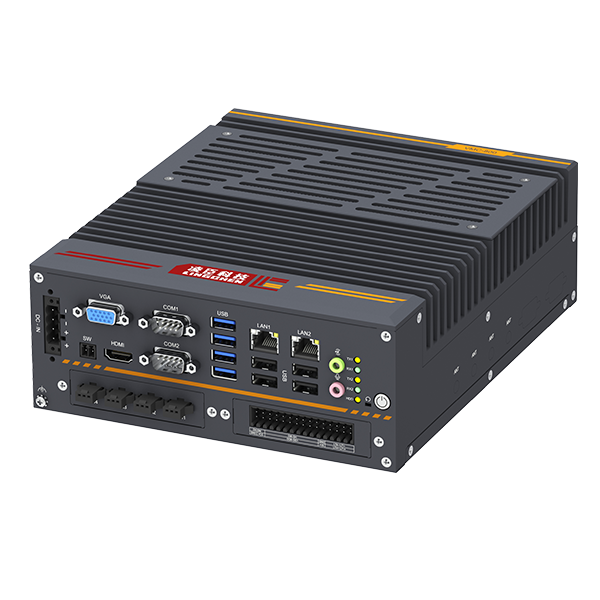

The VMC-1000F series supports Intel® 10th/11th Generation Core™ i3/i5/i7/i9, Pentium®, and Celeron® LGA1200 series processors with a TDP of 65W. It supports 2 DDR4 SO-DIMM memory slots, dual display output via HDMI and VGA, 6 LAN ports (4 of which support PoE), up to 6 COM ports, 7 USB ports, and multiple expansion interfaces. The VMC-1000FLD supports 16-bit DIO and features four integrated constant-voltage light source interfaces, enabling control of light source on/off, brightness, and triggering, with support for 19–24V input voltage. This product is suitable for use in various industries, including 3C, lithium-ion batteries, and semiconductors.
Specification parameters
| VMC-1000F specification | |
| System | |
| Processor | Intel®10th/11th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1200，65W |
| Chipset | H420E |
| Memory | 2x DDR4 SO-DIMM 2400/2666/2933 MHz memory slots, up to 64 GB |
| Graphics | Integrated graphics |
| Storage | 1xM.2 M-Key 2242/2280 SSD(PCleX1)，2xSATA 3.0 HDD/SSD |
| Operating System | Windows 10, Linux |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| External Interfaces | |
| Ethernet Port | 1x RJ45 Intel® PCI-E LAN for 10/100/1000 Mbps l219-V 1x RJ45 Intel® PCI-E LAN for 10/100/1000 Mbps l210AT 4x Intel® I210AT(max TDP 15W POE） |
| Display | 1x HDMI: Maximum resolution 4096x2160@60Hz 1x VGA: Maximum resolution 1920x1200@60Hz |
| Audio | 1x Audio (Line-out & Mic-in) combo port |
| Serial Port | 1x RS232/422/485, 1x RS232; expandable to 4 RS232 ports |
| USB | 4x USB3.2，2xUSB2.0 |
| Indicator Lights | 1x HDD LED |
| Buttons | 1x Power Button(with LED)，1x Reset Button |
| Remote Switch | 1x Remote ON-OFF |
| DIO | 16-bit DIO (isolation voltage 3750 Vrms), DO channel maximum current 500 mA (supported by VMC-1000FLD) |
| Lighting Control | 4 light sources, 24 V, max 120 W, maximum current per channel 2.5 A, maximum current for all 4 channels 5 A (supported by VMC-1000FLD) |
| Power Connector | 1x DCIN 4-pin WTB Phoenix connector |
| Internal Interface | |
| Expansion Ports | 1x Mini-PCIe slot (USB 2.0, supports 4G modules/PCIe x1/SATA 3.0) 1x M.2 M-Key 2242/2280 slot (PCIe x1) 1x M.2 E-Key 2230 slot (PCIe x1/USB 2.0) |
| USB | 1x USB 2.0 (Type-A), 2x USB 2.0 (1-pin header to 2 ports) |
| Serial Port | 1x RS232/422/485 Pin header，5xRS232 Pin header |
| GPIO | 1x8Bit GPIO |
| SATA | 2xSATA 3.0 |
| Fan Connector | 1xSYSFAN，1xCPUFAN |
| TPM | TPM 2.0 (optional) |
| Environment | |
| Operating Temperature | -10°C to 50°C, 0.7 m/s, with airflow |
| Storage Temperature | -40℃ ~ 85℃ |
| Humidity | Operating humidity: 5%–95%, non-condensing Storage humidity: 5%–95%, non-condensing |
| Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
| Mechanical Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| Power Supply | |
| Power Input | 1x DCIN 19–24V for main unit power supply |
| Selection Checklist | |
| Model | Extension/Structure (excluding base bracket) |
| VMC-1000F | - / 249×241.5×100mm |
| VMC-1000FLD | 4 light sources + 16-bit DIO /249×241.5×100mm |
