VMC-800 Embedded industrial computers
Product Features

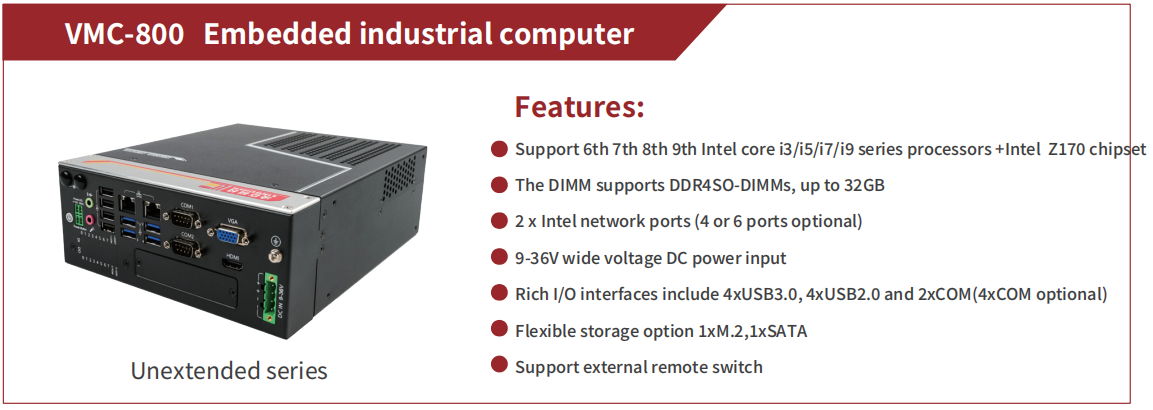

VMC-800 (Unextended series) Embedded industrial computers
Features:
Support 6th 7th 8th 9th Intel core i3/i5/i7/i9 series processors +intel Z170 chipset
The DlMM supports DDR4SO-DIMMs, up to 32GB
2 x Intelnetwork ports (4 or 6 ports optional)
9-36V wide voltage Dc power input
Rich I/O interfaces include 4xUsB3.0,4xUSB2.0 and 2xCOM(4xCOM optional)
Flexible storage option 1xM.2,1xSATA
Support external remote switch

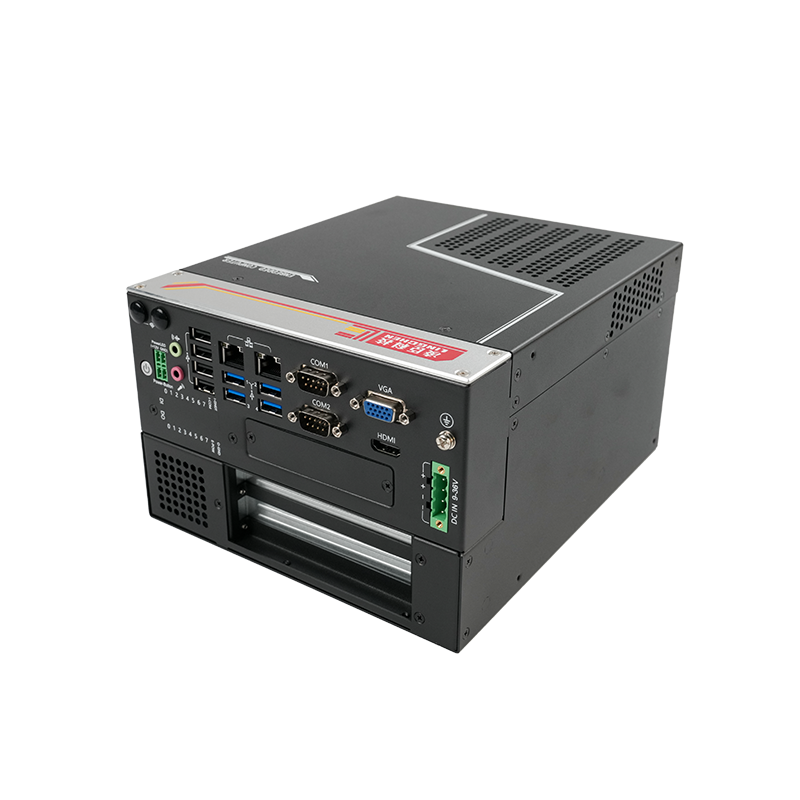

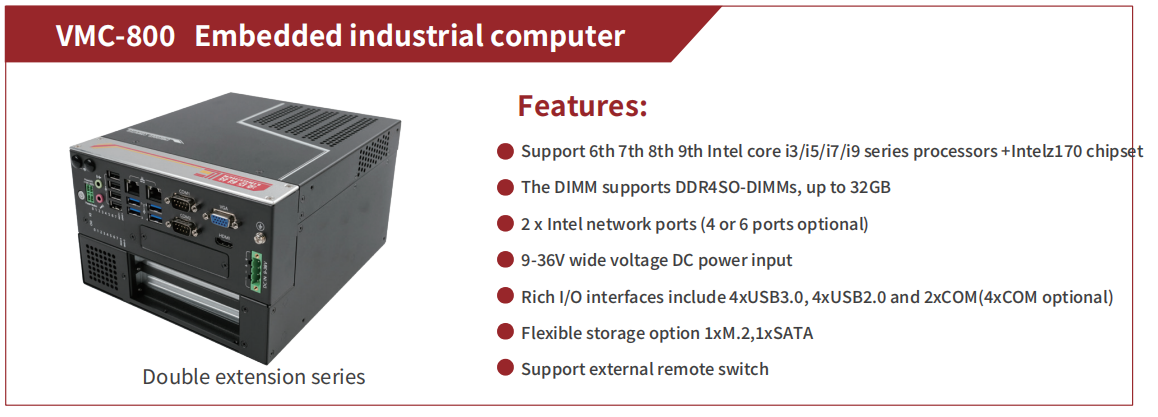

VMC-800(Double extension) Embedded industrial computers
Features:
Support 6th 7th 8th 9th Intel core i3/i5/i7/i9 series processors +intel Z170 chipset
The DlMM supports DDR4SO-DIMMs, up to 32GB
2 x Intelnetwork ports (4 or 6 ports optional)
9-36V wide voltage Dc power input
Rich I/O interfaces include 4xUsB3.0,4xUSB2.0 and 2xCOM(4xCOM optional)
Flexible storage option 1xM.2,1xSATA
Support external remote switch
Specification parameters
| VMC-800 (Unextended series) | |
| Name | specification |
| chipset | Intel Z170 |
| Internal memory | Technology: Dual Channel DDR4@1.2V1886/2666MHZ |
| Internal memoryMax support :32GB | |
| Slot: 2 x.260pin SO-DIMM | |
| graph | Chipset: intel Z170 |
| CRT: VGA | |
| HDMI: HDMI1.4,1920x 1200@60 Hz | |
| Ethernet | LAN1:10/100/1000 Mbps Intel i211 Ethernet card |
| LAN2:10/1001000 Mbps Intel i211 Ethernet card | |
| Audio frequency | Interface :Realtek ALC662 High fidelity audio source input microphone input |
| I/O interface | Serial interface :2xRS-232 port (COM1-COM2),Available as RS422,RS485,COM3-COM4 Optional |
| USB: 4xUSB 3.0 port 4xUSB2.0 | |
| Dl0: 16 bit optical isolation GPlO(8 lN.8 out) Optional | |
| extend | |
| store | HDD: Single 2.5-inch hard drive bracket |
| SSD: 1xM.2(M.2 with PClE signal support) | |
| Software support | Microsoft: Windows 7.windows 8.windows 10 |
| Linux: Ubuntu 12.04 | |
| Powerdemand | Voltage input: 9-36V wide voltage |
| Power adapter: AC to Dc.DC9-36V,180Wor more | |
| machine | Structure: Aluminum + plate gold shell |
| Size:230x192x78mm | |
| environment | Operating temperature:-20-55C |
| Storage temperature: .40-85" C | |
| Working humidity: 95% | |
| VMC-800 (Double extension series) | |
| Name | specification |
| chipset | Intel Z170 |
| Internal memory | Technology: Dual Channel DDR4@1.2V1886/2666MHZ |
| Internal memoryMax support :32GB | |
| Slot: 2 x.260pin SO-DIMM | |
| graph | Chipset: intel Z170 |
| CRT: VGA | |
| HDMI: HDMI1.4,1920x 1200@60 Hz | |
| Ethernet | LAN1:10/100/1000 Mbps Intel i211 Ethernet card |
| LAN2:10/1001000 Mbps Intel i211 Ethernet card | |
| Audio frequency | Interface :Realtek ALC662 High fidelity audio source input microphone input |
| I/O interface | Serial interface :2xRS-232 port (COM1-COM2),Available as RS422,RS485,COM3-COM4 Optional |
| USB: 4xUSB 3.0 port 4xUSB2.0 | |
| Dl0: 16 bit optical isolation GPlO(8 lN.8 out) Optional | |
| extend | Expansion card slot: 2 expansion slots 1PCI+1PClex16 or 1PCIEX1+1PCIEx16 |
| MiniPCIe：1xMini PCIe | |
| store | HDD: Single 2.5-inch hard drive bracket |
| SSD: 1xM.2(M.2 with PClE signal support) | |
| Software support | Microsoft: Windows 7.windows 8.windows 10 |
| Linux: Ubuntu 12.04 | |
| Powerdemand | Voltage input: 9-36V wide voltage |
| Power adapter: AC to Dc.DC9-36V,180Wor more | |
| machine | Structure: Aluminum + plate gold shell |
| Size:230x192x78mm | |
| environment | Operating temperature:-20-55C |
| Storage temperature: .40-85" C | |
| Working humidity: 95% | |
