VMC1200 Industrial Business Embedded Fanless Computer Mini Pc
Product Features
Lingchen Technology launches VMC-1200 series high-performance embedded scalable industrial computer!
With the continuous upgrade of industrial production, defect detection plays an increasingly important role in the product manufacturing process. Defect detection technology utilizes computer vision and related techniques to effectively identify defects or flaws in products through the processing and analysis of product images or visual data. The application of this technology not only improves product quality but also significantly reduces labor costs.
Driven by the ongoing advancements in artificial intelligence technology, online defect detection has been widely applied in production manufacturing and quality control. Intelligent industrial defect detection systems can replace traditional manual inspections, reducing human error and greatly enhancing product quality. Smart process defect detection technology can quickly identify point, line, and surface defects, promoting the intelligent automation development of the manufacturing industry and improving production efficiency for enterprises.
The VMC-1200 series products hold significant application potential in the field of intelligent defect detection. This series is equipped with a rich array of functional interfaces and flexible expandability, including HDMI, LAN, COM, USB, DP++, and more. Additionally, it supports POE and GPU function card expansion, catering to the diverse needs of different customers.
Key features of the VMC-1200 series include:
1.Powerful Processing Capability:
The VMC-1200 series supports the latest 12th, 13th, and 14th generation Intel Core, Pentium, and Celeron processors, with a maximum power consumption of up to 65W, offering over 20% performance improvement compared to 10th generation products. This significant performance boost provides strong support for complex defect detection algorithms.
The VMC-1200 series supports the latest 12th, 13th, and 14th generation Intel Core, Pentium, and Celeron processors, with a maximum power consumption of up to 65W, offering over 20% performance improvement compared to 10th generation products. This significant performance boost provides strong support for complex defect detection algorithms.
2.Flexible I/O Interfaces:
This series offers a variety of I/O interface options, including COM, USB, DP++, and four POE interfaces, allowing customers to configure according to specific needs and ensuring compatibility with existing systems.
This series offers a variety of I/O interface options, including COM, USB, DP++, and four POE interfaces, allowing customers to configure according to specific needs and ensuring compatibility with existing systems.
3.Strong Expandability:

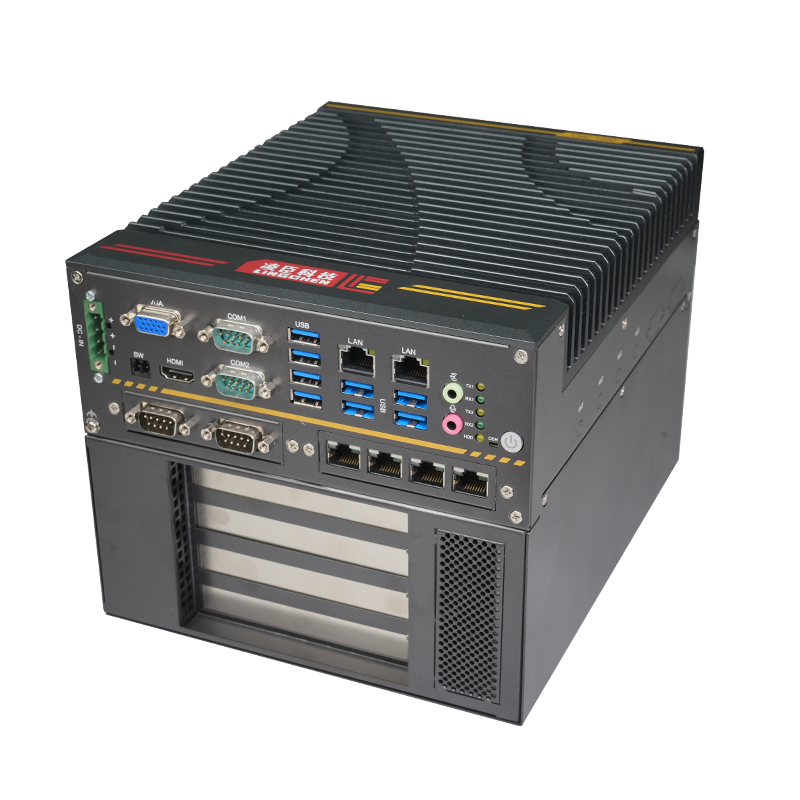

The VMC-1200 series is equipped with PCIe and PCI expansion slots, enabling customers to choose different function cards for flexible combinations. The two-slot expansion supports PCIex16+PCIand PCIex16+PCIex4, while the four-slot expansion supports 3xPCIe and 1xPCI, greatly enhancing the system’s expandability.
The VMC-1200 series is equipped with PCIe and PCI expansion slots, enabling customers to choose different function cards for flexible combinations. The two-slot expansion supports PCIex16+PCIand PCIex16+PCIex4, while the four-slot expansion supports 3xPCIe and 1xPCI, greatly enhancing the system’s expandability.
4.Multi-Platform Options:
The VMC-1200 series is divided into two platforms: H610 and Q670. The Q670 platform not only supports all functions of the H610 but also features high configurations such as 5G, eight USB 3.2 ports, and NVMe, making it suitable for applications with higher performance requirements. The H610 platform focuses on high cost-effectiveness, ideal for customers with limited budgets.
The VMC-1200 series is divided into two platforms: H610 and Q670. The Q670 platform not only supports all functions of the H610 but also features high configurations such as 5G, eight USB 3.2 ports, and NVMe, making it suitable for applications with higher performance requirements. The H610 platform focuses on high cost-effectiveness, ideal for customers with limited budgets.
5.Cooling Design:
The VMC-1200 series offers both fanless and fan-cooled thermal designs. For CPUs with power consumption above 65W, it is recommended to choose products with fan cooling to ensure stable system operation.
The VMC-1200 series offers both fanless and fan-cooled thermal designs. For CPUs with power consumption above 65W, it is recommended to choose products with fan cooling to ensure stable system operation.
6.High-Performance GPU Support:

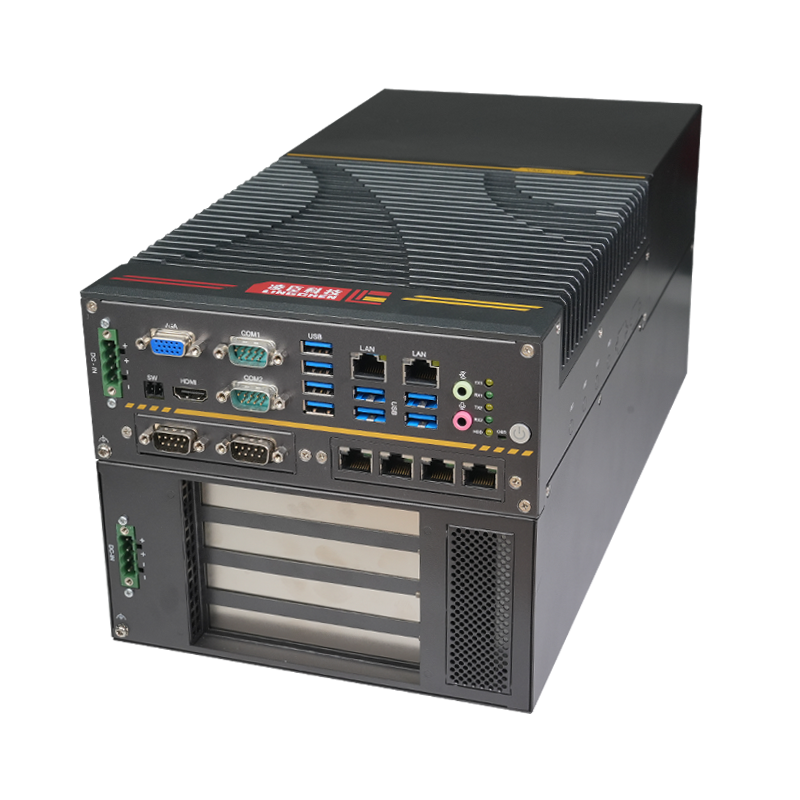

The extended version of the VMC-1200 series can support high-performance GPU cards such as the RTX-4090, providing powerful computing capabilities for applications requiring complex image processing and deep learning.
The extended version of the VMC-1200 series can support high-performance GPU cards such as the RTX-4090, providing powerful computing capabilities for applications requiring complex image processing and deep learning.
In summary, Lingchen Technology’s VMC-1200 series high-performance embedded scalable industrial computer, with its outstanding performance, flexible expandability, and high reliability, is set to play a crucial role in the fields of intelligent defect detection and industrial automation, helping enterprises enhance production efficiency and product quality.
Product parameters
| VMC1200 product specifications | |
| System | |
| Processor | Intel® 12th/13th/14th Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU |
| Chipset | H610 |
| Memory | 2 x DDR5 SODIMM 4800/5200/5600Mhz MHz , Max support 64GB |
| Graphics | CPU integrated graphics |
| Storage | 1 x M-Key M.2 2242/2280（SATA）slot，2 x 2.5" SATA 3.0 HDD/SSD |
| Operating system | Windows 10, Linux |
| Watchdog timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| I/O interface | |
| LAN | 1xRJ45 Intel® PCI-E LAN for 10/100/1000 Mbps I219-V 1xRJ45 Intel® PCI-E LAN for 10/100/1000/2500 Mbps I225/I226-V |
| Display | 1xHDMI：Maximum resolution 4096x2160 @60Hz 1xVGA：Maximum resolution 1920 x 1200 @60Hz |
| 1xDP++(optional) | |
| Audio | 1xAudio(Line-out & Mic-in ) |
| COM | 2xRS232/422/485，4xRS232（expandable） |
| USB | 4xUSB3.2 (Gen1) 4x USB2.0 |
| Indicator light | 1xHDD LED 2xCOM1 LED for Rx1 and Tx1 2xCOM2 LED for Rx1 and Tx1 1xSwitch button |
| Reset | 1xReset button |
| Remote switch | 1xRemote ON-OFF |
| Power | 1xDC IN 4pin phoenix terminal，19~24V，optional 9~36V wide voltage input |
| Internal interface | |
| Extension interfaces | 1xE-Key M.2 2230 slot (PCIe x1/USB2.0)，1x Mini-PCIe slot(PCIe x1/USB2.0/SATA) |
| USB | 1xUSB2.0(Type-A) ，1xUSB2.0 (1 pin header to 2port） |
| COM | 4xRS232 pin header |
| SATA | 2xSATA 3.0 |
| TPM | TPM2.0（optional） |
| Environment | |
| Operating temperature | -10℃ ~ 60℃ 0.7m/s wind flow (65W CPU with industrial SSD, paired with cpufan heatsink) -10℃ ~ 60℃ 0.7m/s wind flow (35W CPU paired with industrial SSD) 0℃ ~ 30℃ 0.7 m/s wind flow (mechanical HDD) |
| Storage temperature | -40℃ ~ 85℃ |
| Humidity | Operation hum: 5%~95%, non-coagulation |
| Storage hum: 5%~95%, non-coagulation | |
| Random vibration | SSD: 5~500Hz, 2Grms operation |
| HDD: 5~500Hz, 1Grms operation | |
| Sinusoidal vibration | 5~500Hz, 2G Non-Operation |
| Mechanical shock | Operation: 10G@11ms |
| Non-operation: 30G@11ms | |
| Mechanism | |
| Dimension | 230*192*77 mm |
| Certification | |
| Certification | CE/FCC |
