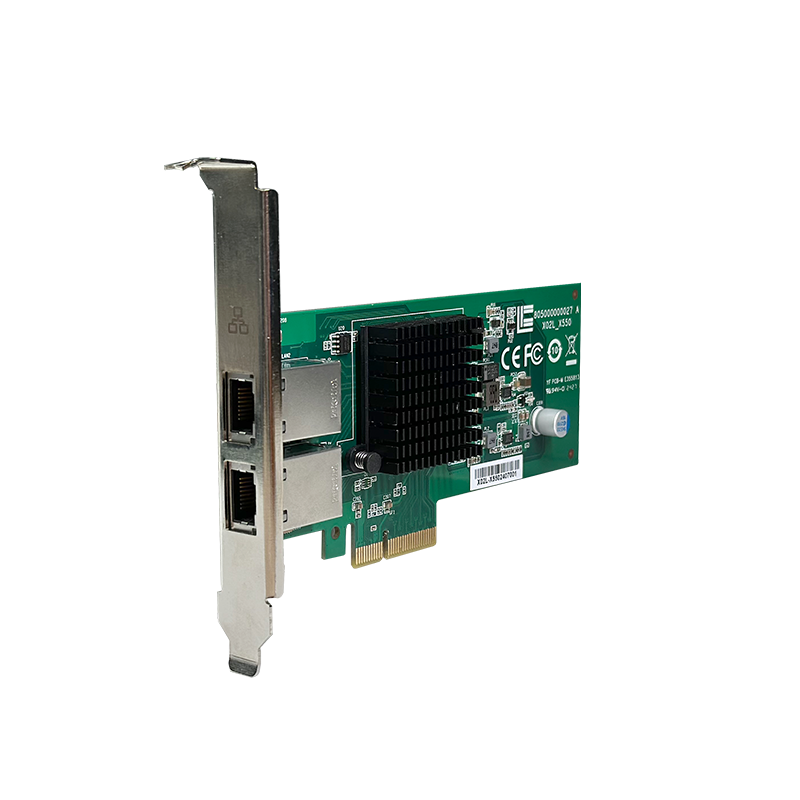

X02L-X550 Industrial Dual Port 10-Gigabit Ethernet Image Acquisition Card
product description
X02L-X550 is a dual port 10 Gigabit PCle x4 Ethernet image acquisition card based on Intel" Ethernet Controller X550-AT2, designed for low-power and low-cost application scenarios, lt can easily handle 10GbE line rate performance, compatible with PCle x8/x16 channels, high bandwidth, high performance, and supports multi port confieurations, This network card is widely used in industrial field visual inspection industrial control computer related products, fast mobile Ethernet data transmission equipment, and also suitable for servers.
Specification parameters
| X02L-X550 product specifications | ||
| System | Port type | 2x RJ45 |
| Ethernet Controller | Intel® X550-AT2 | |
| Interface | PCI express x4, PCIe (Gen3) compatible with PCIe x8/x16 | |
| Speed | 100M/1G/2.5G/5G/10Gbps | |
| Meet a criterion | IEEE-1588 | |
| Indicator light | Speed LED：100M：Off，1G：Orange，10G：Green Link LED：Active connection（Green） Transmit/reveive activity(Blinking Green) |
|
| Power consumption | 13W max (2x10Gb/s active) | |
| Cable requirements | For 10GBASE-T：CAT6a（100 meters）or CAT6（55 meters） For 5Gb/s NBASE-T：CAT6（100 meters） For 2.5Gb/s NBASE-T：CAT5e（100 meters） |
|
| Jumbo frames | Support jumbo frames, up to 15.5kb | |
| Power input | PCIe slot | |
| Operating system | Win7/Win10/Linux | |
| Environmental | Operation temperature | 0℃ ~ 60℃ |
| Storage temperature | -40℃ ~ 85℃ | |
| Humidity | Operation hum: 95%@40℃, non-coagulation Storage hum: 95%@60℃，non-coagulation |
|
| Mechanical | Size | 149*68.9mm（without bracket） |
| Certification | Safety certification | CE, FCC |
